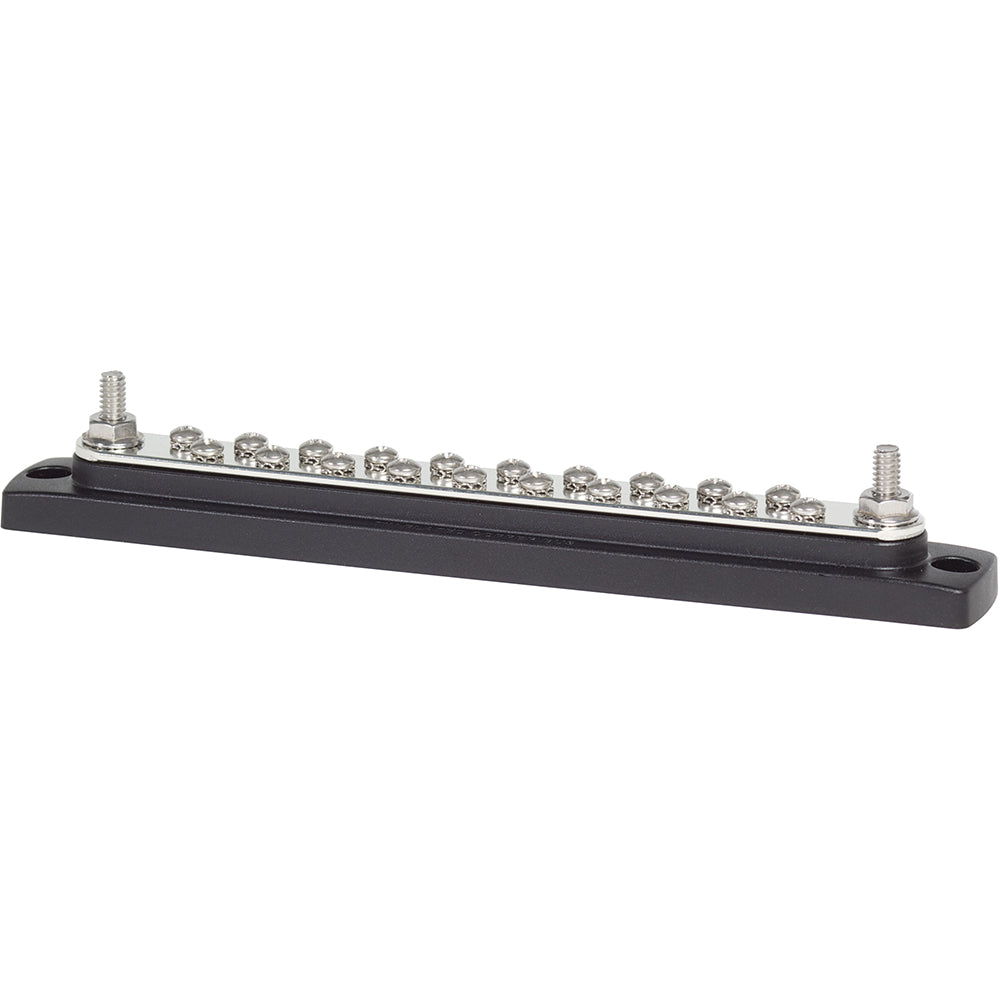

Blue Sea Systems 2302 Common BusBar, 20 Gang, 150A – UL 94-V0 Rated

Ensure efficient and reliable electrical distribution for your marine and automotive systems with the Blue Sea Systems 2302 Common BusBar. Engineered to consolidate multiple wires or feed multiple circuits, this busbar provides clean, dependable power distribution for positive, negative, or AC ground circuits. Its robust construction, featuring a tin-plated copper busbar and insert-molded stainless steel studs, ensures maximum conductivity and corrosion resistance in demanding environments. Upgrade your electrical system for enhanced safety and performance.

Key Benefits & Specifications:

• High Voltage Capacity: Rated for 300V AC and 48V DC maximum voltage, supporting diverse electrical systems with robust power handling.
• Continuous Current Rating: Handles continuous loads of 130A AC and 150A DC, ideal for demanding marine and DC applications.
• Ample Connection Points: Features 20 x #8-32 screw terminals for multiple smaller gauge circuits.
• Robust Stud Terminals: Includes 2 x 1/4"-20 terminal studs for secure connection of larger gauge wires.
• Corrosion-Resistant Busbar: Constructed with tin-plated copper (CDA 110 / UNS 11000) for maximum conductivity and superior corrosion resistance, critical for harsh marine environments.
• Enhanced Safety Base: Built with a UL 94-V0 rated, glass-reinforced thermoplastic base for exceptional insulation and fire resistance.
• Secure Connections: Insert-molded stainless steel studs allow for high-torque connections, preventing loosening and reducing resistance.
• Vibration-Proof Terminals: Stainless steel screws include captive split ring and star-type lock washers to maintain tight connections even in high-vibration environments.
• Prevent Accidental Shorts: Recessed mounting holes are designed to prevent accidental shorts to aluminum or steel mounting surfaces, adding an extra layer of safety.

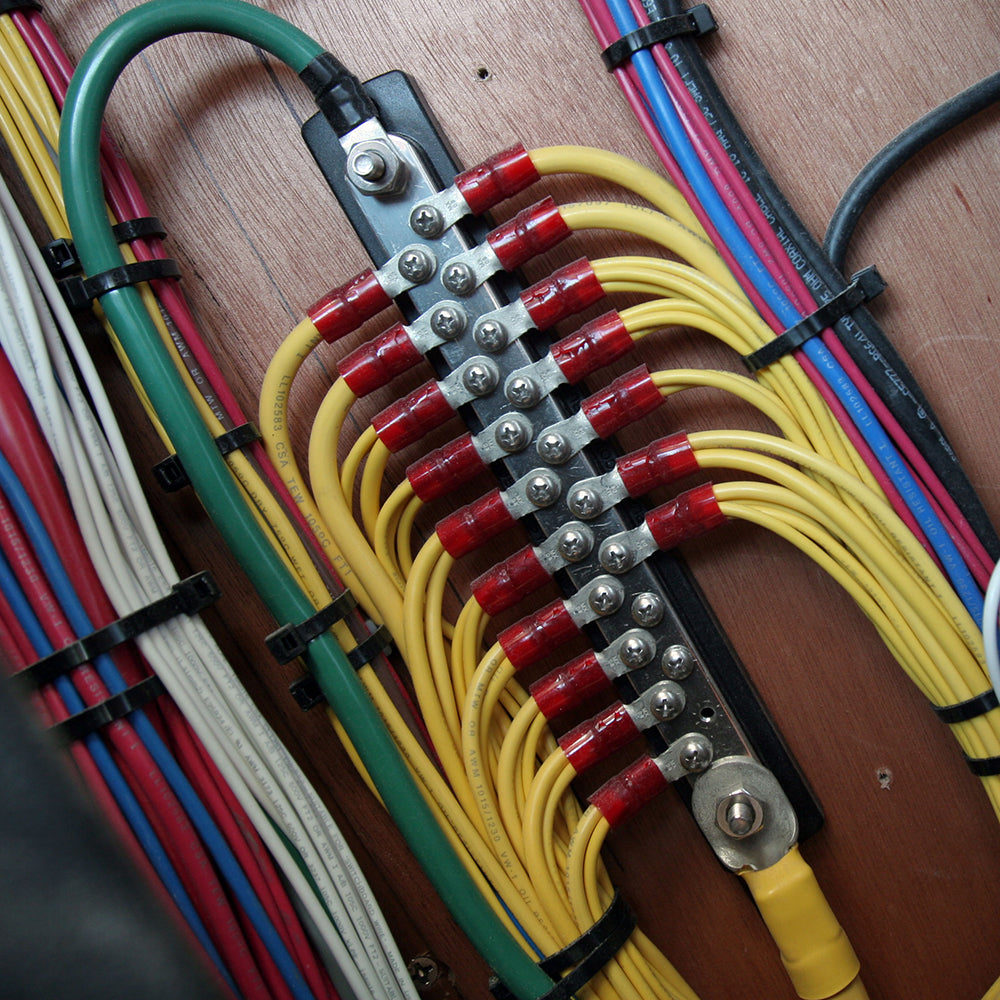

Recommended Applications: Ideal for consolidating electrical circuits in boats, RVs, trucks, and other DC power systems.
