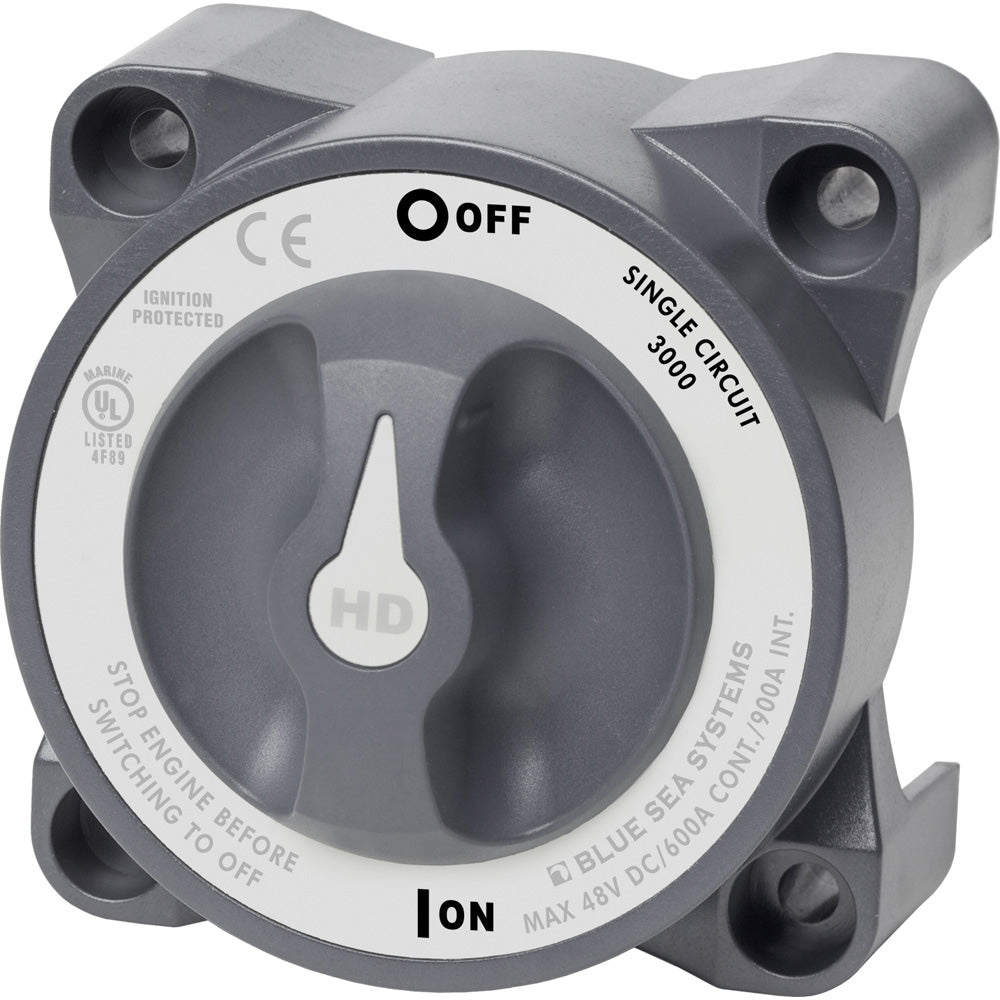

Blue Sea Systems HD-Series Heavy Duty ON-OFF Battery Switch, 600A Continuous

Ensure reliable power control and enhance safety for your marine system with the Blue Sea Systems HD-Series Heavy Duty ON-OFF Battery Switch. Engineered for demanding marine environments, this robust switch provides a dependable solution for isolating a single battery from a single load group. Its ignition-protected design makes it safe for installation aboard gasoline-powered boats, while adherence to ABYC standards guarantees professional-grade performance and safety. Upgrade your vessel's electrical system today for smarter, safer power management.

Key Benefits & Specifications:

• High Continuous Rating: Delivers a 600 Ampere continuous rating, providing robust power for large diesel environments and high-current applications.
• Superior Cable Capacity: Accepts two 4/0 AWG (95mm²) battery cables per terminal, ensuring high-capacity wiring and efficient power transfer.
• Enhanced Safety: Ignition protected, making it safe for installation aboard gasoline-powered boats by preventing ignition of flammable vapors.
• Industry Compliant: Meets American Boat and Yacht Council (ABYC) requirements for battery switches, guaranteeing adherence to industry safety and performance standards.
• Tactile Feedback: Features tactile textures that indicate knob position by feel, allowing for confident operation even in low-light conditions.

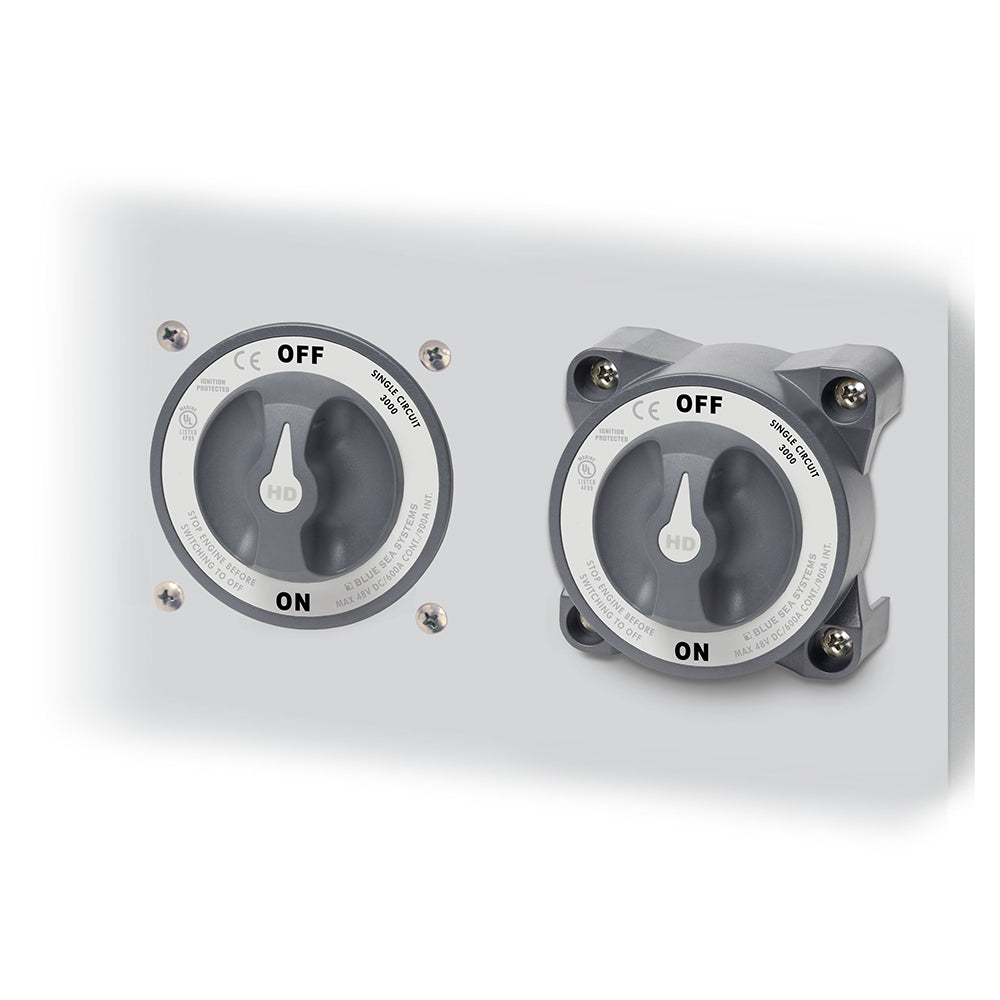

• Versatile Mounting: Case design allows for both surface or rear panel mounting, offering flexible installation options to suit various vessel configurations.

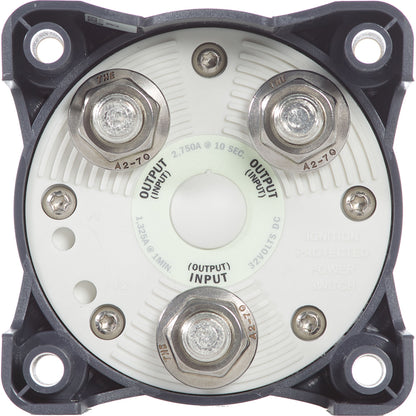

• Durable Construction: Equipped with 1/2-inch (M12) tin-plated copper studs for maximum conductivity and corrosion resistance in marine environments.
• Optimized Voltage: Designed for a maximum voltage of 32V DC, ideal for common marine 12V and 24V DC systems.
• High Intermittent Rating: Boasts a 900 Ampere intermittent rating (5 minutes) to handle temporary high-current demands for starting or heavy loads.
• Robust Cranking Power: Offers a 2750 Ampere cranking rating (10 seconds) to provide ample power for engine starting.
• Marine-Grade Protection: IP66 rated, providing protection against powerful water jets to ensure durability in harsh marine conditions.

Compatibility & Pairings:

• Designed to fit all Perko and Guest low amperage battery switch hole patterns for straightforward replacement or upgrade.
