Blue Sea Systems SMS Panel Enclosure, 6 Circuit Blank, ABYC E-11 Compliant

Blue Sea Systems SMS Panel Enclosure, 6 Circuit Blank, ABYC E-11 Compliant

SKUCT-105541

$202.66
$202.66
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Out of stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

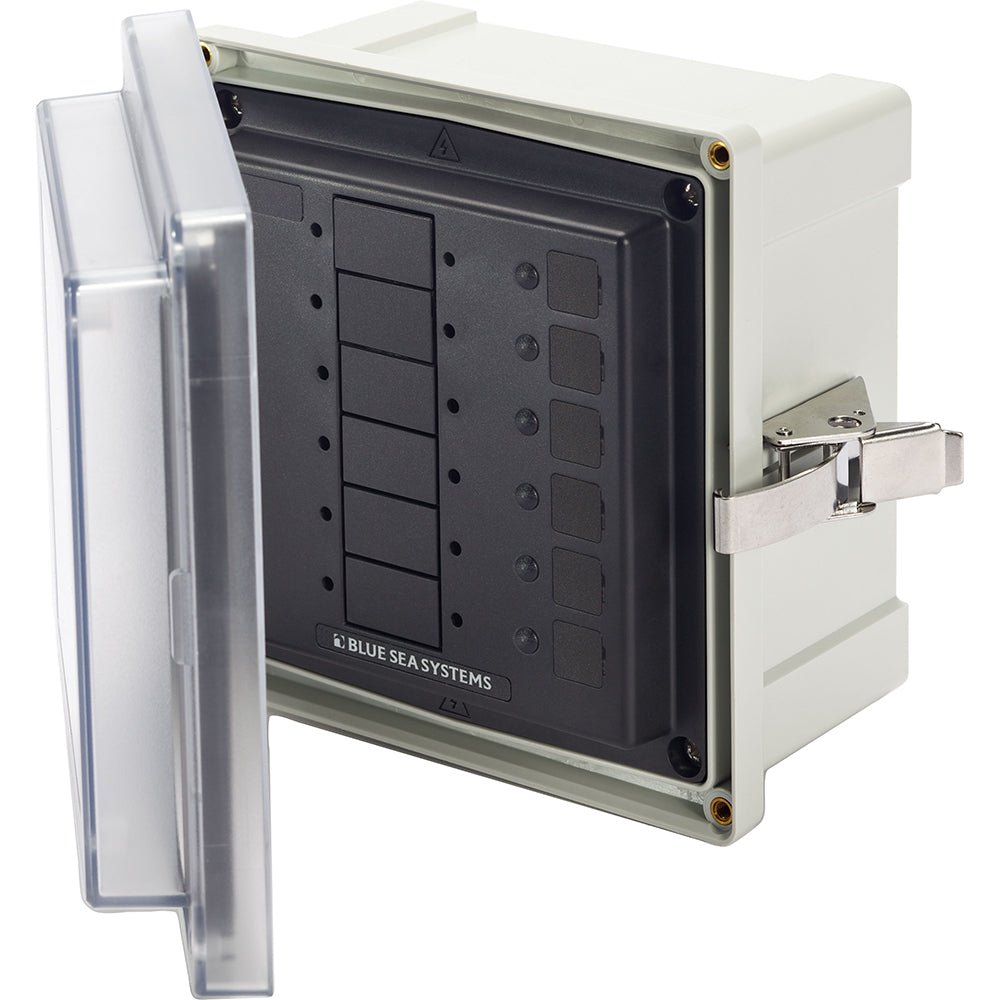

Protect your marine electrical systems with the Blue Sea Systems SMS Panel Enclosure. Engineered for durability and customization, this enclosure provides a robust, waterproof housing for main circuit breakers and large frame devices. It meets ABYC E-11 standards when properly installed with an ELCI Main circuit breaker, ensuring safety and compliance for your vessel. Upgrade your electrical distribution with confidence and achieve reliable performance.

In the Box:

  • Blue Sea Systems 3113 SMS Enclosure
  • Mounting hardware
  • Instruction manual

Key Benefits & Features:

  • ABYC E-11 Compliant: Ensures enhanced safety and meets marine electrical standards when used with an ELCI Main circuit breaker and mounted within 10 feet of the AC shore power inlet.
  • Customizable Circuitry: Features 6 blank apertures designed to accommodate Carling Technologies™ A- and C-Series Flat Rocker circuit breakers, allowing for tailored system configurations.
  • Durable Construction: Built with a glass-filled polycarbonate mounting box, offering exceptional strength and resilience in harsh marine environments.
  • Clear Cover Visibility: A transparent cover allows for quick and easy visual inspection of circuit breaker status without opening the enclosure.
  • Superior Weather Sealing: Equipped with an oversized, formed-in-place seamless PUR gasket and an overlapping cover for enhanced strength and increased protection against water ingress.
  • Easy Installation: Features an easily removable stainless steel hinge pin for unobstructed mounting and maintenance.
  • Secure Latching System: A stainless steel latch safely secures the cover without penetrating the enclosure, maintaining its watertight integrity.
  • Integrated LED Indicators: Includes 1 red LED for reverse polarity (230V AC) and 3 green LEDs for circuit status (230V AC) to provide immediate diagnostic feedback.
  • Wide Operating Temperature: Functions reliably in temperatures ranging from -40°C to 85°C (-40°F to 185°F), suitable for diverse marine climates.
  • Compact Dimensions: Measures 7.6" H x 7.4" W x 4.7" D (192 x 188 x 120mm) overall, providing ample protection within a manageable footprint.
