Brand: Blue Sea Systems

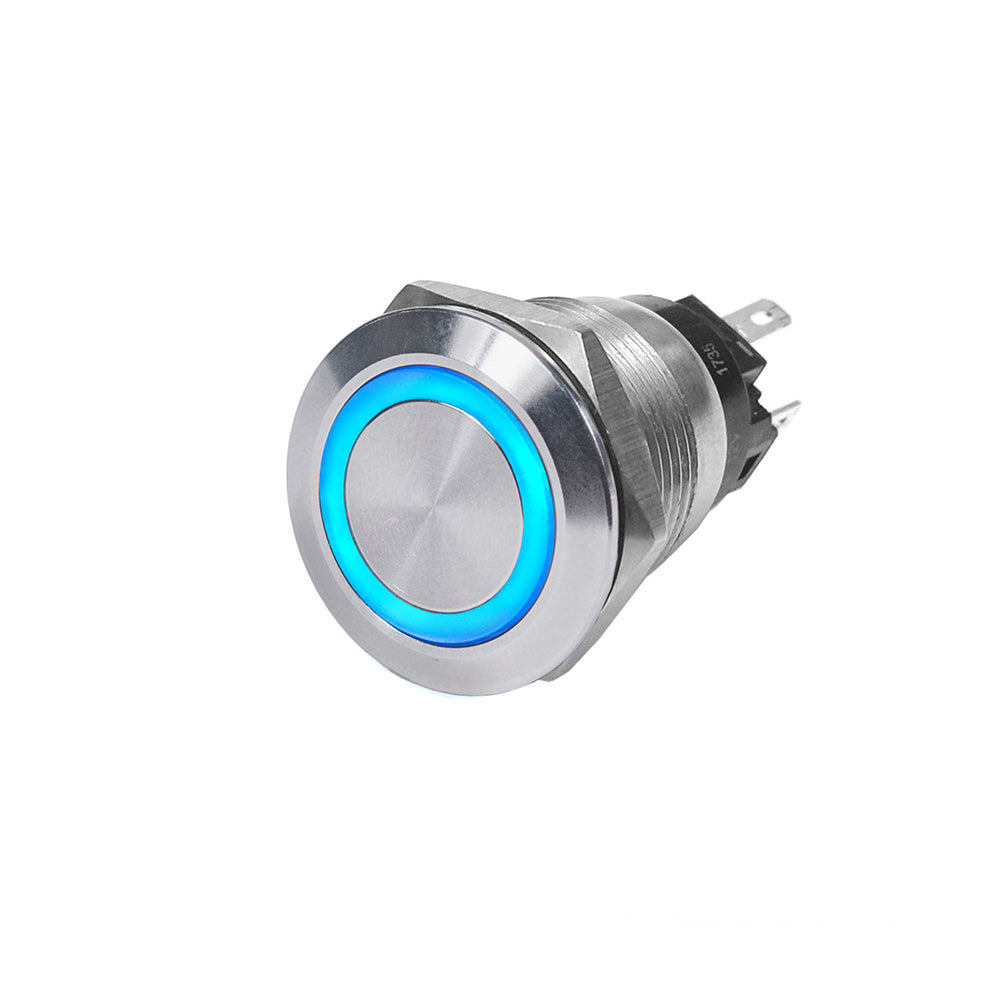

Blue Sea Systems 4160 Push-Button Switch, Off-On, Blue, 10A
Blue Sea Systems 4160 Push-Button Switch, Off-On, Blue, 10A
10+ available
About this product
The Blue Sea Systems 4160 is an illuminated push-button switch with Off-On action and independent LED power contacts. It can be wired as normally open or normally closed and configured for single-pole, double-throw or single-pole, single-throw operation.
- Current rating: 10A at 12V DC resistive; 3A at 12V DC inductive
- Nominal voltage: 12V DC; maximum LED operating current: 20mA
- Operating temperature: -30°C to 70°C
- Storage temperature: -55°C to 85°C
- Mounting hole: 19mm
- Five 0.110 in. quick-connect terminals; 0.110 in. quick connects are included in the retail package
- Switching cycles: 40,000
- California warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer and birth defects or other reproductive harm. See P65Warnings.ca.gov for more information.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-106375
- Model / MPN
- 4160
- UPC / GTIN
- 632085041601
- Package dimensions (H × W × L)
- 2" X 3" X 5"
- Package weight
- 0.05 lb
- Country of origin
- CHINA
Specifications
- Color
- Stainless
- Action
- ON-OFF
- Amperage
- 10A @ 12V DC resistive; 3A @ 12V DC inductive
- Minimum Operating Temperature
- -30°C
- Switching Cycles
- 40,000
