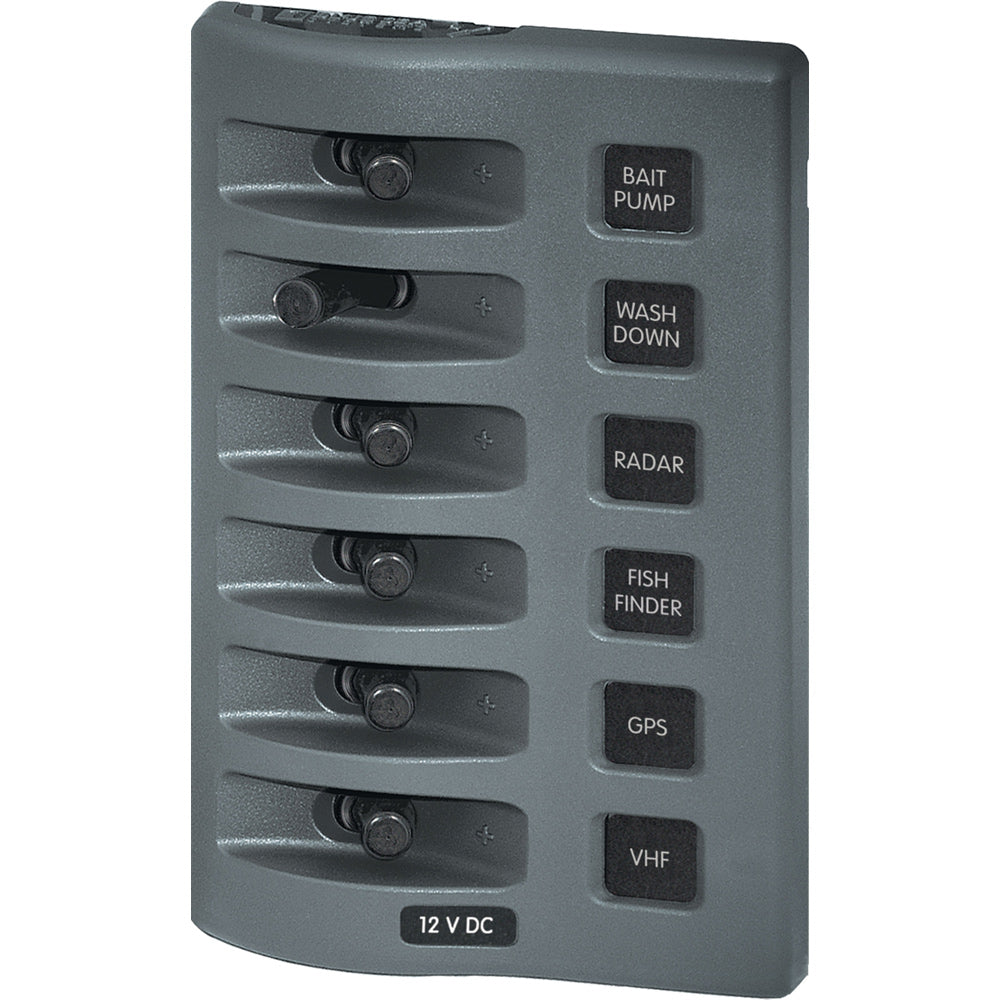

Blue Sea Systems WeatherDeck 12V DC Waterproof Switch Panel, 6 Pos

Effortlessly manage your boat's critical electrical systems with the Blue Sea Systems WeatherDeck® Switch Panel. Engineered for exposed marine environments, this robust panel provides reliable control for essential equipment like bait pumps, radar, GPS, and fish finders, ensuring your vessel operates smoothly and safely. Its waterproof construction and durable materials make it the ideal choice for demanding conditions. Upgrade your vessel's electrical control and invest in lasting marine-grade reliability today.

In the Box:

• WeatherDeck® Switch Panel Unit
• 6x Waterproof Boots
• 6x Toggle Switches
• Label Kit

Key Benefits:

• IP67 Waterproof Rating: Front panel is protected against immersion up to 1 meter for 30 minutes, safeguarding against water ingress in harsh marine conditions.
• Robust Construction: Made from UV-stabilized reinforced polycarbonate, ensuring long-term durability and resistance to the elements.
• Integrated Switch Guards: Designed to reduce the risk of accidental switching, enhancing operational safety.
• Versatile Mounting: Panels can be mounted in four different orientations to suit various installation requirements.
• High Amperage Capacity: Capable of handling up to 15A per circuit (12V DC) and a cumulative panel rating of 45A, supporting multiple essential functions.
• Dual Voltage Support: Compatible with both 12V DC and 24V DC systems for broad application.
• Snap-On Faceplate: Allows for easy access to components and conceals mounting screws for a clean installation.
• External Circuit Protection Required: This panel does not include built-in circuit protection; external fuses or breakers must be used.

Specifications:

• Positions: 6
• Nominal Voltage: 12V DC / 24V DC
• Maximum Amperage per Circuit: 15A @ 12V DC
• Panel Cumulative Rating: 45A
• Material: UV-stabilized reinforced polycarbonate
• Dimensions (H x W x D): 6.00" x 3.88" x 2.50" (152.4 mm x 98.55 mm x 63.5 mm)
• Weight: 1.15 lb (0.52 kg)

Compatibility & Pairings:

• Designed for 12V/24V DC marine electrical systems.
• Ideal for controlling auxiliary equipment such as lighting, pumps, navigation electronics, and entertainment systems.
• Pair with appropriate circuit breakers or fuses for complete system protection.
