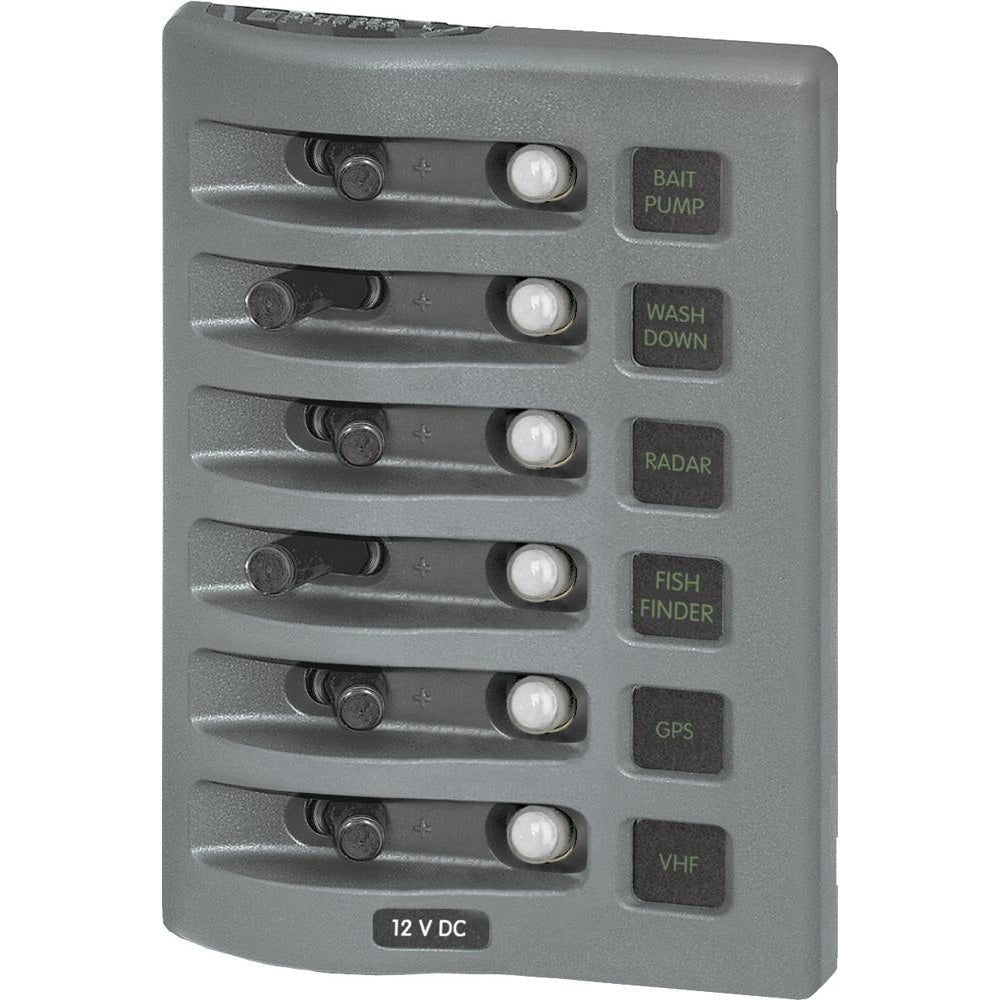

Blue Sea Systems WeatherDeck 12V DC Waterproof 6-Pos Circuit Breaker Panel

Ensure robust and reliable power distribution in demanding marine environments with the Blue Sea Systems WeatherDeck® 12V DC Waterproof Circuit Breaker Panel. Engineered for open cockpits and flybridge applications, this 6-position panel provides integrated circuit protection with an IP67 water-resistant rating, safeguarding your electrical systems against temporary immersion and harsh conditions. Its contemporary design and corrosion-resistant construction offer lasting durability and style. Equip your vessel with trusted Blue Sea Systems quality for enhanced control and safety.

In the Box:

• 6 x 4135 Push Button Reset Only Circuit Breaker Boot - Clear
• 6 x 4138 WeatherDeck® Toggle Switch Boot - Black
• 6 x 4150 WeatherDeck® Toggle Switch SPST - ON-OFF
• 1 x 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
• 6 x 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps

Key Features & Benefits:

• IP67 Water-Resistant Rating: Offers protection against temporary immersion for 30 minutes, ideal for exposed marine locations.
• 6 Circuit Positions: Provides versatile control and protection for multiple electrical accessories.
• 12V/24V DC System Compatibility: Designed for seamless integration with common marine electrical systems.
• Independent Label Backlighting: Green LEDs enhance readability in low-light conditions, with compatibility for Blue Sea Systems Digital Dimmers for adjustable illumination.
• Flexible Mounting: Can be installed in four different orientations to suit various boat layouts and preferences.
• Integrated 15A Circuit Breakers: Each circuit includes a 15 Amp push-button, thermal-trip, manual-reset-only circuit breaker for reliable overcurrent protection.
• UV-Stabilized & Corrosion-Resistant: Constructed from durable thermoplastic materials to withstand harsh marine environments and resist UV degradation.
• Switch Guards: Built-in guards reduce the risk of accidental switch activation.
• Panel Cumulative Rating: Supports a maximum cumulative amperage of 45A for efficient power management.

Recommended Pairings:

• Pair with Blue Sea Systems Digital Dimmers for customizable backlighting control.
