Brand: Blue Sea Systems

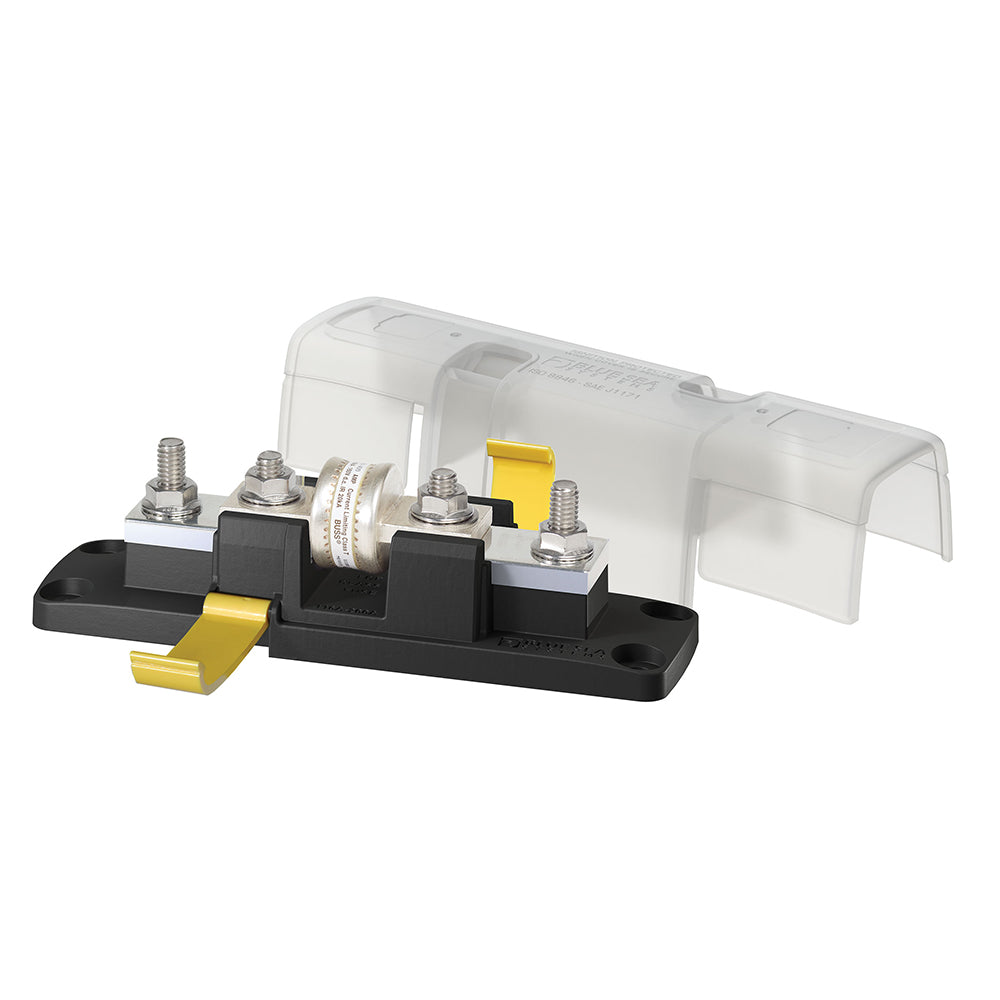

Blue Sea Systems Class T Fuse Block with Insulating Cover, 110-200A (5007100)
Blue Sea Systems Class T Fuse Block with Insulating Cover, 110-200A (5007100)
2 available
This Class T fuse block from Blue Sea Systems provides fast-acting circuit protection for inverters and other electronics. Featuring a four-stud design, it allows for easy installation of large cable lugs, and the included insulating cover meets ABYC and USCG requirements for safety.
Features:
- Designed for Class T fuses rated between 110A and 200A
- Insulating cover features breakouts to allow wire access in any direction
- Corrosion-resistant stainless steel studs support high torque
- Secure, one-piece stainless steel flange nuts
- UL 94-V0 rated base for high heat resistance
- Ignition protected for safe installation
Specifications:
- Maximum Amperage: 200A
- Maximum Voltage: 160V DC
- Terminal Stud Size: 5/16"-18 (M8)
- Cable Compatibility: Up to 4/0 AWG
- Fuse Block Material: Tin-plated copper
Regulatory note: This product contains chemicals, including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
Product facts
- CT SKU
- CT-105269
- Model / MPN
- 5007100
- UPC / GTIN
- 632085500719
- Package dimensions
- 3" X 8" X 9"
- Package weight
- 1.2 lb
- Specifications
- Fuse Type = Class T\nType = Fuse Blocks
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
