Brand: Blue Sea Systems

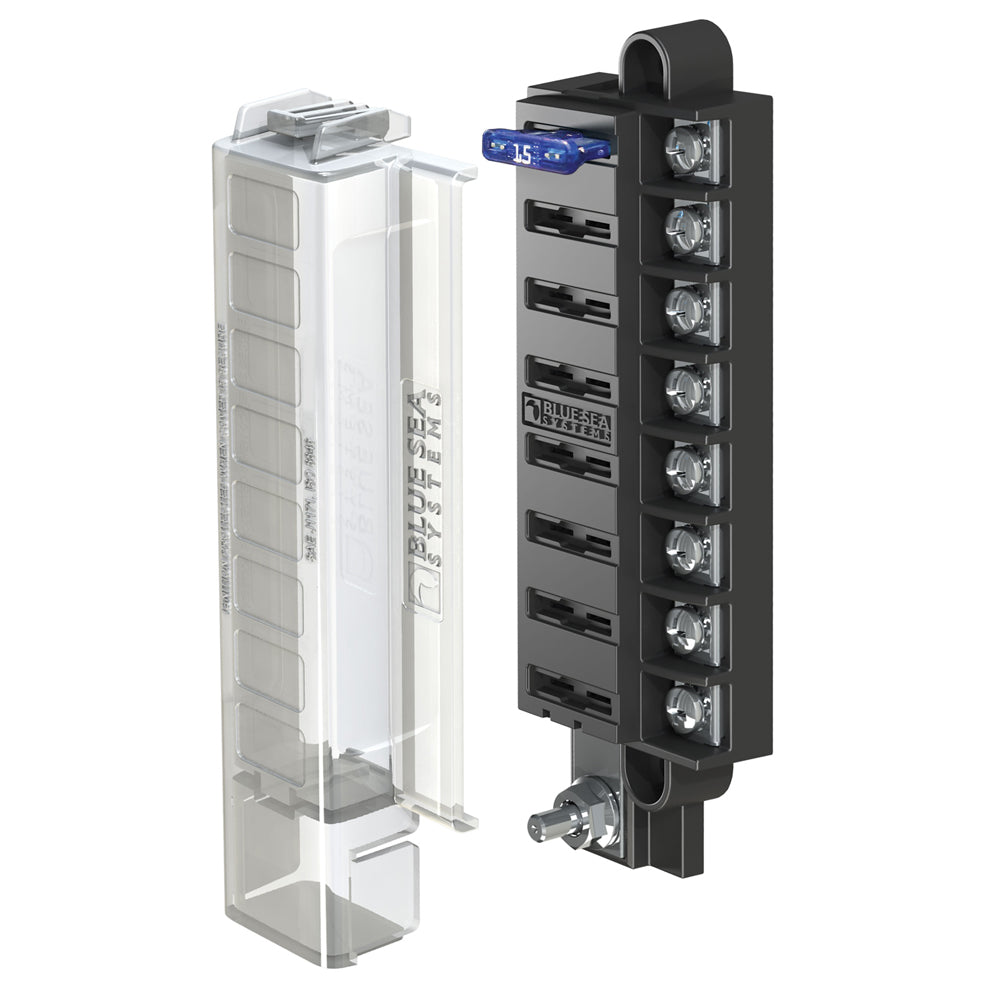

Blue Sea Systems 5046 ST Blade Compact Fuse Block, 8 Circuits with Cover
Blue Sea Systems 5046 ST Blade Compact Fuse Block, 8 Circuits with Cover
10+ available
About this product
Blue Sea Systems 5046 ST Blade Compact Fuse Block provides surface-mount circuit protection for ATO and ATC fast-acting blade fuses in a space-saving format. Its single-side wiring design allows wire entry from one side, while the insulating cover supports use in gasoline engine compartments.
- 8 circuits
- Accepts ATO and ATC fast-acting blade fuses
- 100A maximum per block and 30A maximum per circuit
- 32V DC maximum voltage
- Single-side entry wiring with a compact common-source design
- Ignition protected and meets ISO 8846 and SAE J1171 requirements for use in a gasoline engine compartment
- Insulating cover meets ABYC and USCG insulation requirements
- Tin-plated copper buses and fuse clips
- Accepts ring or snap-fork terminals
- Mounts with #8 screws or M4 hardware
- Screw terminal torque: 18 in-lb (2.03 Nm); #8-32 screws include captive star lock washers
- Small-format standard and custom labels are available
- California Proposition 65 warning: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-104280
- Model / MPN
- 5046
- UPC / GTIN
- 632085050467
- Package dimensions (H × W × L)
- 2" X 3" X 9"
- Package weight
- 0.39 lb
- Country of origin
- UNITED STATES
Specifications
- Fuse Type
- ATO/ATC
- Type
- Fuse Blocks
- Screw Terminal Torque
- 18 in-lb (2.03 Nm)
