Brand: Blue Sea Systems

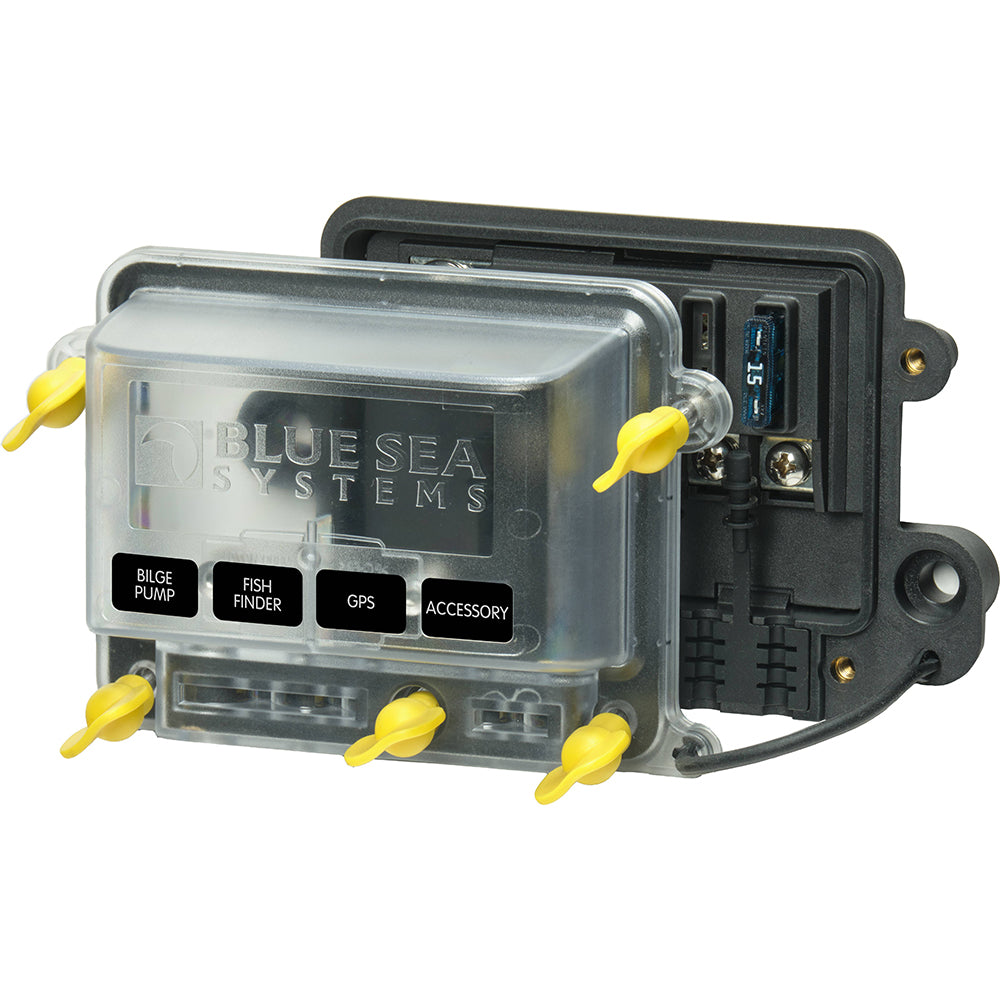

Blue Sea Systems 5056100 Water-Resistant ST-Blade Fuse Block with Cover
Blue Sea Systems 5056100 Water-Resistant ST-Blade Fuse Block with Cover
10+ available
About this product
The Blue Sea Systems 5056100 is a water-resistant fuse block for ATO and ATC fast-acting blade fuses, with a compact footprint and cover secured by wing screws for tool-free access.
- Accepts ATO and ATC fast-acting blade fuses and ATO/ATC-style low-profile circuit breakers
- Supports standard ring or spade-type terminals and a range of wire sizes
- Includes three wire plugs to maintain the water-resistant rating when fewer than four loads are used
- Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wiring
- Tin-plated copper bus and fuse clips
- Maximum voltage: 32V DC
- Input wire size: one 8 AWG to 4 AWG conductor
- Load wire size: four 16 AWG to 10 AWG conductors
- Mounting holes accept 1/4 in. (6 mm) screws
- Terminal screws: four #8-32 with captive star lock washers
- Includes four write-on circuit labels, spare fuse and fastener storage in the cover, and an instruction manual
- In the box: 5056100 busbar
- Regulatory note: Meets ABYC/USCG insulation requirements; wing screws support tool-free cover installation for ABYC compliance
- Sold individually
- UPC: 632085505615
