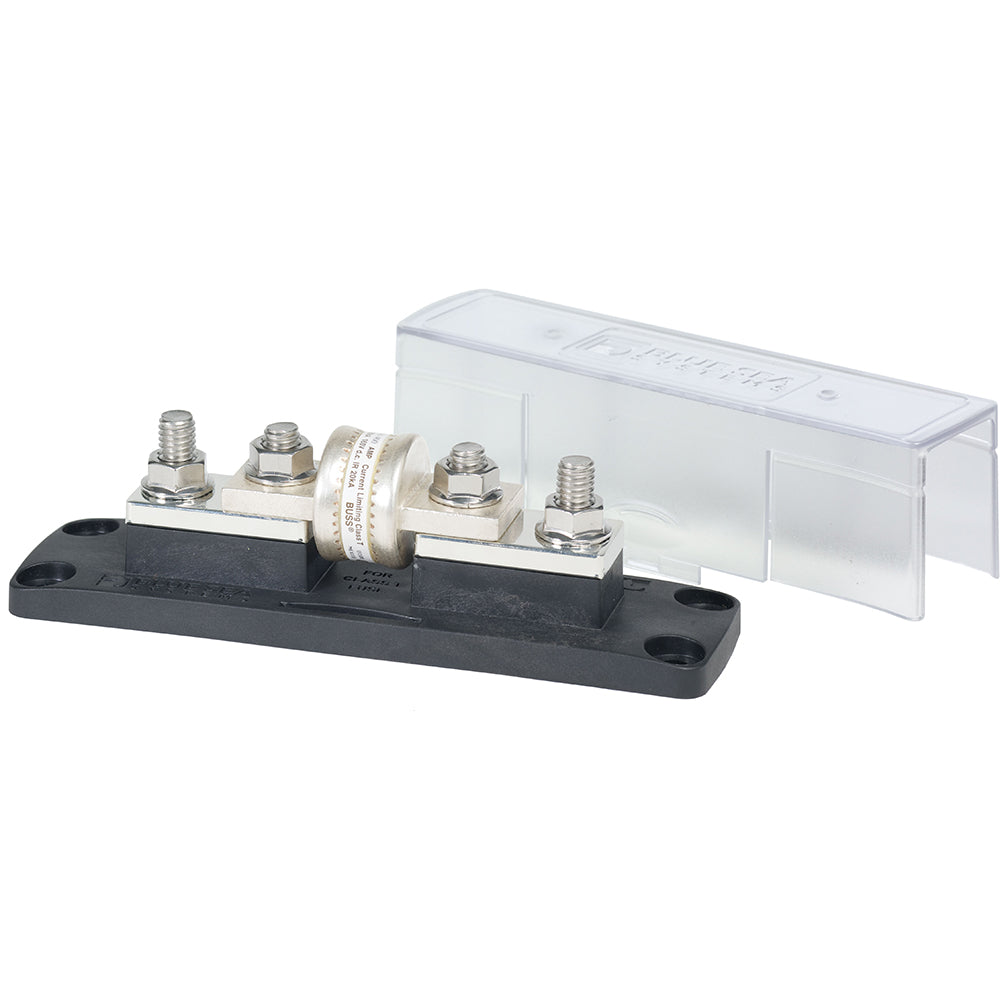

Blue Sea Systems 5502 Class T Fuse Block with Insulating Cover, 225-400A

Ensure safe and ultra-fast circuit protection for your high-amperage DC applications with the Blue Sea Systems 5502 Class T Fuse Block. Engineered to meet the demanding requirements of modern battery systems, including AGM and lithium technologies, this fuse block provides superior short-circuit response. Its clear insulating cover satisfies ABYC/USCG insulation requirements, offering enhanced safety and peace of mind. Upgrade your marine or vehicle electrical system with this essential component today.

Key Benefits & Specifications:

• High Voltage Compatibility: Rated for a maximum voltage of 160 Volts DC, suitable for diverse battery and inverter circuits.
• Robust Current Handling: Supports a continuous maximum amperage of 400 Amperes DC.
• Optimized for Class T Fuses: Designed for use with Class T fuses ranging from 225 to 400 Amperes DC, providing critical high-speed response to short circuits, as recommended by most inverter manufacturers.
• Secure Connections: Features 3/8"-16 (M10) terminal stud size, accommodating large cable ring terminals up to 4/0 AWG.
• High Torque Capacity: Maximum terminal torque of 190 in-lb (21.47 Nm) ensures reliable, tight connections.
• Durable Mounting: Mounting holes accept 1/4" (M6) screws for secure installation.
• Efficient Heat Dissipation: Large, tin-plated copper fuse mounting blocks provide low-resistance connections and superior heat dissipation, enhancing performance and longevity.
• Safety Compliant Cover: Includes a clear insulating cover that protects live fuse terminals from accidental contact, meeting ABYC E-11 and USCG requirements.

Note: Fuse sold separately.
