Brand: Blue Sea Systems

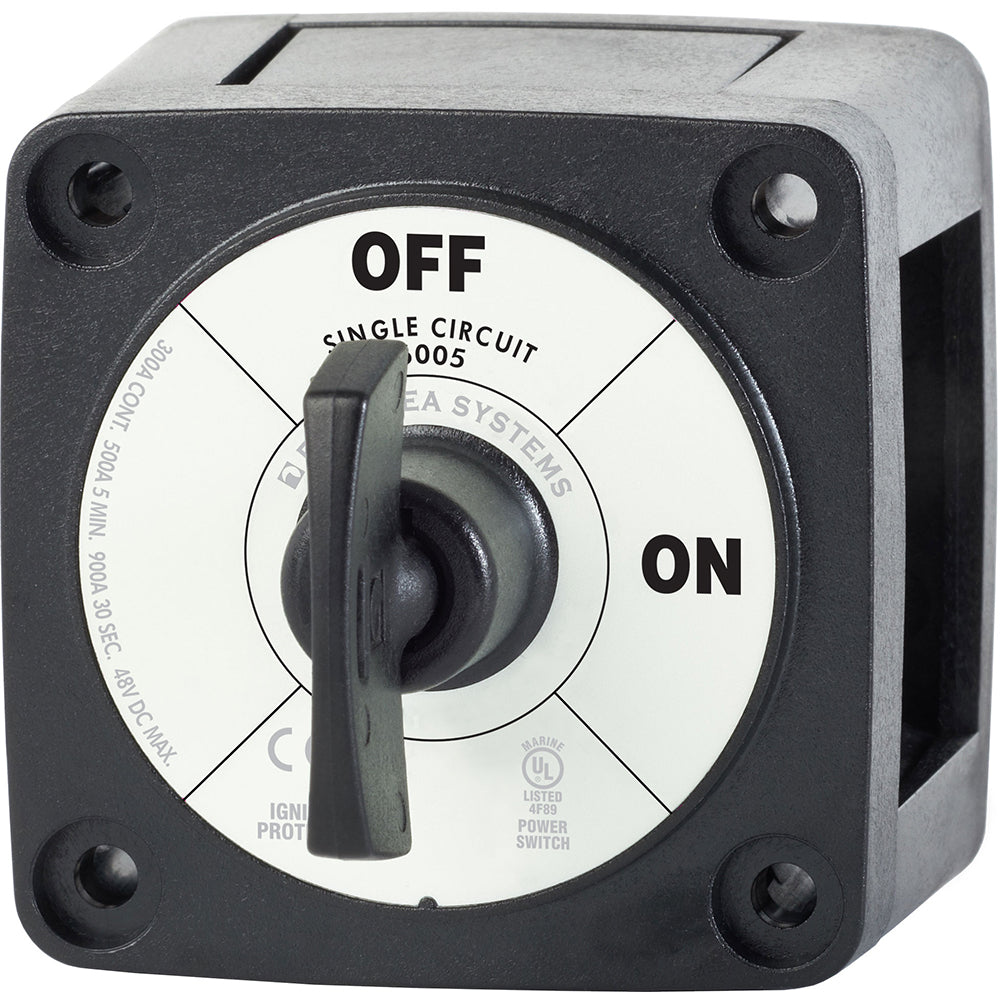

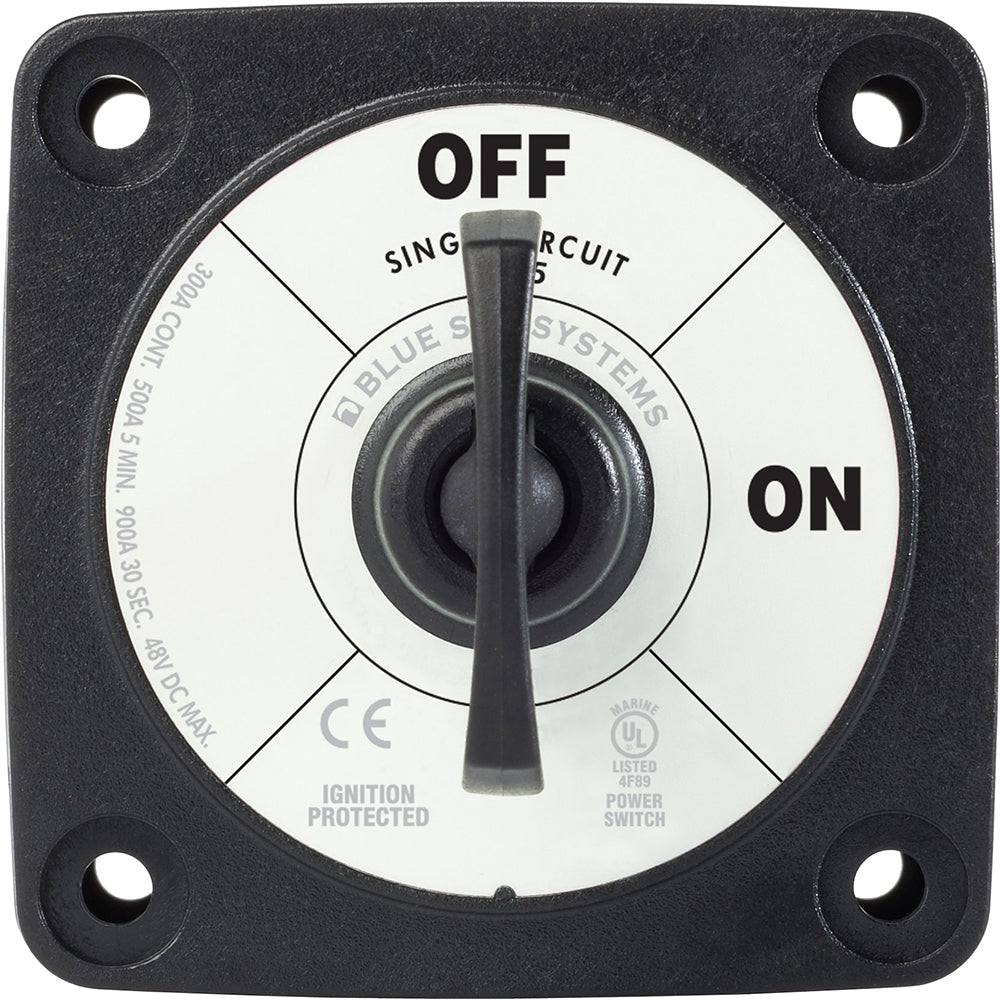

Blue Sea Systems 6005200 m-Series Mini Battery Switch, Single Circuit ON-OFF, Black
Blue Sea Systems 6005200 m-Series Mini Battery Switch, Single Circuit ON-OFF, Black
Last one
About this product

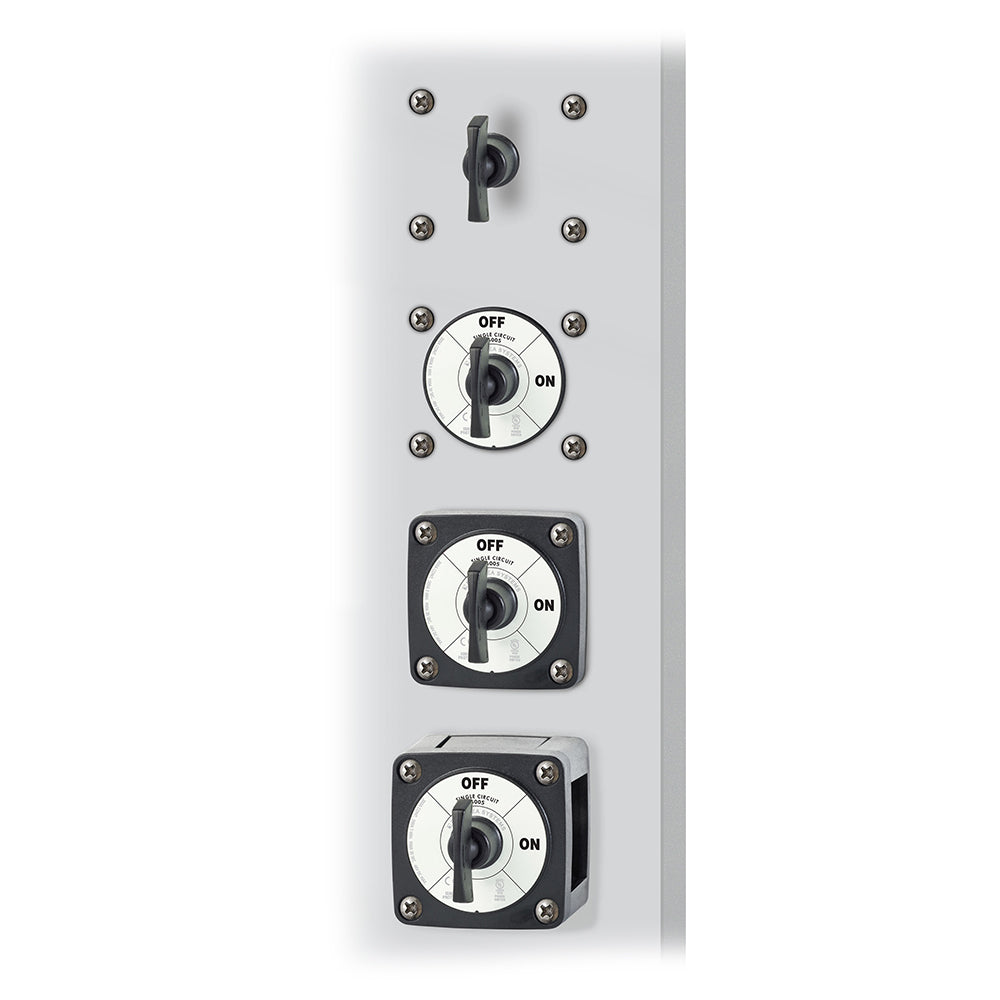

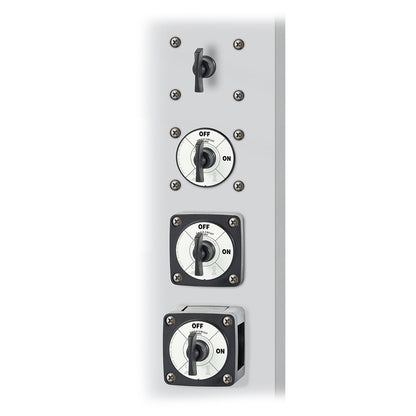

Blue Sea Systems 6005200 m-Series Mini Battery Switch controls a single battery connected to a single load group. Its ignition-protected design is suitable for installation aboard gasoline-powered boats, and the case supports surface, front-panel, or rear-panel mounting.
- Switch type: Single Circuit ON-OFF
- Color: Black
- Switch positions: 2
- Battery inputs: 1
- Battery combine: No
- Alternator field disconnect: No
- Maximum voltage: 48V DC
- Continuous rating: 300A
- Intermittent rating: 500A for 5 minutes
- Cranking rating: 1500A for 10 seconds; 775A for 1 minute
- Cable clearance: 1.12 in. for 4/0 AWG cables
- Cable size to meet ratings: 4/0 AWG (120 sq. mm)
- Mounting holes: Accept #10 screws

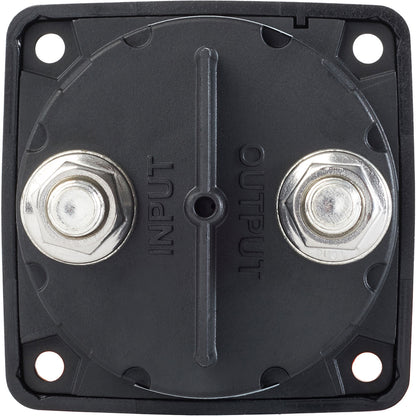

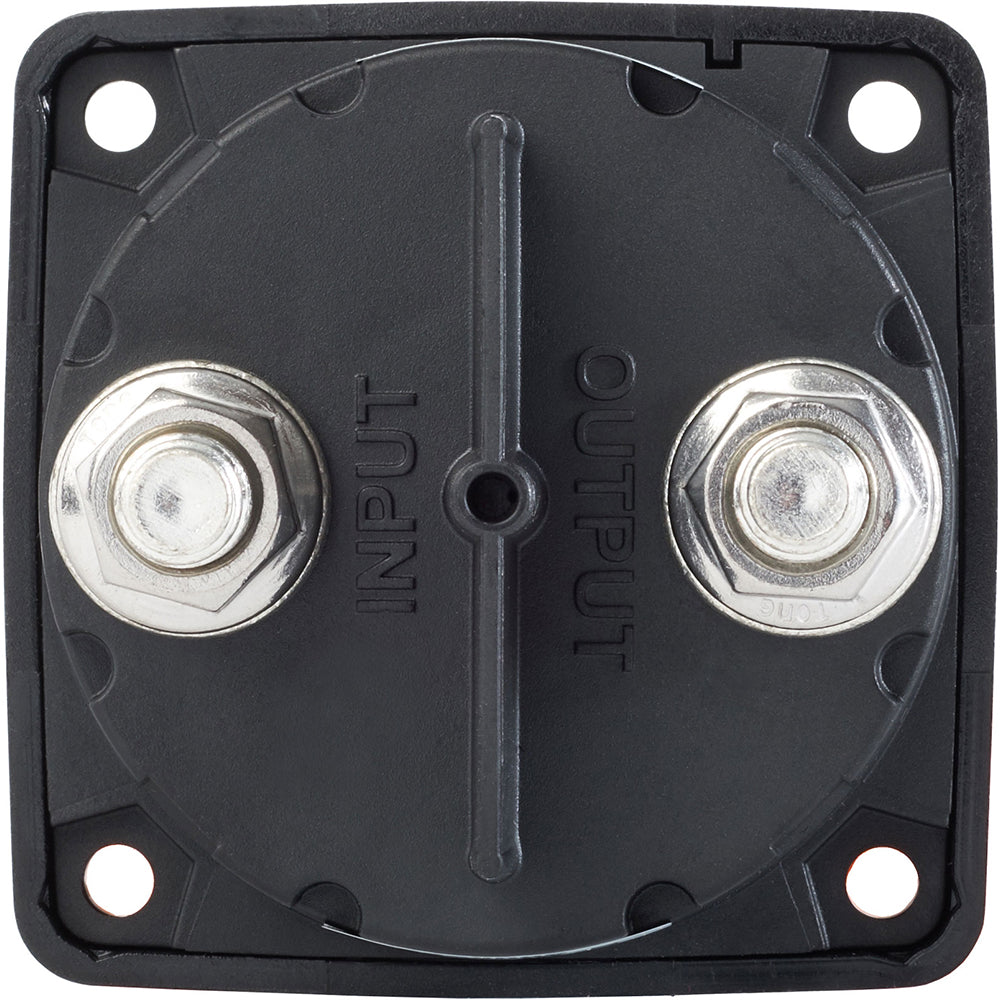

- Terminal stud: 3/8 in.-16 (M10)
- Terminal stud torque: 120 in.-lb. (13.56 Nm)
- Weight: 0.62 lb. (0.28 kg)
- Rear-contact protection: Isolating cover with snap-on sections
- Regulatory note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-102876
- Model / MPN
- 6005200
- UPC / GTIN
- 632085600525
- Package dimensions (H × W × L)
- 3" X 4" X 7"
- Package weight
- 0.65 lb
- Country of origin
- UNITED STATES
Specifications
- AFD
- No
- Continuous Amperage
- 300a
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
