Brand: Blue Sea Systems

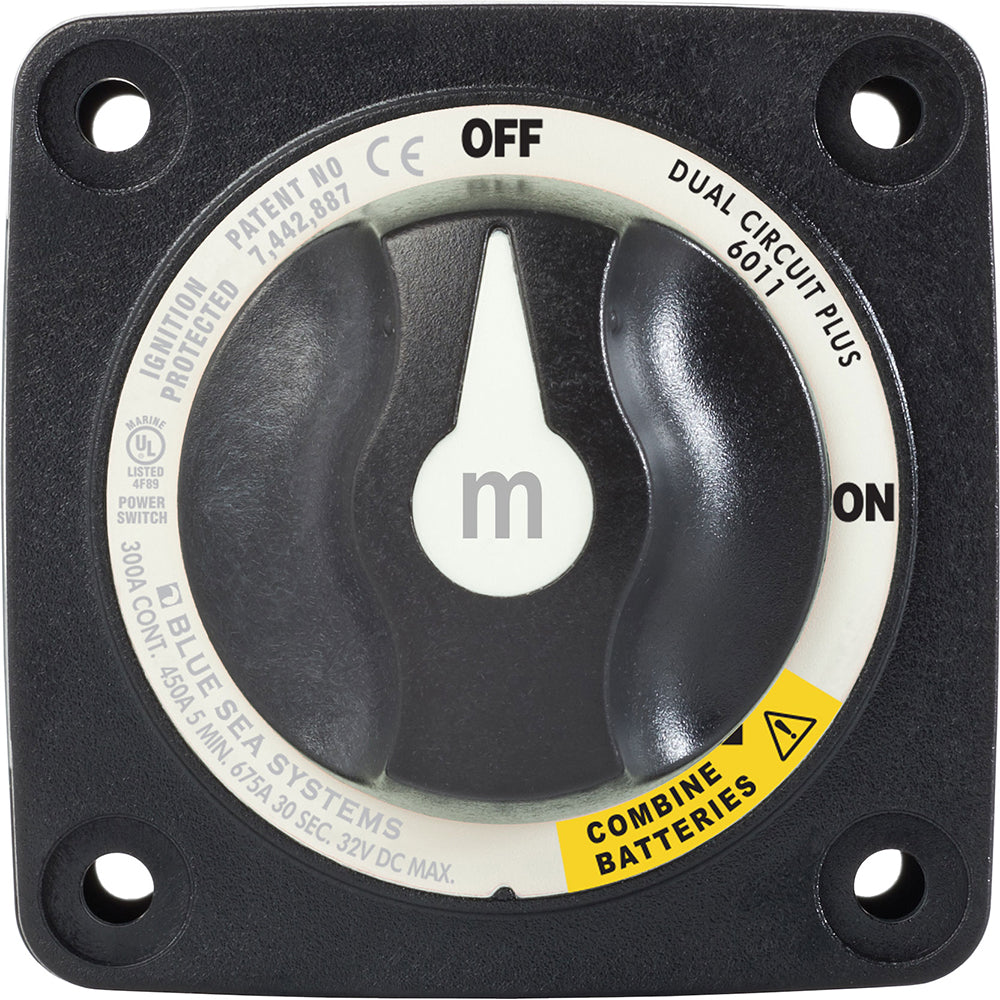

Blue Sea Systems m-Series Dual Circuit Plus Battery Switch, 300A, Black
Blue Sea Systems m-Series Dual Circuit Plus Battery Switch, 300A, Black
Last one
The Blue Sea Systems m-Series Dual Circuit Plus Battery Switch allows you to simultaneously switch two isolated battery banks or combine them to support all electrical loads. Designed with a make-before-break contact configuration, this switch enables you to transition between battery banks without interrupting power.
- Switch Type: Dual Circuit Plus
- Positions: 3
- Continuous Rating: 300A
- Intermittent Rating: 450A (5 min)
- Cranking Rating (10 sec): 1000A
- Cranking Rating (1 min): 650A
- Maximum Voltage: 32V DC
- Battery Inputs: 2
- Terminal Stud Size: 3/8"-16 (M10)
- Terminal Stud Torque: 120 in-lb (13.56 Nm)
- Mounting: Accepts #10 screw
- Cable Clearance: 1.12" for 4/0 AWG cables
- Cable Size Required to Meet Ratings: 4/0 AWG (120mm²)
- Weight: 0.80 lbs
- Regulatory note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm.
Product facts
- CT SKU
- CT-102878
- Model / MPN
- 6011200
- UPC / GTIN
- 632085601126
- Package dimensions
- 3" X 4" X 7"
- Package weight
- 0.6 lb
- Specifications
- AFD = No\nPositions = 3\nContinuous Amperage = 300a
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
