Brand: Blue Sea Systems

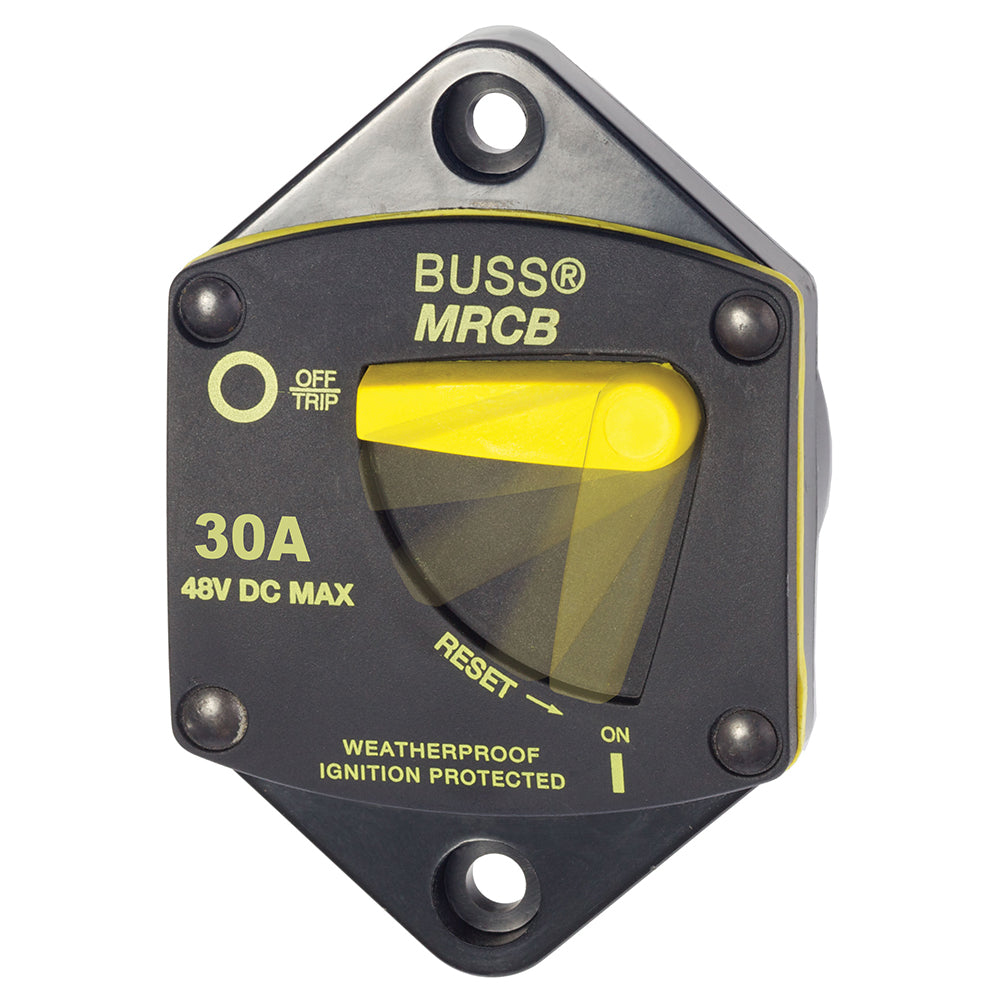

Blue Sea Systems 187-Series Panel-Mount Thermal Circuit Breaker, 30A, Model 7036
Blue Sea Systems 187-Series Panel-Mount Thermal Circuit Breaker, 30A, Model 7036
4 available
About this product
The Blue Sea Systems 187-Series 30A thermal circuit breaker combines switching and circuit protection in a panel-mount design. Its trip-free manual-reset operation cannot be held on during a fault-current condition.
- Type III, switchable, manual reset, trip-free circuit breaker
- Maximum voltage rating: 48V DC
- Interrupt capacity: 5,000A at 14V DC; 3,000A at 28V DC; 1,500A at 48V DC
- Operating temperature range: -40°C to 85°C
- Thermoset polyester case with thermally responsive bimetal blade
- Waterproof construction with ignition protection; components meet SAE J1171 external ignition protection requirements
- Single-lever operation indicates trip status in vertical or horizontal orientation
- Recessed mounting holes and a self-trimming round case support panel installation; the round case installs with a standard-size hole saw
- Large clearance around terminal studs accommodates heavy-gauge wire lugs; 5/16 in. terminals provide high-torque connections
- California Proposition 65 warning: This product can expose you to di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer and birth defects or other reproductive harm.
Ignition-protected for installation aboard gasoline-powered boats.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-100419
- Model / MPN
- 7036
- UPC / GTIN
- 632085070366
- Package dimensions (H × W × L)
- 2" X 5" X 8"
- Package weight
- 0.47 lb
- Country of origin
- MEXICO
Specifications
- Amperage
- 30a
- Interrupt Capacity
- 5,000A at 14V DC; 3,000A at 28V DC; 1,500A at 48V DC
- Operating Temperature Range
- -40°C to 85°C
