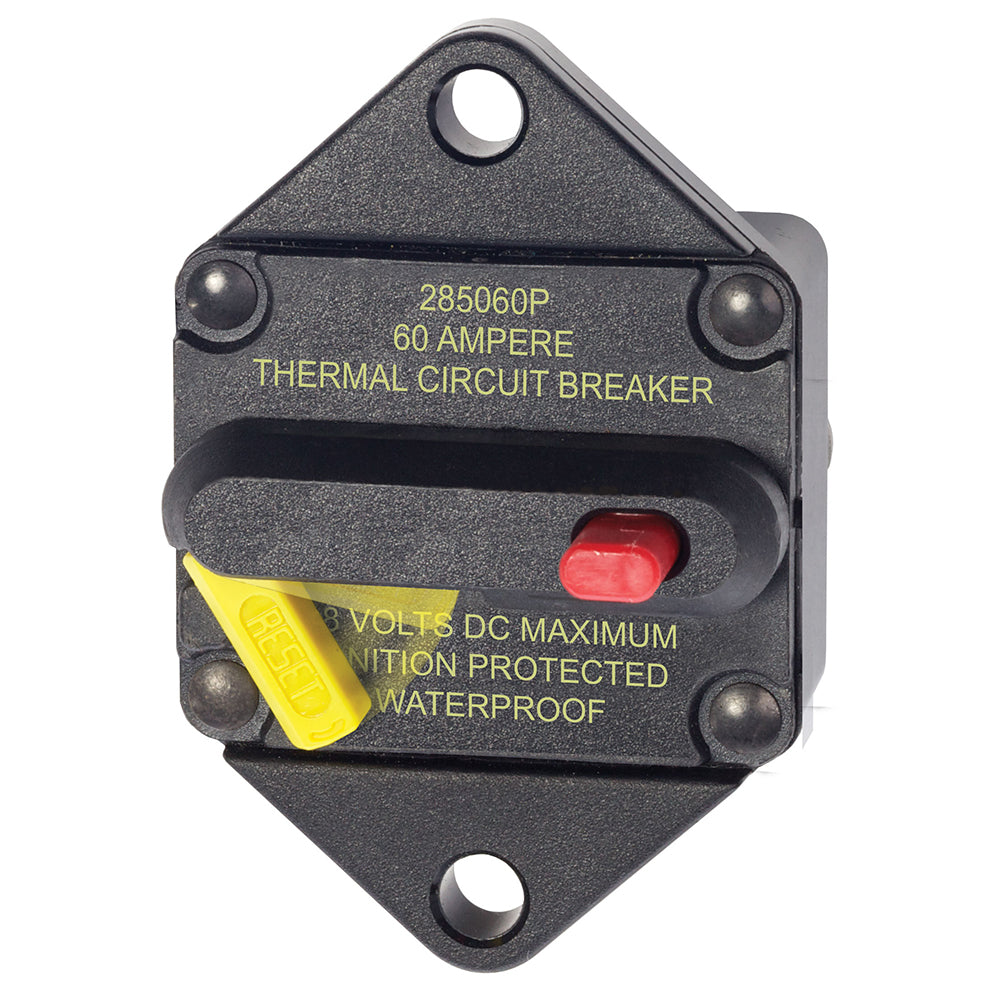

Blue Sea Systems 285-Series Circuit Breaker, 60A, Ignition Protected

Ensure robust electrical protection and safety with the Blue Sea Systems 285-Series 60 Amp Circuit Breaker. Designed for demanding marine and automotive environments, this panel-mount breaker combines switching and circuit protection functions into a single, reliable unit. Its ignition-protected and weatherproof design makes it ideal for installation aboard gasoline-powered boats, providing peace of mind against external ignition sources. Upgrade your system with Blue Sea Systems' trusted reliability.

Key Features & Benefits:

• 60 Amp Rating: Provides essential medium-duty circuit protection for a wide range of DC loads up to 48V.
• Ignition Protected: Meets SAE J1171 external ignition protection requirements, ensuring safe installation in hazardous environments, including gasoline engine compartments.
• Weather and Waterproof Design: IP67 rated for protection against dust and immersion in water up to 1 meter for 30 minutes, guaranteeing durability in harsh conditions.
• "Trip Free" Mechanism: Prevents the breaker from being held closed during a fault condition, enhancing safety and preventing damage.
• Visible Reset Lever: Clearly indicates when the circuit is open, allowing for quick and easy fault identification.
• Dual Functionality: Integrates both switching and circuit breaking capabilities into one compact device, simplifying wiring and installation.
• Direct Replacement: Serves as a convenient drop-in replacement for existing 185-Series Circuit Breakers.
• Wide Operating Temperature: Functions reliably from -40° C to 85° C, accommodating extreme environmental conditions.
• High Interrupt Capacity: Rated for 3000A at 48V DC, capable of handling significant fault currents without damage.
• CE Marked: Complies with European health, safety, and environmental protection legislation.

Specifications:

• Amperage: 60A
• Maximum Voltage: 48V DC
• Mounting: Panel Mount
• Circuit Breaker Type: Thermally responsive Bi-metal blade
• Terminal Stud: M6 (accepts 1/4" Ring Terminal)
• Terminal Stud Torque: 50 in-lb (5.65 Nm)
• Interrupt Capacity: 3000A @ 48V
• Operating Temperature: -40° C to 85° C
• Circuit Breaker Class: Type III - switchable/manual reset - trip free
