Brand: Blue Sea Systems

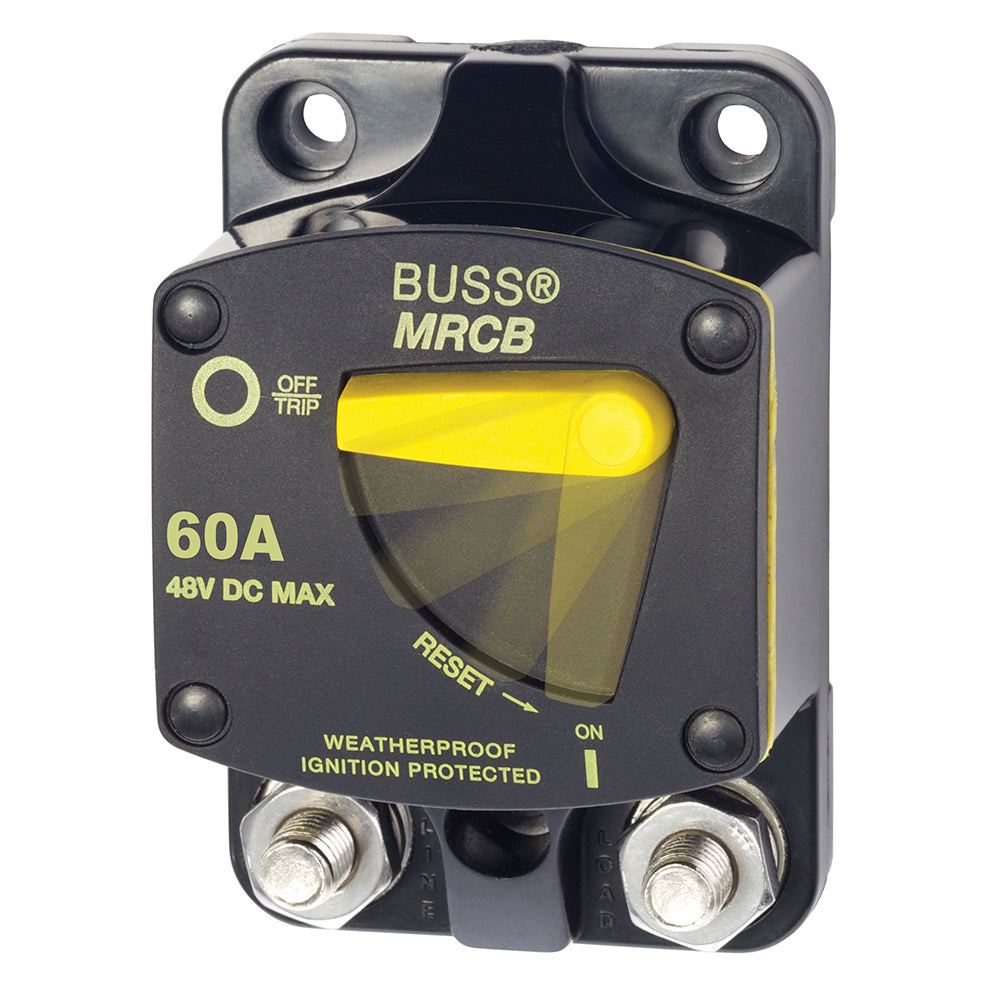

Blue Sea Systems 7140 187-Series Surface-Mount Thermal Circuit Breaker, 60A
Blue Sea Systems 7140 187-Series Surface-Mount Thermal Circuit Breaker, 60A
10+ available
About this product
Blue Sea Systems 7140 is a 60A 187-Series surface-mount thermal circuit breaker that combines switching and circuit protection in one device. Its manual-reset, trip-free design is intended for marine electrical installations, including gasoline-powered boats.
- Type III switchable, manual-reset, trip-free circuit breaker
- Thermally responsive bi-metal blade
- 48 V DC maximum voltage rating
- Interrupt capacity: 5,000 A at 14 V DC; 3,000 A at 28 V DC; 1,500 A at 48 V DC
- Operating temperature range: -40 deg C to +85 deg C
- Thermoset polyester case
- Waterproof construction with recessed mounting holes
- Clear single-lever operation with trip-status indication in vertical or horizontal orientation
- Large clearance around terminal studs for heavy-gauge wire lugs and robust 5/16 in. terminals for high-torque connections
- External ignition protection requirements: SAE J1171
- Manufacturer part number: 7140
- Regulatory note: This product contains di(2-ethylhexyl)phthalate (DEHP), a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-100443
- Model / MPN
- 7140
- UPC / GTIN
- 632085171407
- Package dimensions (H × W × L)
- 2" X 5" X 8"
- Package weight
- 0.6 lb
- Country of origin
- MEXICO
Specifications
- Amperage
- 60a
- Interrupt Capacity
- 5,000 A at 14 V DC; 3,000 A at 28 V DC; 1,500 A at 48 V DC
- Operating Temperature Range
- -40°C to +85°C
