Brand: Blue Sea Systems
Blue Sea Systems 7156 Short Stop Circuit Breaker, 40A DC
Blue Sea Systems 7156 Short Stop Circuit Breaker, 40A DC
10 available
About this product
Blue Sea Systems 7156 Short Stop Circuit Breaker provides 40A DC circuit protection with push-to-reset operation for electrical systems up to 28V DC.
- Amperage: 40A DC
- Maximum voltage: 28V DC
- Interrupt capacity: 2,500A at 28V DC
- Operation: Push to reset only
- Water-resistant boot: IP64
- Material: Corrosion resistant
- Terminal stud: #10-32 in.
- Terminal stud torque: 20 in-lb (2.26 Nm)
- Operating temperature: -10 deg C to 60 deg C

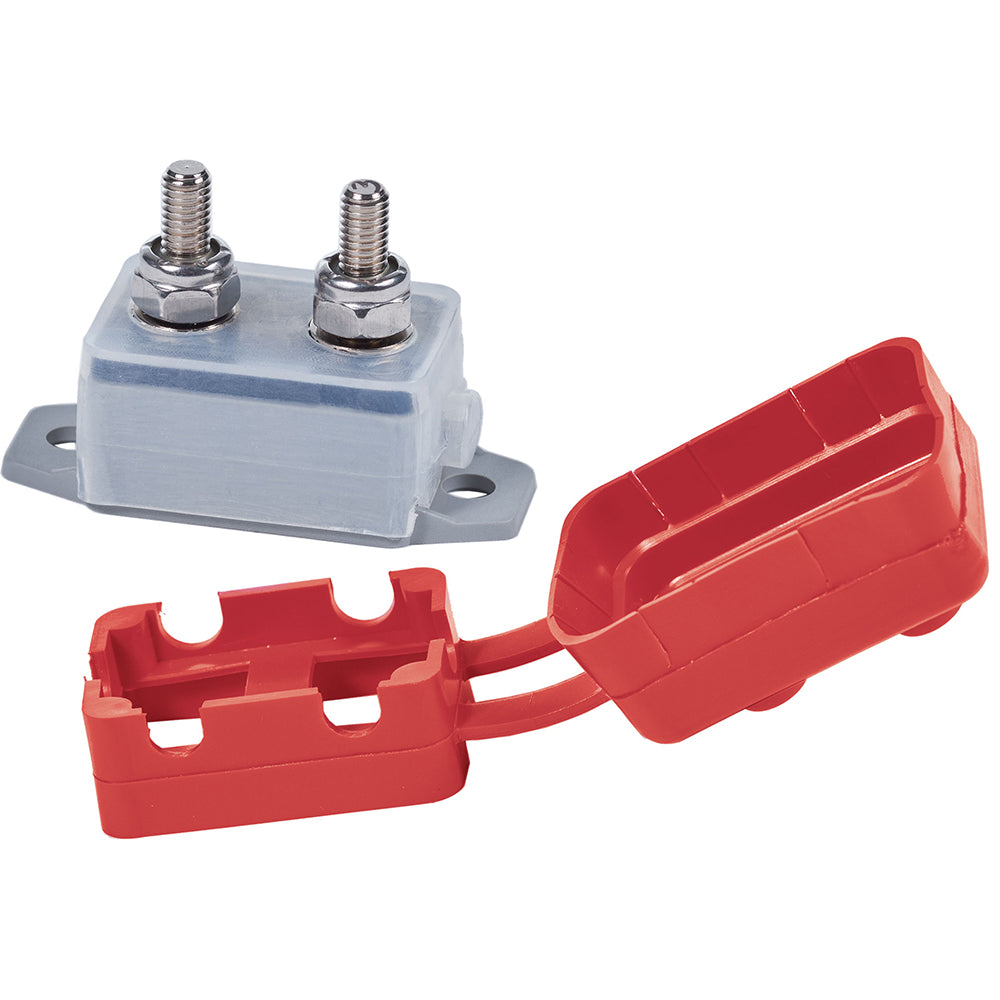

- Included: Red insulating boot
- Regulatory note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which are known to the State of California to cause cancer, birth defects, or other reproductive harm. See P65Warnings.ca.gov for more information.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-106188
- Model / MPN
- 7156
- UPC / GTIN
- 632085071561
- Package dimensions (H × W × L)
- 2" X 3" X 7"
- Package weight
- 0.11 lb
- Country of origin
- CHINA
Specifications
- Amperage
- 40a
- Terminal Stud Torque
- 20 in-lb (2.26 Nm)
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
