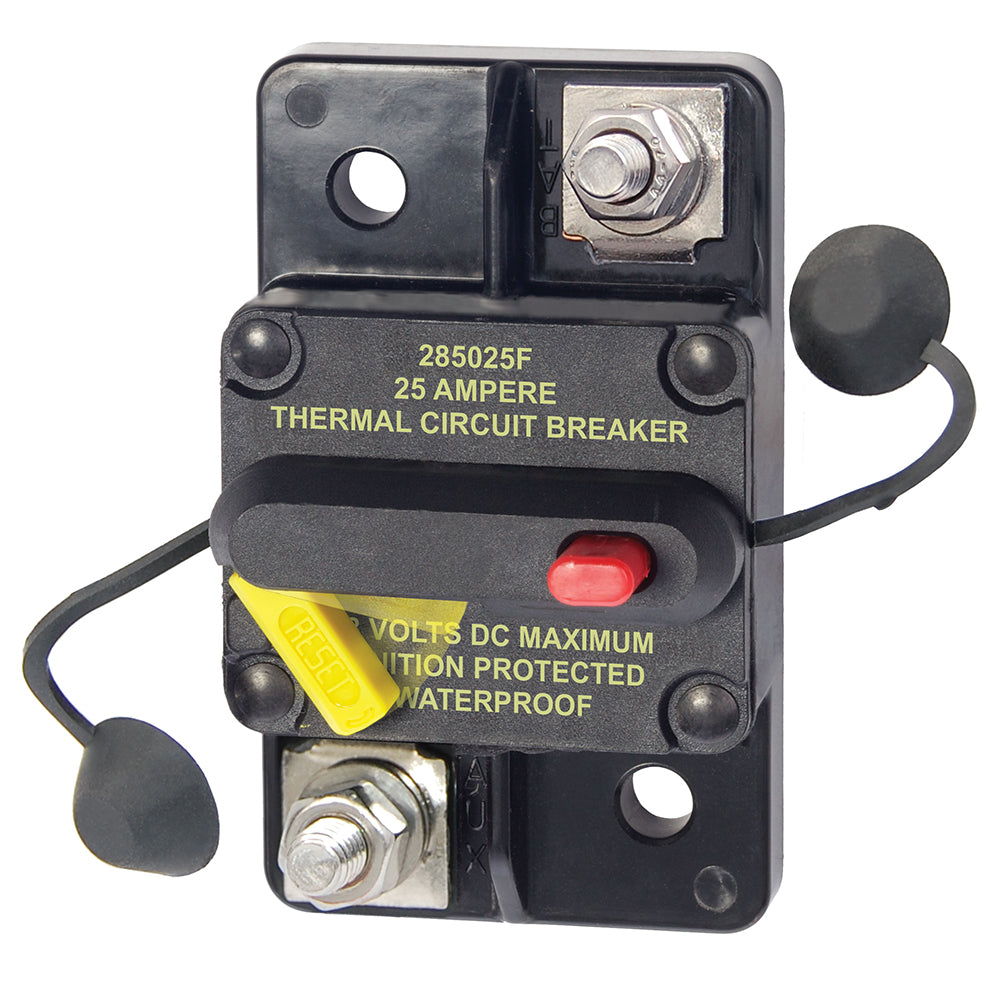

Blue Sea Systems 285-Series Thermal Circuit Breaker, 25 Amp, Ignition Protected

Ensure robust electrical protection in demanding marine and automotive applications with the Blue Sea Systems 285-Series Thermal Circuit Breaker. Designed for DC systems up to 48 volts, this 25 amp surface mount unit offers reliable medium-duty circuit protection and switching capability. With an Ignition Protected rating (SAE J1171) and IP67 waterproofing, it provides exceptional safety and durability in harsh environments. Upgrade your system's reliability today.

• 25 Amp Amperage Rating: Provides precise medium-duty circuit protection for demanding applications.
• Direct Drop-in Replacement: Seamlessly replaces 185-Series circuit breakers for easy upgrades and installations.
• Visible Reset Lever: Clearly indicates open circuit conditions for quick troubleshooting.
• 'Trip Free' Design: Ensures the breaker cannot be held closed during a fault current, enhancing system safety.
• Ignition Protected (SAE J1171): Safe for installation aboard gasoline-powered boats.
• Waterproof to IP67: Offers protection against immersion up to 1 meter for 30 minutes, ideal for marine and outdoor use.
• High Interrupt Capacity: Capable of safely breaking fault currents up to 3000A at 48V DC.
• Combines Switching and Circuit Protection: Functions as both a manual switch and a thermal circuit breaker in one unit (not recommended for applications with high inrush currents).
• Wide Operating Temperature Range: Performs reliably in temperatures from -40° C to 85° C.
