Brand: Blue Sea Systems

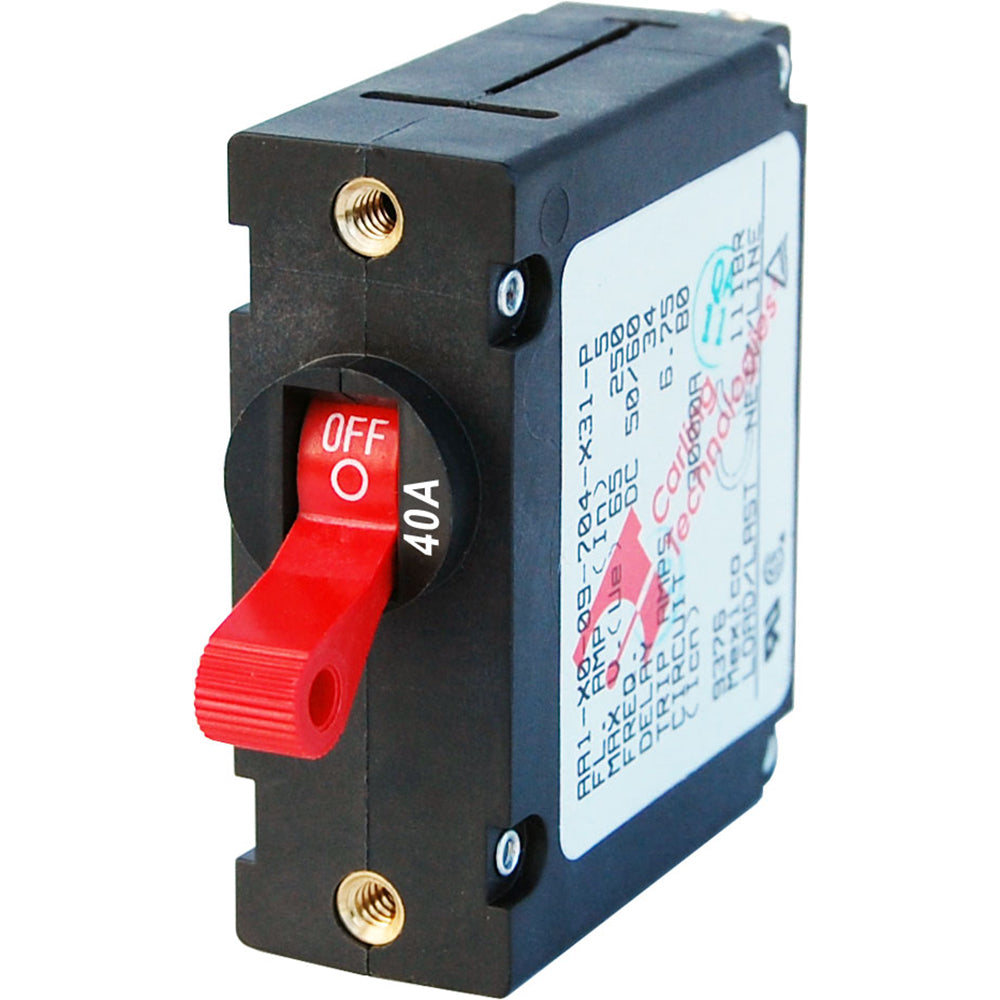

Blue Sea Systems 7225 AC/DC Single Pole Magnetic Circuit Breaker, 40 Amp
Blue Sea Systems 7225 AC/DC Single Pole Magnetic Circuit Breaker, 40 Amp
Sold out
The Blue Sea Systems 7225 is a 40 Amp single pole magnetic circuit breaker designed to combine switching and circuit protection into a single device. As a standard component for Blue Sea Systems electrical panels, it features a "Trip Free" design, ensuring it cannot be held in the ON position during a fault current condition.
- Amperage: 40 Amp
- Circuit Breaker Type: Magnetic Hydraulic - Trip Free
- Maximum Voltage: 277V AC / 65V DC
- Rated Switch Cycles: 10,000 at rated amperage and voltage
- Color: Red
- Part Number: 7225
- Certifications: UL 1077 Recognized, TUV Certified, CE marked, and CSA Certified
- Compliance: Meets all American Boat and Yacht Council (ABYC) standards
Regulatory note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Product facts
- CT SKU
- CT-100462
- Model / MPN
- 7225
- UPC / GTIN
- 632085072254
- Package dimensions
- 1" X 3" X 5"
- Package weight
- 0.16 lb
- Specifications
- Amperage = 40a
