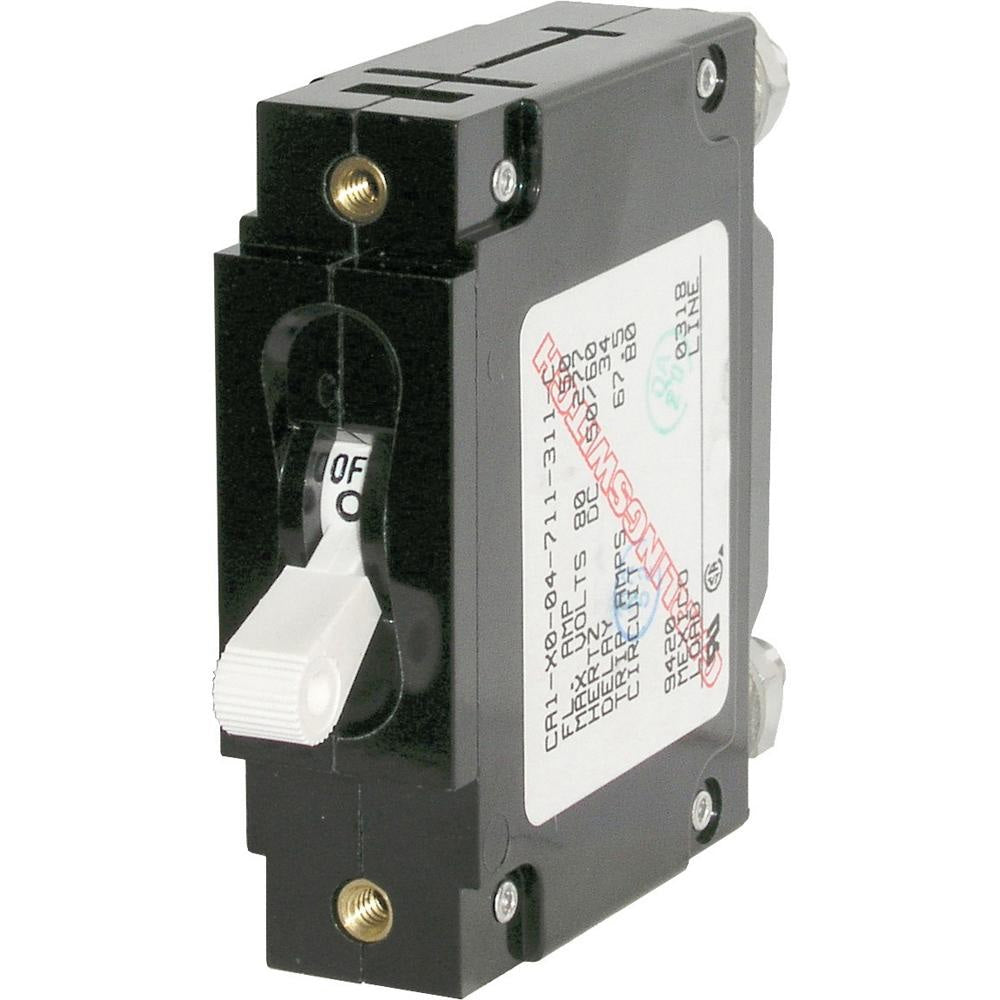

Blue Sea Systems 7248 C-Series White Toggle Circuit Breaker, 80A AC/DC

Ensure robust electrical protection and seamless control with the Blue Sea Systems 7248 C-Series White Toggle Circuit Breaker. This essential marine-grade component provides comprehensive overcurrent protection for vital systems such as inverters, bow thrusters, and windlasses. Combining both switching and circuit protection into a single, compact device, it simplifies your electrical panel while delivering reliable performance. Its magnetic hydraulic, "trip-free" design guarantees that the circuit will open during a fault condition, even if the toggle is manually held in the 'ON' position, enhancing safety on board. Upgrade your vessel's electrical safety and efficiency today.

Key Benefits & Specifications:

• Comprehensive Protection: 80A amperage rating provides reliable overcurrent protection for both DC and 120/240V AC circuits.
• Integrated Design: Combines switching and circuit protection into a single, space-saving device for streamlined electrical management.
• Enhanced Safety: Features a "Trip Free" magnetic hydraulic design, preventing the switch from being held closed during a fault current condition.
• Durable Construction: Engineered with 1/4-20 tin-plated brass terminal studs and includes #6-32 stainless steel mounting screws for secure installation.
• Wide Operating Range: Functions reliably in temperatures from -40°C to +85°C, suitable for demanding marine environments.
• High Performance: Rated for 10,000 switching cycles at rated amperage and voltage, ensuring long-term durability.
• Certified Compliance: Meets ABYC standards and is UL 1077 recognized for reliable circuit protection.
