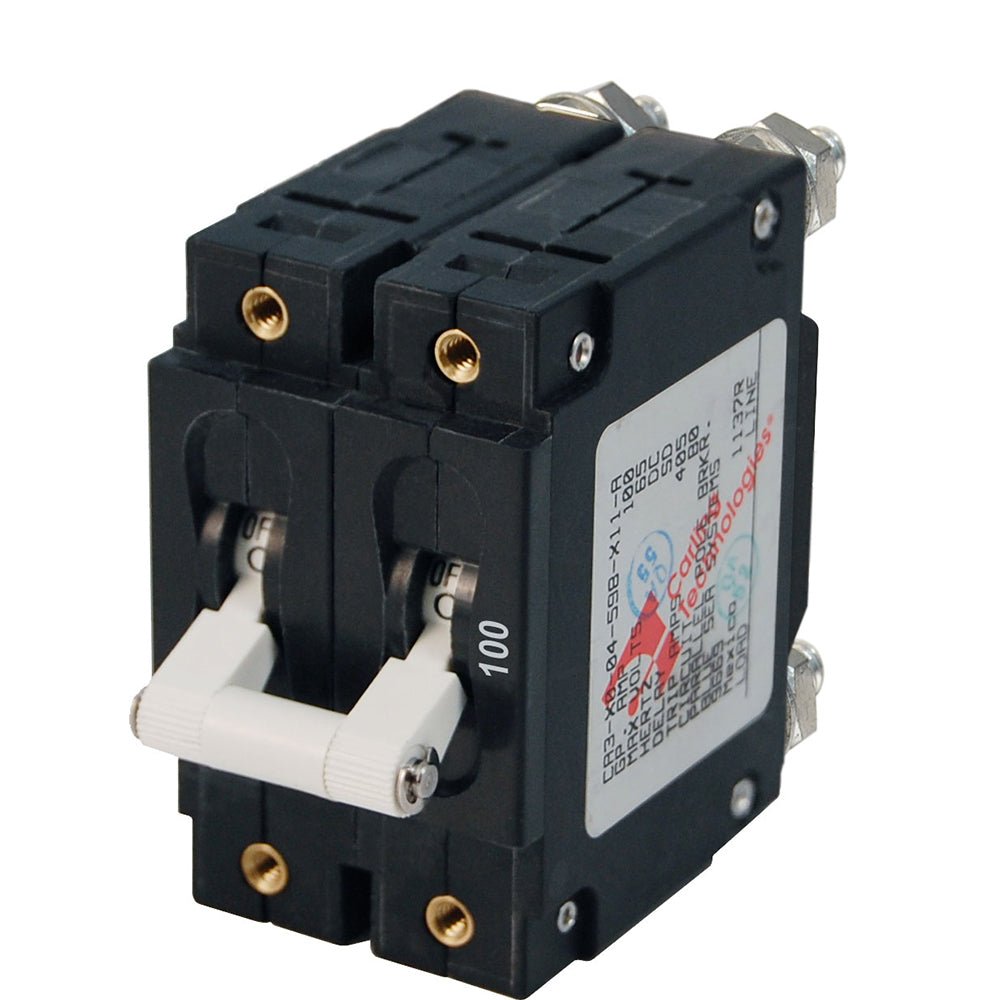

Blue Sea Systems C-Series White Toggle Circuit Breaker, Double Pole 100A AC

Ensure the reliability and safety of your marine electrical system with the Blue Sea Systems C-Series White Toggle Circuit Breaker. Designed for robust performance, this double pole, 100A AC circuit breaker provides essential overcurrent protection for critical circuits, including inverters, bow thrusters, and windlasses. Its magnetic-hydraulic 'trip-free' design prevents nuisance tripping from start-up surges while ensuring rapid response to true fault conditions. Upgrade your vessel's protection with a breaker engineered for demanding marine environments.

Key Features & Benefits:

• Double Pole Configuration: Ideal for 120V AC main circuit protection, switching both hot and neutral lines for enhanced safety.
• High Interrupt Capacity: Features a 5,000 Ampere Interrupt Capacity (AIC) at 120V AC, meeting ABYC requirements for robust protection against high fault currents.
• Magnetic-Hydraulic Design: Combines switching and circuit protection in a single device, expertly distinguishing between normal inrush currents and damaging overloads to prevent false trips.
• "Trip-Free" Safety: Cannot be held in the ON position during a fault current condition, guaranteeing the circuit remains open for maximum safety.
• Simultaneous Pole Trip: Ensures all poles trip concurrently if any single pole detects an overload, providing comprehensive circuit isolation.
• Wide Operating Temperature: Functions reliably across extreme conditions from -40°C to 85°C (-40°F to 185°F).
• Durable Terminals: Equipped with 1/4-20 tin-plated brass terminal studs, designed for secure and corrosion-resistant connections.

Recommended Applications:

• 120V AC Main Circuit Protection
• Inverter Overcurrent Protection
• Bow Thruster & Windlass Circuit Protection
