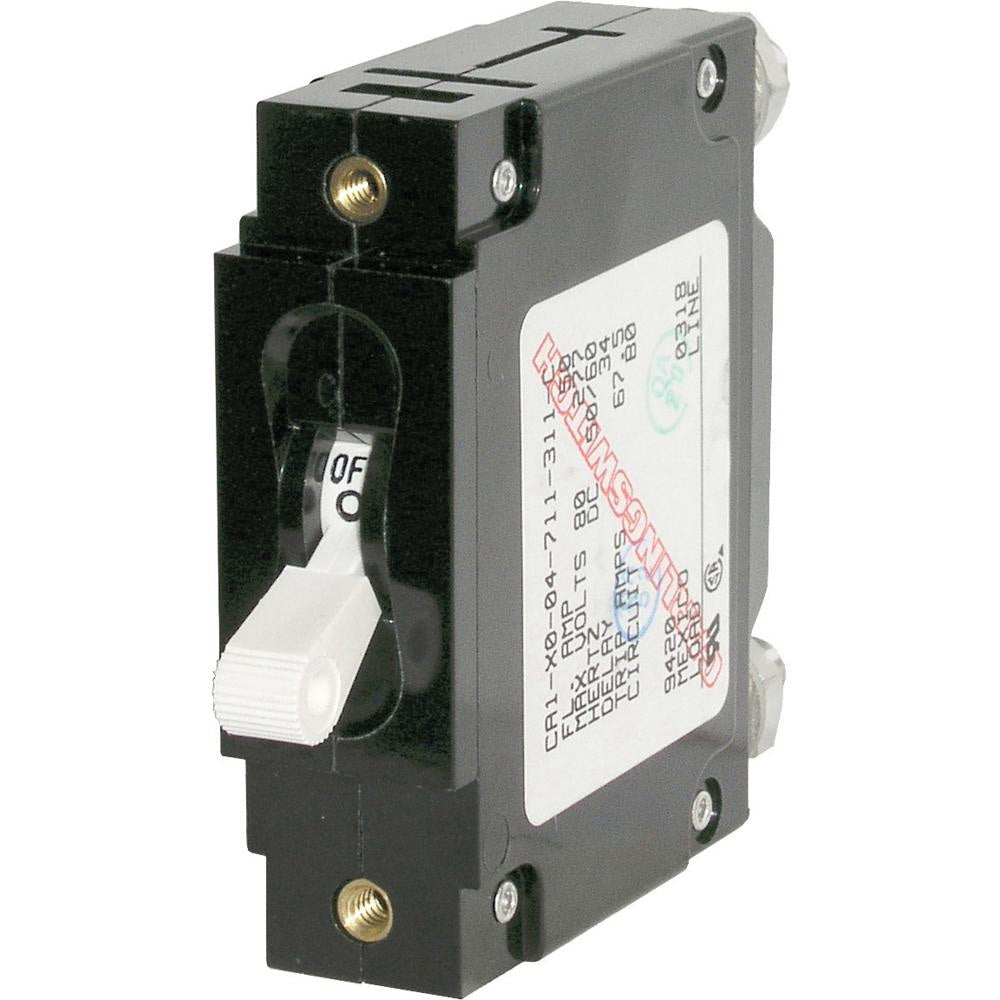

Blue Sea Systems C-Series 15A Single Pole Toggle Circuit Breaker

Ensure reliable electrical protection and versatile control with the Blue Sea Systems C-Series White Toggle Circuit Breaker. Designed for marine and harsh environments, this 15A single-pole breaker combines robust overcurrent protection with convenient switching in one compact unit. Its innovative "Trip-Free" mechanism enhances safety by preventing the breaker from being held in the ON position during a fault. Upgrade your electrical panel with confidence for inverters, bow thrusters, and windlasses.

Key Features & Benefits:

• Single Pole Configuration: Provides dedicated overcurrent protection and switching for individual circuits.
• 15A Rated Amperage: Delivers precise protection for demanding electrical loads.
• Magnetic-Hydraulic Delay Trip: Uniquely designed to ignore temporary current surges, preventing nuisance tripping from motor start-up or other inductive loads.
• "Trip Free" Design: Cannot be held closed when a fault is detected, ensuring superior safety and preventing system damage.
• Dual Functionality: Combines reliable circuit protection and manual switching into a single, space-saving device.
• High Interrupt Capacity: Offers robust protection with 5000A at 125V AC, 5000A at 240V AC, and 10000A at 80V DC, meeting ABYC requirements.
• Wide Operating Temperature: Performs reliably in extreme conditions, from -40° C to 85° C.
• Durable Construction: Engineered for long-term use with a tested 10,000 switching cycles.
• Tin-Plated Brass Terminals: Features 1/4"-20 tin-plated brass stud terminals for corrosion resistance and secure connections in marine environments.

Recommended Pairings: Integrate seamlessly with other Blue Sea Systems electrical panels for a complete and organized power management solution.
