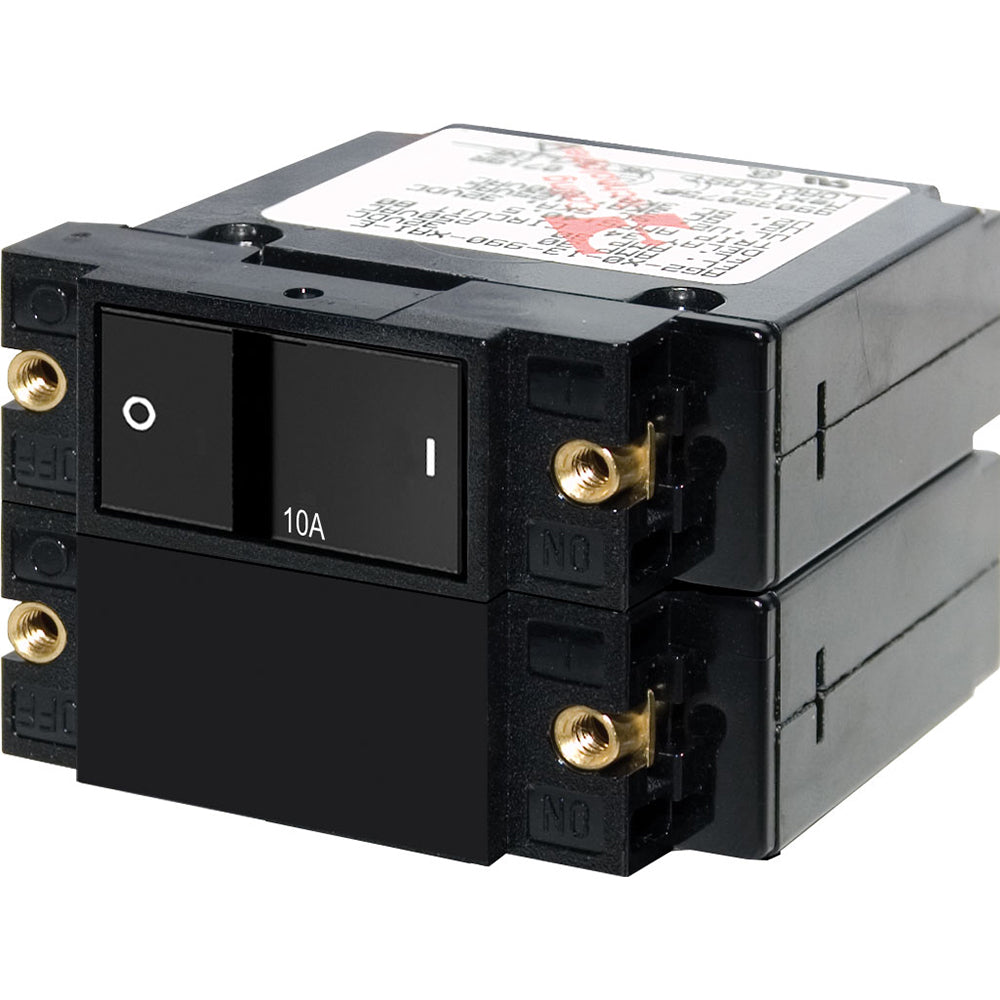

Blue Sea Systems A-Series Flat Rocker Double Pole Circuit Breaker, 10A

The Blue Sea Systems A-Series Flat Rocker Circuit Breaker is a double-pole, magnetic-hydraulic breaker designed for reliability in AC and DC electrical systems. It features a "trip free" design that prevents the switch from being held in the ON position during a fault condition, and the actuator color clearly indicates when the circuit is in the OFF position.

Key Features:

• Double pole configuration with 10A rating for both AC and DC applications
• Flat rocker actuator style with international ON/OFF symbols for versatile horizontal or vertical mounting
• Trip-free magnetic-hydraulic mechanism
• Maximum voltage ratings: 120V AC, 240V AC, or 32V DC
• Interrupt capacity: 3000A at 240V AC (1500A TUV rated) and 5000A at 32V DC
• Operating temperature range: -40°C to 85°C
• Hardware included: #6-32 stainless steel mounting screws and #10-32 stainless steel terminal screws
• Durability: Rated for 10,000 switching cycles
• Weight: 0.38 lb
• Regulatory note: This product contains chemicals, including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer and reproductive harm.

For proper installation, follow the specified torque requirements: 6 in-lb for mounting screws and 14 in-lb for terminal screws.
