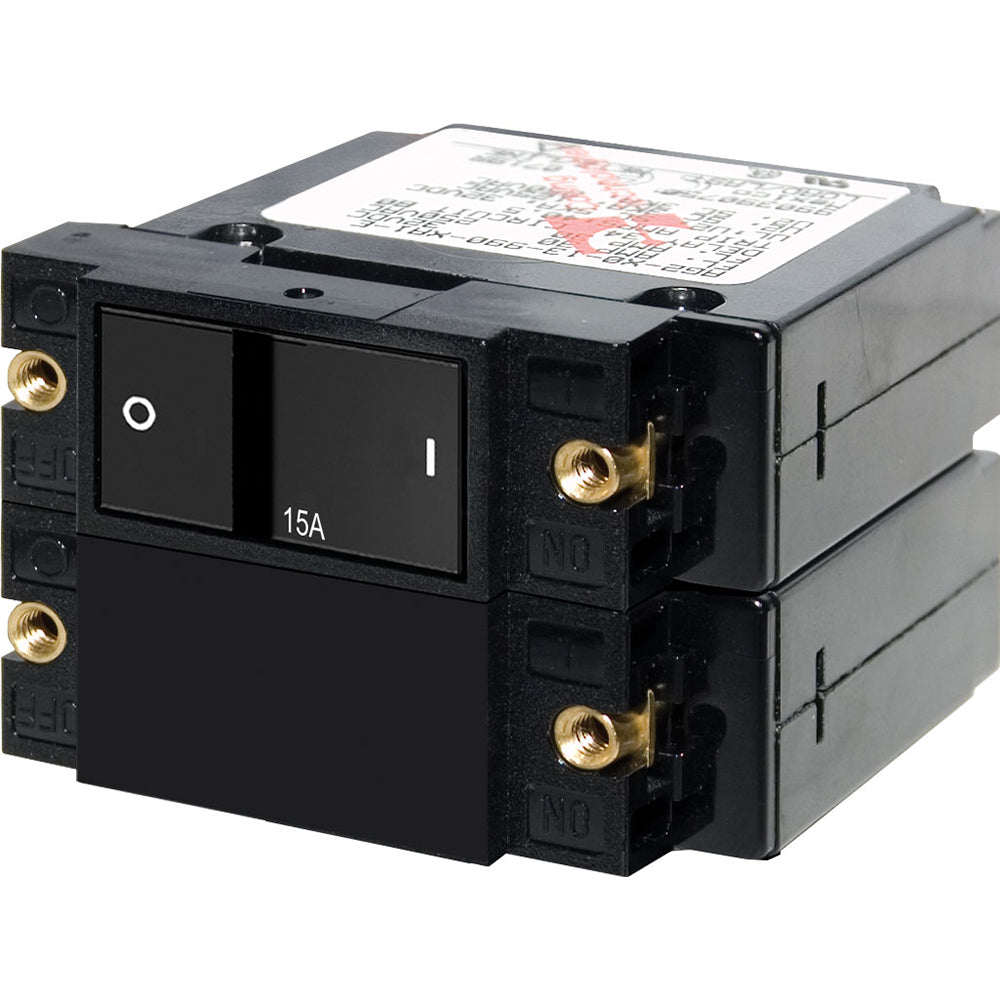

Blue Sea Systems A-Series Flat Rocker Double Pole Circuit Breaker - 15A

This Blue Sea Systems A-Series double pole circuit breaker is designed for reliable electrical protection in both AC and DC applications. Featuring a flat rocker style actuator, the device includes clear color-coded "OFF" positioning and a trip-free design that prevents the breaker from being held in the "ON" position during a fault condition.

• Amperage: 15A AC / 15A DC
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Interrupt Capacity: 3000A at 240V AC, 1500A at 240V AC (TUV), 5000A at 32V DC
• Magnetic hydraulic trip-free mechanism
• Operating temperature range: -40°C to 85°C
• Mounting: Vertical or horizontal with #6-32 stainless steel screws
• Terminal type: #10-32 stainless steel screws
• Switching cycles: 10,000
• Weight: 0.38 lb
• Regulatory note: This product contains chemicals including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.

Installation requirements: Mounting screws require 6 in-lb of torque, and terminal screws require 14 in-lb of torque.
