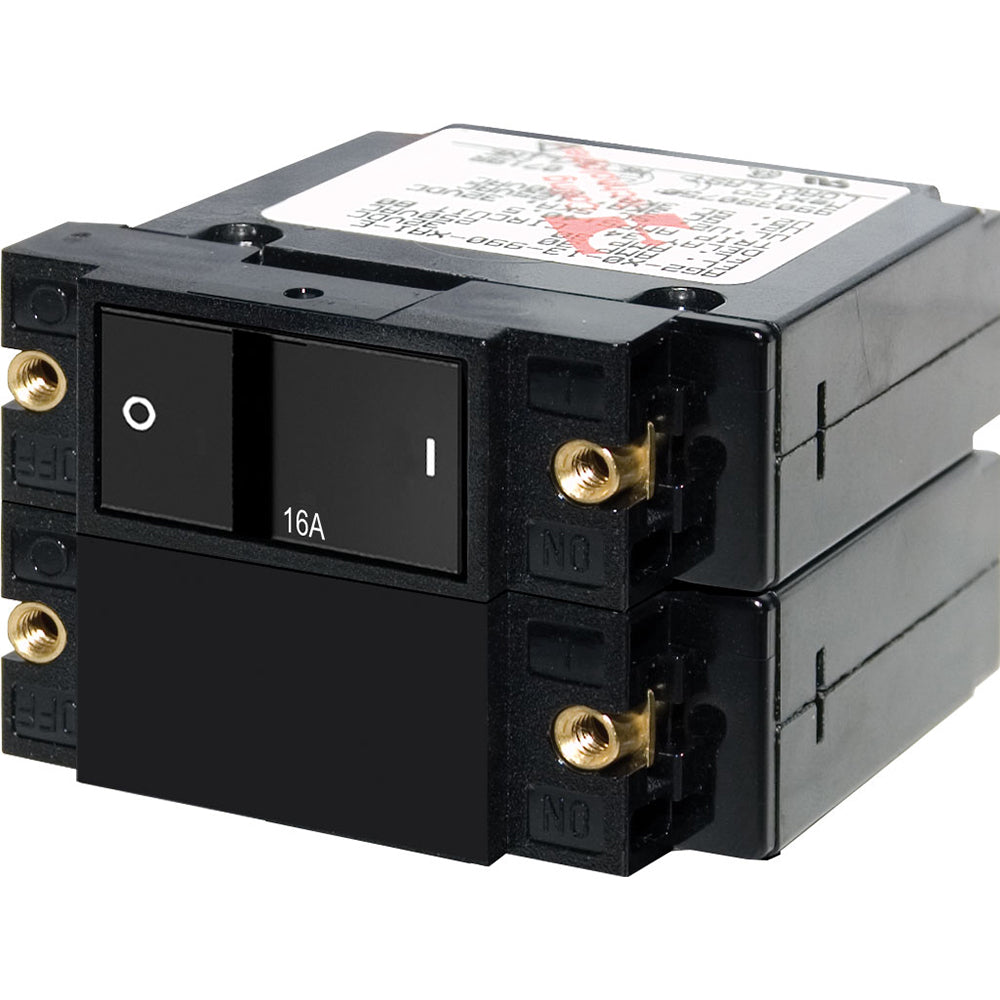

Blue Sea Systems A-Series Double Pole 16A Flat Rocker Circuit Breaker

Ensure superior electrical protection and control with the Blue Sea Systems A-Series Double Pole Flat Rocker Circuit Breaker. Designed for robust performance in marine and demanding environments, this magnetic hydraulic breaker combines reliable circuit protection with intuitive switching. Its 'Trip Free' design ensures safety by preventing the breaker from being held ON during fault conditions, while international ON/OFF symbols support versatile mounting. Trusted for its durability and adherence to rigorous standards, this circuit breaker is an essential upgrade for any electrical system. Upgrade your system with Blue Sea Systems' proven reliability today.

• Double Pole Protection: Effectively controls and protects two independent circuits simultaneously, ideal for main AC applications.
• Robust Amperage Rating: Rated for 16A AC and 16A DC, accommodating a wide range of electrical loads.
• Enhanced Safety: Features a 'Trip Free' mechanism that cannot be overridden, guaranteeing circuits remain open during fault conditions.
• Clear Status Indication: A flat rocker actuator with a distinct color indicator clearly displays the OFF position, preventing accidental activation.
• Flexible Installation: Supports both vertical and horizontal mounting configurations with international ON/OFF symbols for universal understanding.
• Wide Operating Temperature: Functions reliably in extreme conditions, from -40° C to 85° C (-40° F to 185° F).
• High Interrupt Capacity: Offers significant fault current interruption capabilities (3000A @ 240V AC / 5000A @ 32V DC) for critical safety.
• Durable Construction: Engineered for longevity with 10,000 switching cycles, ensuring extended operational life.
• Certified Compliance: UL 1077 recognized, TUV certified, CE marked, and CSA certified, meeting high international safety and performance standards.

• Circuit Breaker Type: Magnetic Hydraulic - Trip Free
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Mounting Screw: #6-32 Stainless Steel
• Mounting Screw Torque: 6 in-lb (0.68 Nm)
• Terminal Screw: #10-32 Stainless Steel
• Terminal Screw Torque: 14 in-lb (1.58 Nm)
• Weight: 0.38lb (0.17 kg)

This A-Series circuit breaker is the industry standard for Blue Sea Systems' electrical panels, offering seamless integration and reliable performance.
