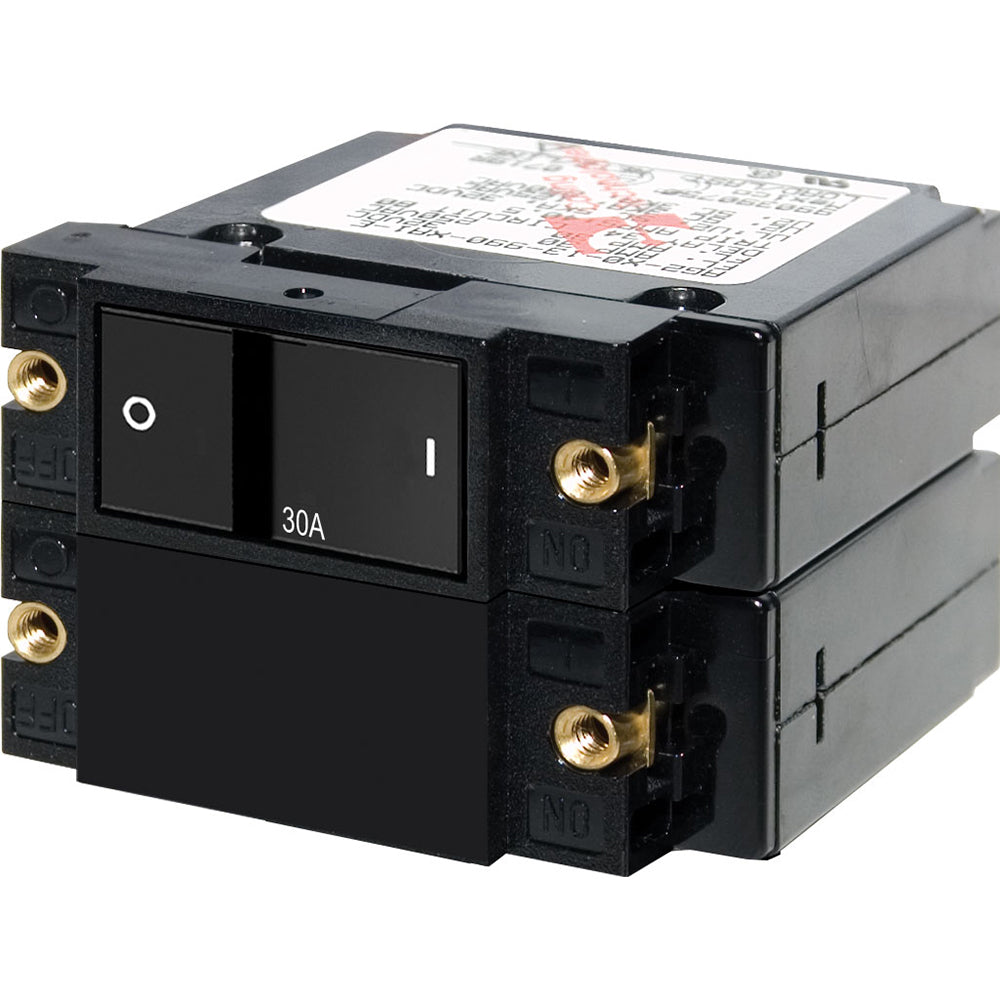

Blue Sea Systems A-Series Flat Rocker Circuit Breaker, 30A Double Pole

Ensure robust electrical protection and reliable operation in your marine or automotive systems with the Blue Sea Systems 7414 A-Series Flat Rocker Circuit Breaker. Designed for critical AC and DC applications, this 30A double pole breaker combines switching and circuit protection in a single, panel-mounted device. Its magnetic-hydraulic design delivers precise, trip-free protection against overcurrents, enhancing safety and system longevity. Trust Blue Sea Systems for industry-standard quality that meets ABYC standards. Upgrade your circuit protection today.

• Double Pole Protection: Simultaneously switches both hot and neutral lines for enhanced safety, tripping all poles if any one pole detects a fault.
• Magnetic-Hydraulic Trip-Free Design: Cannot be held ON during an overcurrent condition, ensuring immediate and positive circuit interruption. This mechanism also avoids nuisance trips from temporary current surges, common with motor startup.
• High Interrupt Capacity: Offers significant protection with a 3000A interrupt capacity at 240V AC and 5000A at 32V DC, safeguarding against severe fault currents.
• Clear Indication: A vibrant color actuator clearly indicates the "OFF" position, enhancing usability and safety during system maintenance.
• Versatile Mounting: International ON/OFF symbols support both vertical and horizontal mounting configurations, providing installation flexibility.
• Flush Rocker Actuator: Features a flush design in the "ON" position, preventing accidental switching and maintaining a clean panel aesthetic.
• Wide Operating Temperature Range: Performs reliably in extreme conditions, from -40°C to 85°C, suitable for diverse environments.
• Durable Construction: Rated for 10,000 switching cycles at rated amperage and voltage, ensuring long-term dependability.
• ABYC Compliant: Meets American Boat and Yacht Council (ABYC) standards, confirming its suitability for marine electrical systems.

• Amperage Rating: 30A AC / 30A DC
• Maximum Voltage: 120V AC / 240V AC / 32V DC
• Mounting Screws: #6-32 Stainless Steel (Recommended torque: 6 in-lb / 0.68 Nm)
• Terminal Screws: #10-32 Stainless Steel (Recommended torque: 14 in-lb / 1.58 Nm)
• Weight: 0.38 lb (0.17 kg)

Ideal for use with Blue Sea Systems 360 Series panels and SMS panel enclosures for seamless integration and optimal system performance.
