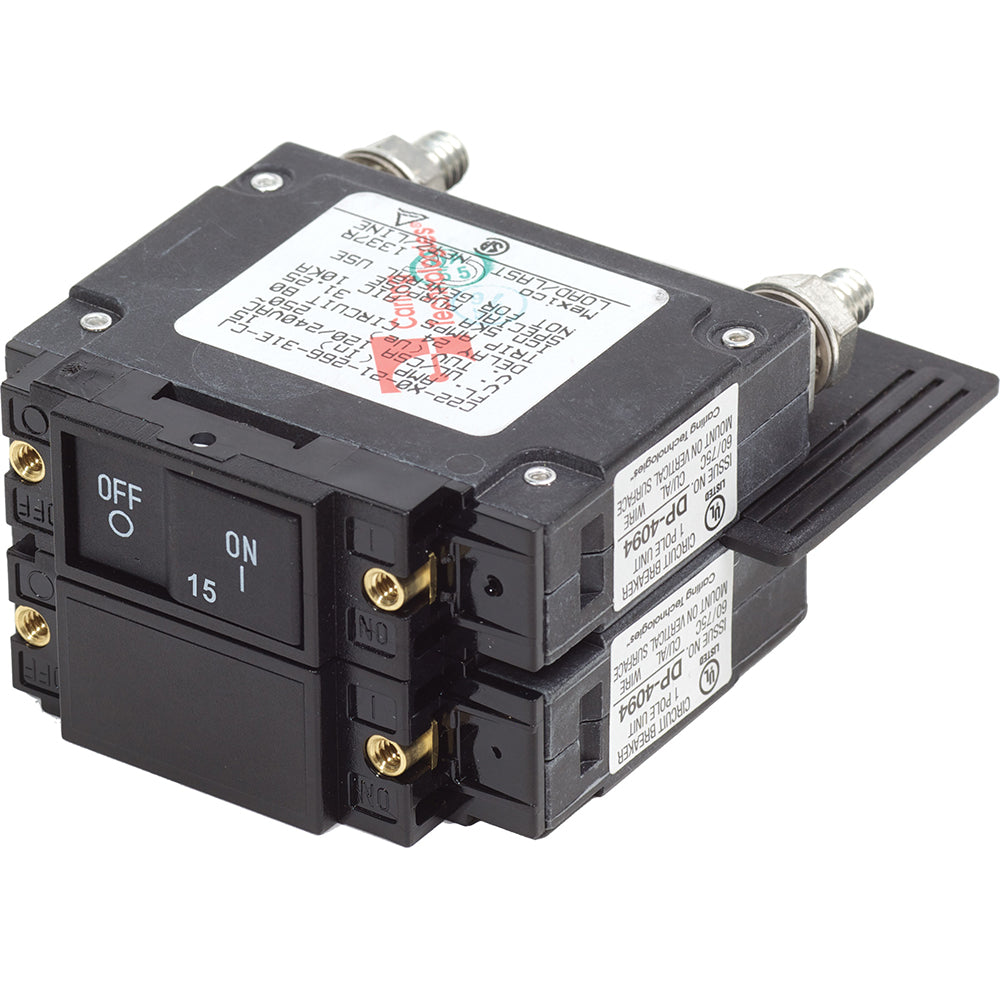

Blue Sea Systems 7462 UL-489 Circuit Breaker, 15A 240V AC, Flat Rocker

Ensure robust and reliable electrical protection in demanding marine environments with the Blue Sea Systems 7462 UL-489 Circuit Breaker. Designed to meet stringent UL-489 specifications, this 2-pole, 15A breaker is essential for safeguarding systems on Navy, Army, Coast Guard, and other CFR 46 regulated vessels. Its magnetic hydraulic, trip-free mechanism combines switching and superior circuit protection into a single device, preventing accidental switching with its flush flat rocker actuator when in the 'ON' position. Upgrade your vessel's electrical safety and compliance today.

Key Benefits & Features:

• UL-489 Compliance: Meets strict UL-489 specifications for use in demanding marine and military applications, including Navy, Army, Coast Guard, and CFR 46 vessels.
• Enhanced Safety: Features a flush flat rocker actuator to resist accidental switching when in the 'ON' position, ensuring reliable operation.
• Magnetic Hydraulic Trip-Free Design: Cannot be held 'ON' during fault current conditions, combining switching and comprehensive circuit protection in one device.
• Double Pole Protection: A 2-pole design that trips all poles if any one pole detects a fault, ideal for 120V AC main circuit breaker applications to switch both hot and neutral.
• High Interrupt Capacity: Offers a 5000A interrupt capacity to safely handle significant overcurrent events.
• Wide Operating Temperature: Functions reliably across a broad temperature range from -40° C to 85° C, suitable for diverse conditions.
• Durable & Long-lasting: Engineered for 10,000 switching cycles, providing extended service life.

Specifications:

• Amperage: 15A AC
• Poles: 2
• Maximum Voltage: 240V AC
• Circuit Breaker Type: Magnetic Hydraulic—Trip free
• Terminal Stud Torque: 35 in-lb (3.95 Nm)
• Interrupt Capacity: 5000A
• Minimum Operating Temperature: -40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw: #6-32 SS
• Mounting Screw Torque: 8 in-lb (0.9 Nm)
• Switching Cycles: 10000
• Weight: 0.23lb (0.1 kg)

Recommended Pairings: This circuit breaker is an industry standard for Blue Sea Systems electrical panels, offering seamless integration and optimal performance.
