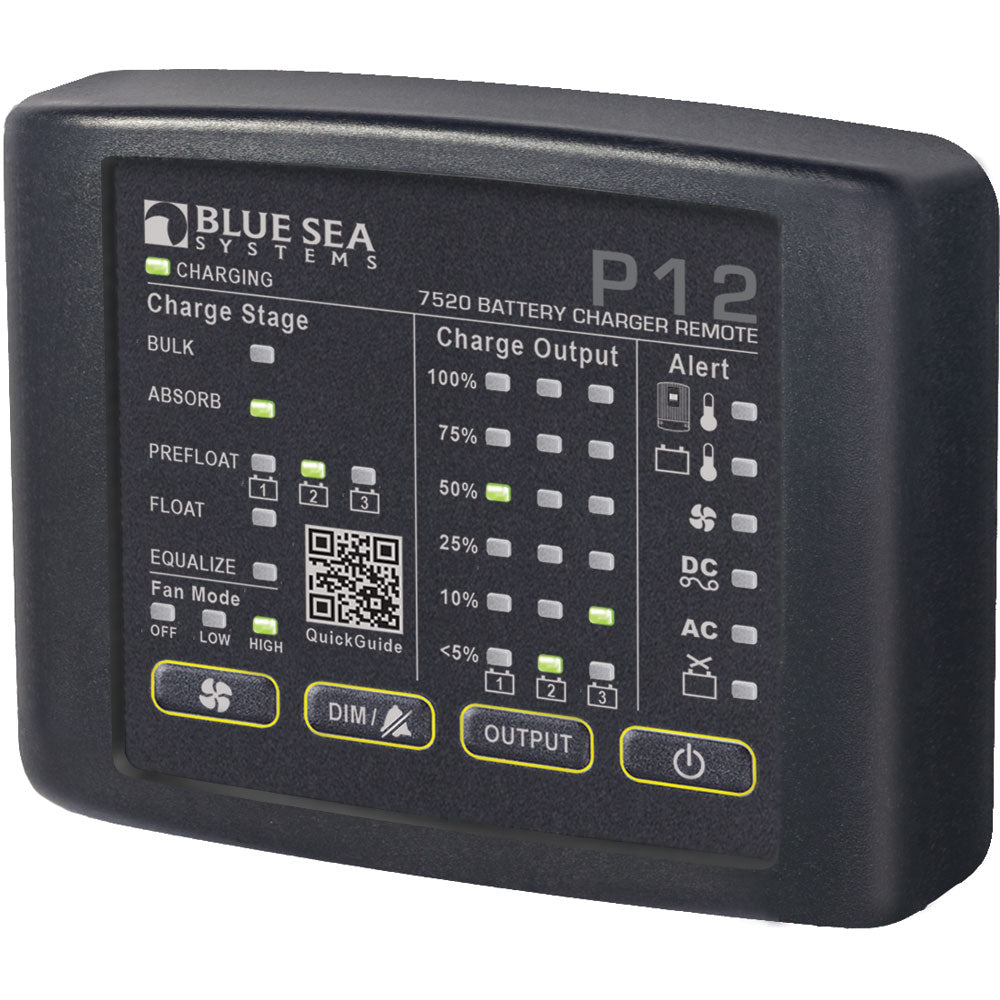

Blue Sea Systems P12 Battery Charger LED Remote, Cat5e Communication

Gain precise control and real-time monitoring over your Blue Sea Systems P12 battery charger with this advanced LED Remote. Designed for seamless integration, this remote provides comprehensive diagnostic information and intuitive control, ensuring optimal charging performance and extending battery life. Upgrade your vessel's power management system for smarter, more efficient operation today.

In the Box:

• Remote Assembly
• Mounting Screws
• Cover
• Mounting Gasket
• 25 ft Cat5e Cable
• Dielectric Grease

Key Benefits & Features:

• Comprehensive LED Indicators: Provides instant visual confirmation of charging status, current charge stage (Bulk, Absorption, Float), equalization mode, fan operation, charge output percentage, and critical alerts for quick diagnostics.
• Four Control Buttons:
• Fan: User-adjustable settings (Off, Low, High) allow customization of charger fan speed for noise reduction or enhanced cooling.
• Dim/Alarm: Adjusts display LED brightness for optimal visibility and silences audible alarms for comfort.
• Output: User-adjustable charger output provides flexibility to reduce power consumption when AC source limitations exist.
• Power: Conveniently places the P12 Battery Charger into standby mode.
• Reliable Connectivity: Utilizes a standard Cat5e communications cable for secure and efficient data transfer and power.
• Extended Reach: Supports a maximum cable length of 150 ft (45.72 m), offering flexible installation options for remote monitoring locations.

Specifications:

• Dimensions (H x W x D): 3.01 in (76.45 mm) x 4.15 in (105.41 mm) x 0.95 in (24.13 mm)
• Weight: 0.98 lbs (0.44 kg)
• Operating Current: <300mA (sourced from charger)
• Communications Protocol: Proprietary
• Minimum Operating Temperature: -20° C
• Maximum Operating Temperature: 60° C

Compatibility:

This LED remote is specifically designed for use with Blue Sea Systems P12 Series Battery Chargers, including 25A and 40A models.
