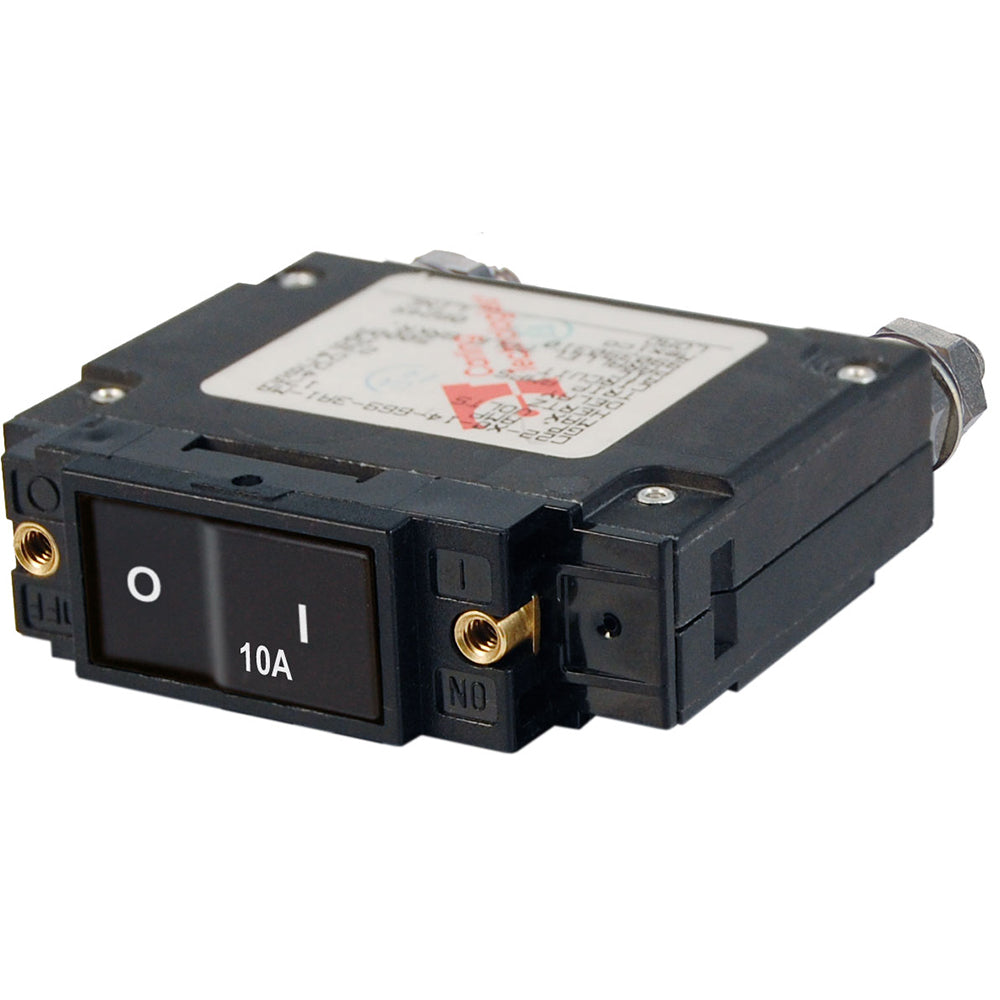

Blue Sea Systems C-Series Flat Rocker Circuit Breaker, 10A AC/DC

Ensure robust overcurrent protection and reliable switching for your marine electrical systems with the Blue Sea Systems C-Series Flat Rocker Circuit Breaker. Designed for demanding environments, this single-pole, 10A breaker combines essential safety with convenient operation, protecting critical components like inverters, bow thrusters, and windlasses. Its ignition-protected design makes it safe for installation on gasoline-powered boats, providing peace of mind on the water. Upgrade your vessel's electrical safety and control today.

Key Benefits & Specifications:

• Precision Overcurrent Protection: A 10A AC/DC rating precisely safeguards your electrical components from damaging surges.
• Wide Voltage Compatibility: Rated for a maximum of 240V AC / 48V DC, offering versatile application across various marine electrical systems.
• Ignition Protected: Certified safe for installation aboard gasoline-powered boats, meeting SAE J1171 and UL 1500 requirements for external ignition protection.
• "Trip Free" Mechanism: Prevents the breaker from being held closed after an overcurrent trip, enhancing safety by ensuring the circuit remains open until manually reset.
• Dual Functionality: Efficiently combines circuit protection and switching into a single, compact device, simplifying panel design and operation.
• Flat Rocker Actuator: Features a flush "ON" position to prevent accidental switching, while a distinct color indicator clearly signals the "OFF" position.
• High Interrupt Capacity: Capable of withstanding significant fault currents, including 3000A @ 120V AC, 3500A @ 240V AC, and 5000A @ 32V DC, for superior system integrity.
• Extreme Temperature Resilience: Operates reliably across a broad temperature range from -40° C to 85° C (-40°F to 185°F), ensuring consistent performance in diverse marine conditions.
• Durable Construction: Engineered for long-term use with 10,000 switching cycles, featuring a 1/4-20 tin-plated brass terminal stud and stainless steel #6-32 mounting screws.

Recommended Pairings:

• Ideal for use with Blue Sea Systems 360 electrical panels and modules for seamless integration and a professional finish.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
