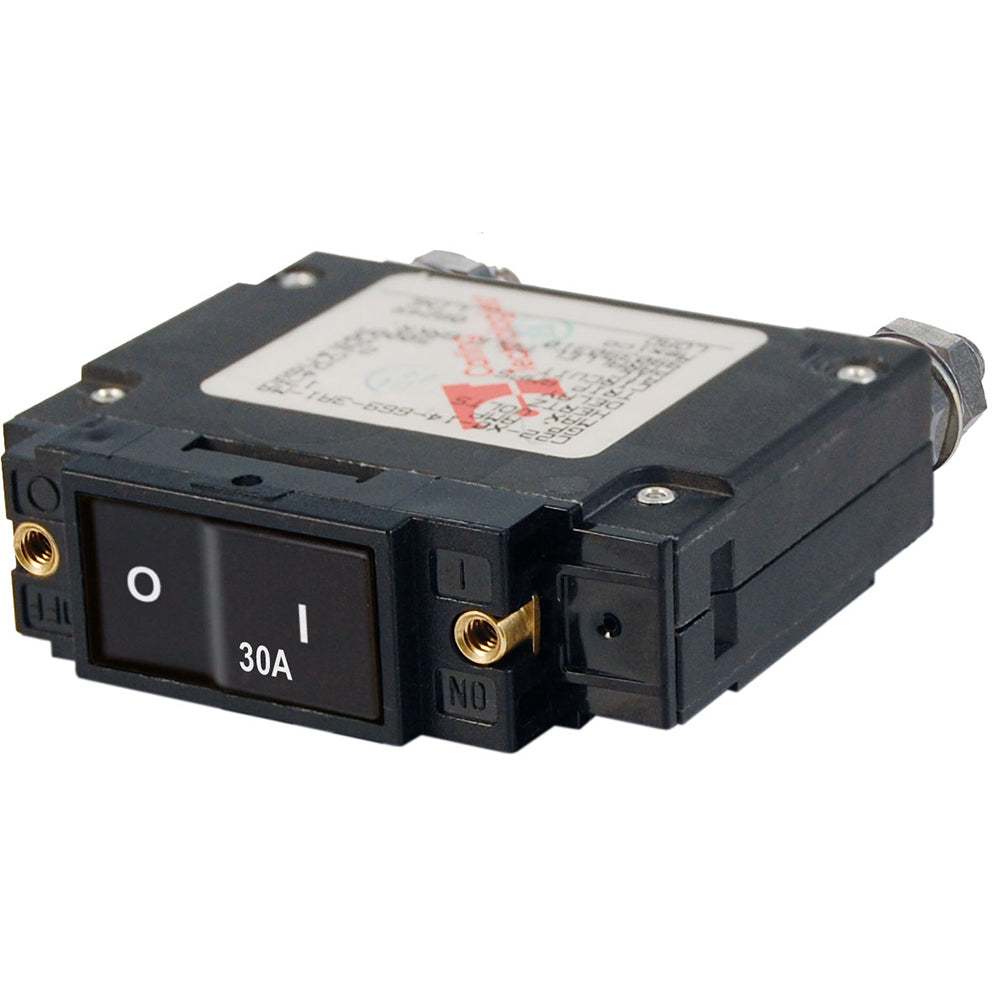

Blue Sea Systems 7545 C-Series Flat Rocker Circuit Breaker, 30 A, Single Pole

The Blue Sea Systems 7545 C-Series circuit breaker combines switching and overcurrent protection in a single-pole, 30 A flat rocker design.

• Rated for 30 A AC and 30 A DC; maximum voltage is 240 V AC and 48 V DC.
• Provides overcurrent protection for inverters, bow thrusters, and windlasses.
• The rocker actuator sits flush in the ON position, and its color indicates the OFF position.
• Trip-free magnetic hydraulic operation prevents the breaker from being held closed after a trip.
• Ignition protected for installation aboard gasoline-powered boats.
• Interrupt capacity: 3,000 A at 120 V AC, 3,500 A at 240 V AC, and 5,000 A at 32 V DC.
• Terminal stud torque: 35 in-lb (3.95 Nm); terminal stud: 1/4-20 tin-plated brass.
• Mounting screw: #6-32 stainless steel; mounting screw torque: 6 in-lb (0.68 Nm).
• Operating temperature range: -40 deg C to 85 deg C; rated for 10,000 switching cycles.
• Product weight: 0.38 lb (0.17 kg). Package dimensions: 4 x 3 x 2 in.
• Country of origin: Mexico.
• Regulatory note: This product can expose you to di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
