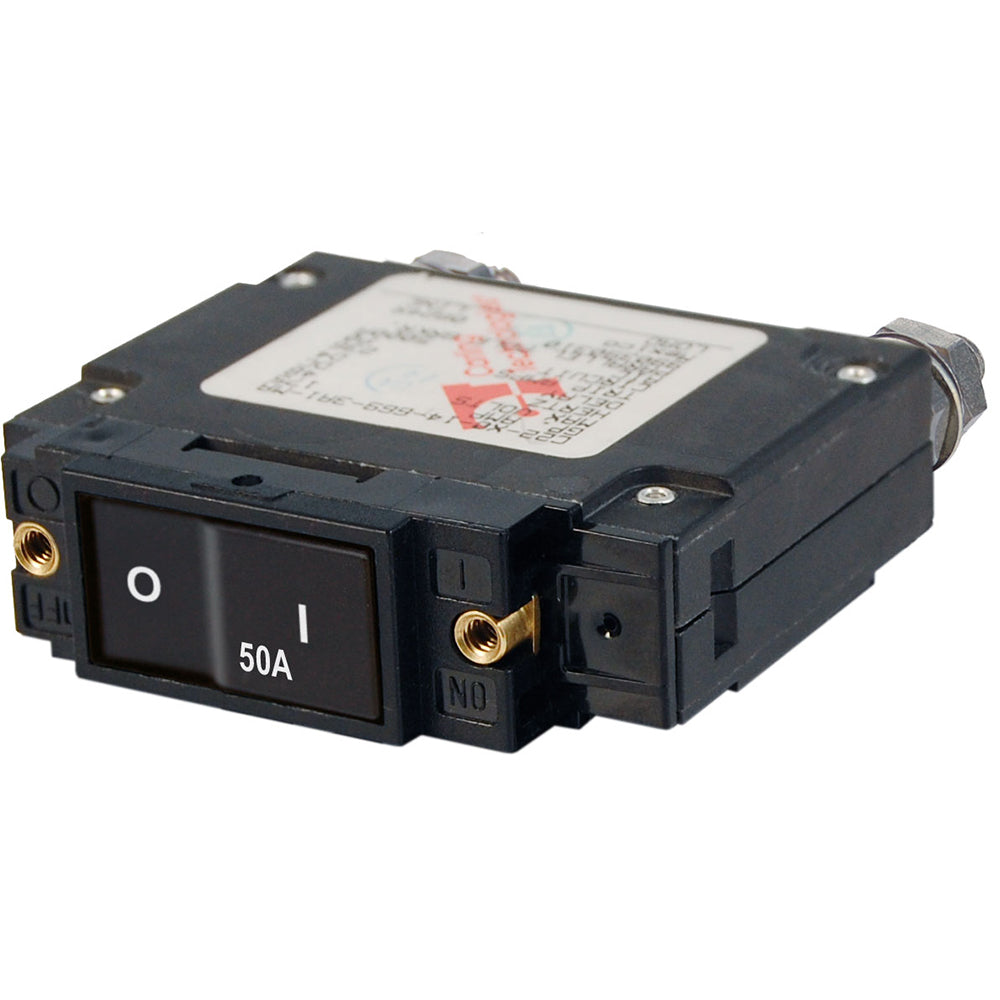

Blue Sea Systems C-Series 50A Single Pole Flat Rocker Circuit Breaker
Blue Sea Systems C-Series 50A Single Pole Flat Rocker Circuit Breaker
4 available
The Blue Sea Systems C-Series Flat Rocker Circuit Breaker combines switching and overcurrent protection into a single, reliable device. Designed with a flush rocker actuator in the ON position to prevent accidental switching, this breaker features a colored actuator to clearly indicate the OFF position.
- Amperage: 50A AC / 50A DC
- Max Voltage: 240V AC / 48V DC
- Type: Magnetic hydraulic, trip-free mechanism
- Poles: Single pole
- Safety: Ignition protected for use on gasoline-powered boats
- Interrupt Capacity: 3000A at 120V AC, 3500A at 240V AC, 5000A at 32V DC
- Durability: 10,000 switching cycles
- Operating Range: -40°C to 85°C
- Hardware: 1/4-20 tin-plated brass terminal studs; #6-32 stainless steel mounting screws
- Torque Specs: 35 in-lb for terminal studs; 6 in-lb for mounting screws
- Weight: 0.38 lb
Regulatory note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Product facts
- CT SKU
- CT-105423
- Model / MPN
- 7546
- UPC / GTIN
- 632085075460
- Package dimensions
- 2" X 2" X 4"
- Package weight
- 0.28 lb
- Specifications
- Amperage = 50a
