Brand: Blue Sea Systems

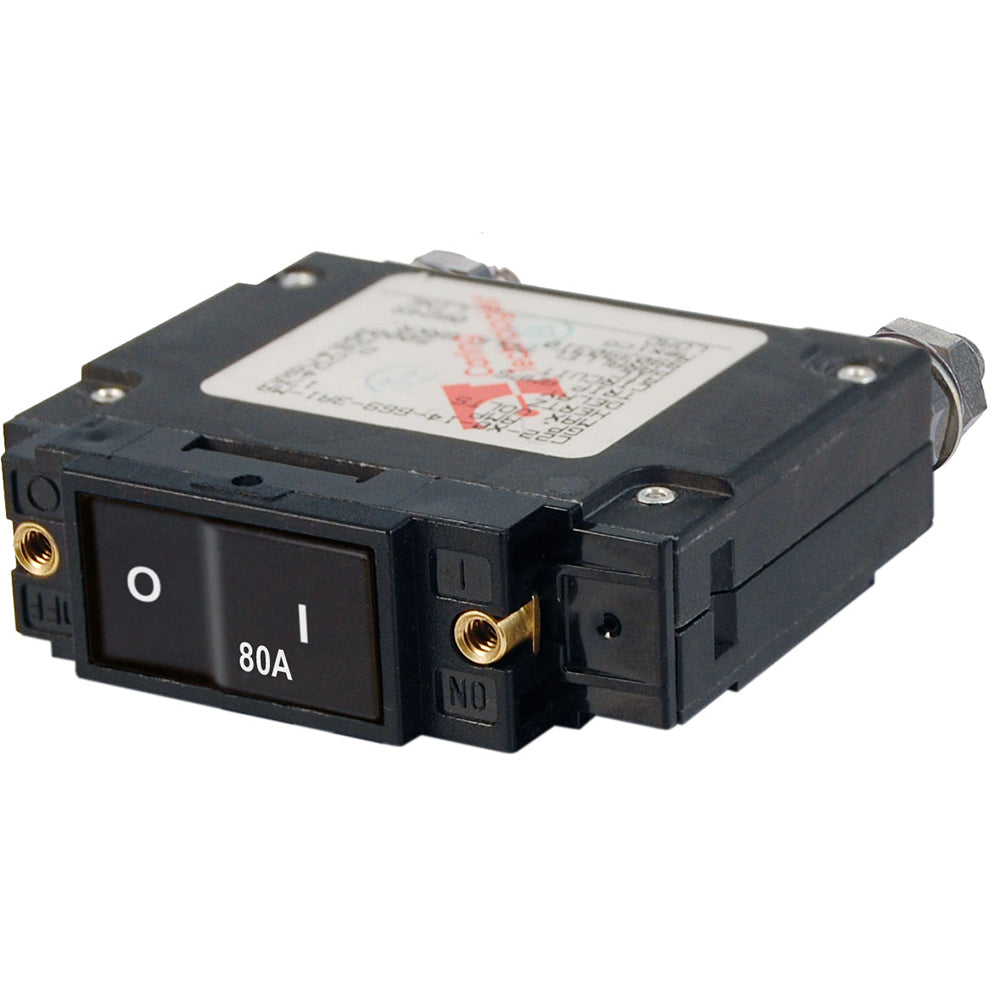

Blue Sea Systems 7548 C-Series Flat Rocker Circuit Breaker, Single Pole, 80A
Blue Sea Systems 7548 C-Series Flat Rocker Circuit Breaker, Single Pole, 80A
Sold out
The Blue Sea Systems 7548 C-Series is a single-pole, 80A flat rocker circuit breaker designed to provide reliable overcurrent protection and switching for marine systems such as inverters, bow thrusters, and windlasses. This magnetic-hydraulic device features a trip-free design that prevents it from being held closed after a fault and is ignition-protected for safe installation on gasoline-powered boats.
- Design: Flat rocker actuator sits flush when ON to prevent accidental switching; colored actuator indicates OFF position.
- Amperage: 80A AC / 80A DC.
- Voltage: Maximum 240V AC / 48V DC.
- Interrupt Capacity: 3000A at 120V AC, 3500A at 240V AC, and 5000A at 32V DC.
- Durability: Rated for 10,000 switching cycles with an operating temperature range of -40°C to 85°C.
- Installation: Uses #6-32 stainless steel mounting screws (6 in-lb torque) and 1/4-20 tin-plated brass terminal studs (35 in-lb torque).
- Regulatory note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Product facts
- CT SKU
- CT-105425
- Model / MPN
- 7548
- UPC / GTIN
- 632085075484
- Package dimensions
- 2" X 3" X 5"
- Package weight
- 0.4 lb
- Specifications
- Amperage = 80a
