Brand: Blue Sea Systems
Blue Sea Systems 7549 C-Series Flat Rocker Single Pole Circuit Breaker, 100A
Blue Sea Systems 7549 C-Series Flat Rocker Single Pole Circuit Breaker, 100A
Sold out

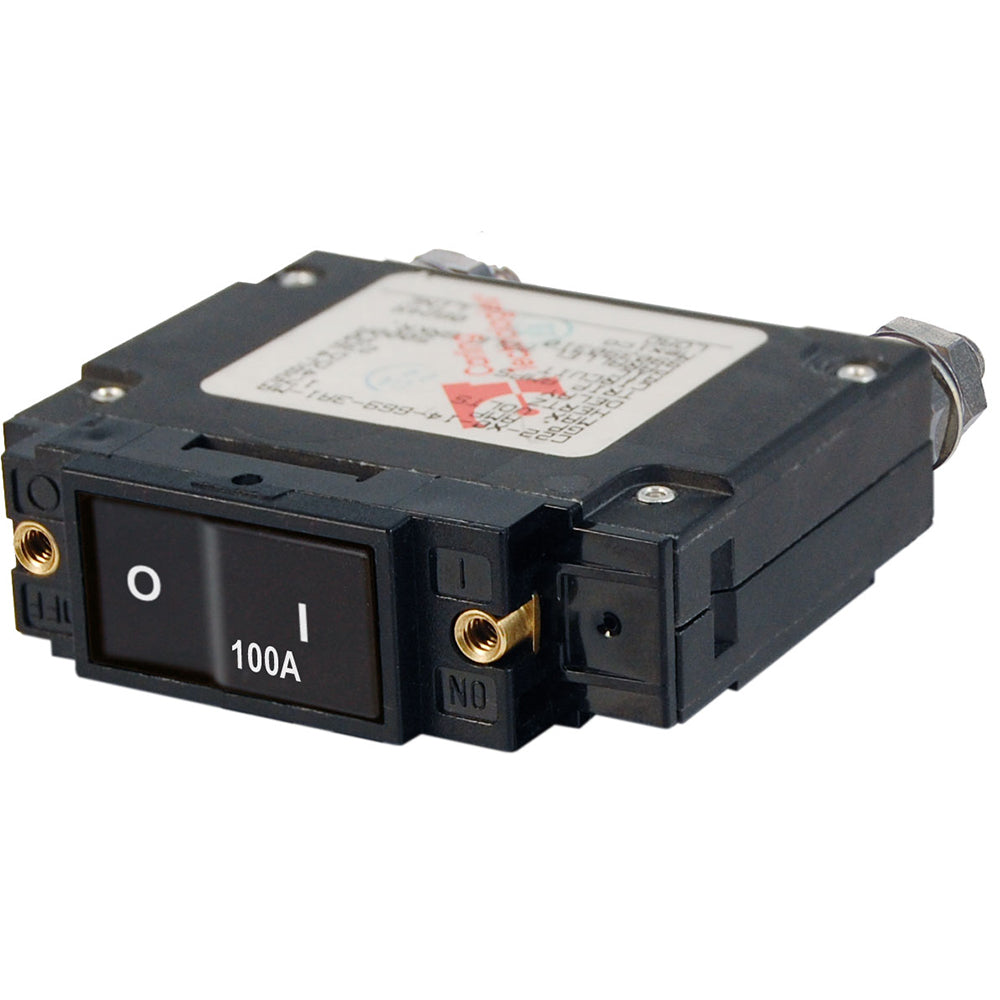

The Blue Sea Systems 7549 C-Series Flat Rocker Circuit Breaker provides reliable overcurrent protection and switching for high-demand marine applications, such as inverters, bow thrusters, and windlasses. Designed with a flush rocker actuator to prevent accidental switching, this single-pole, magnetic-hydraulic breaker is ignition protected and suitable for installation in gasoline-powered vessels.
Key Features and Specifications:
- Amperage: 100A AC/DC
- Maximum Voltage: 240V AC / 48V DC
- Interrupt Capacity: 3000A at 120V AC, 3500A at 240V AC, 5000A at 32V DC
- Trip-free mechanism prevents the device from being held closed after a fault
- Actuator style: Flat rocker with color-coded OFF position
- Terminal Stud: 1/4-20 tin-plated brass with 35 in-lb torque rating
- Operating Temperature: -40°C to 85°C
- Includes #6-32 stainless steel mounting screws
- Switching Cycles: 10,000
- Weight: 0.38 lbs
Regulatory Note: This product contains chemicals, including di(2-ethylhexyl)phthalate (DEHP), known to the State of California to cause cancer, birth defects, or other reproductive harm.
Product facts
- CT SKU
- CT-105426
- Model / MPN
- 7549
- UPC / GTIN
- 632085075491
- Package dimensions
- 2" X 3" X 5"
- Package weight
- 0.4 lb
- Specifications
- Amperage = 100a
