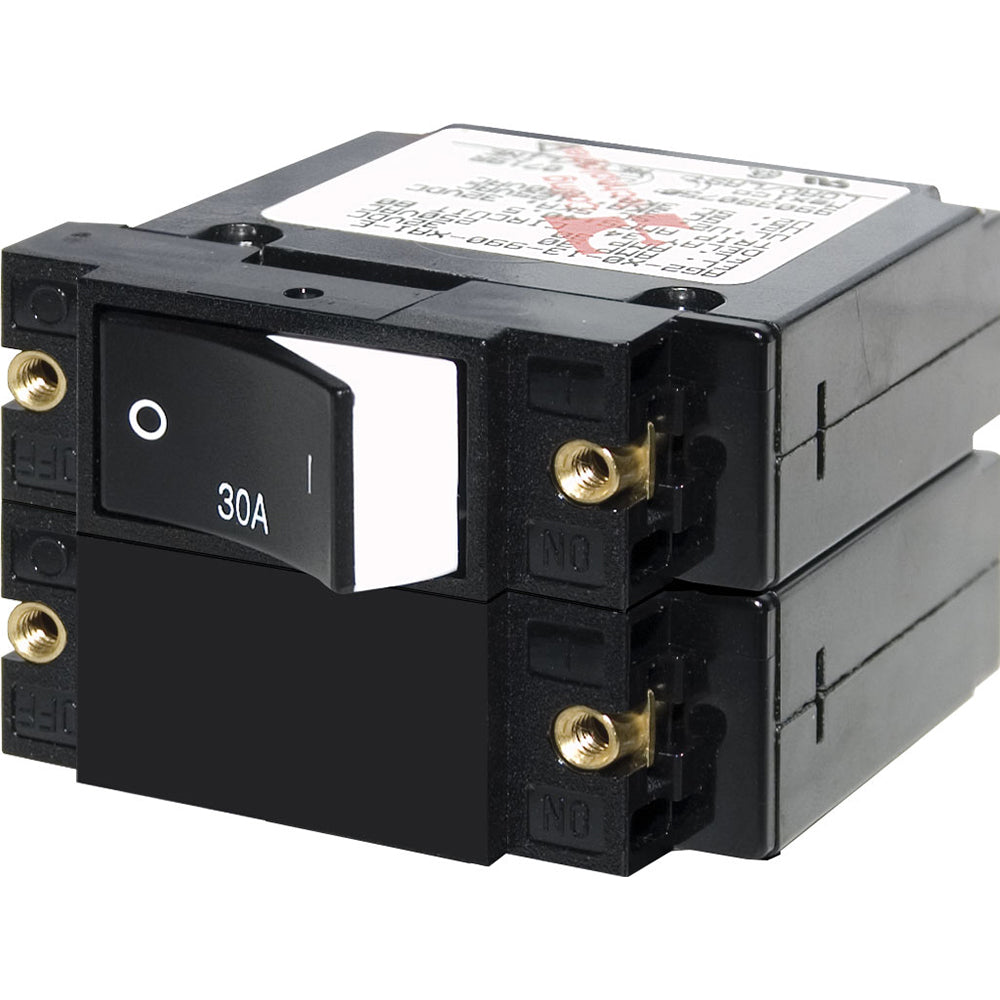

Blue Sea Systems A-Series Raised Rocker Double Pole Circuit Breaker, 30A

This Blue Sea Systems A-Series raised rocker circuit breaker is a double-pole magnetic hydraulic device rated for 30A. Its trip-free design ensures the breaker cannot be held in the ON position during a fault current condition, and it features an actuator that clearly indicates the OFF position.

Key Features:

• Amperage: 30A AC or 30A DC
• Maximum Voltage: 120V/240V AC and 32V DC
• Interrupt Capacity: 3000A at 240V AC (1500A at 240V AC TUV) and 5000A at 32V DC
• Switching Cycles: 10,000
• Operating Temperature: -40°C to 85°C
• Includes stainless steel #6-32 mounting screws and #10-32 terminal screws
• International ON/OFF symbols support vertical or horizontal installation
• Weight: 0.38 lb

Installation Specifications:

• Mounting screw torque: 6 in-lb (0.68 Nm)
• Terminal screw torque: 14 in-lb (1.58 Nm)
