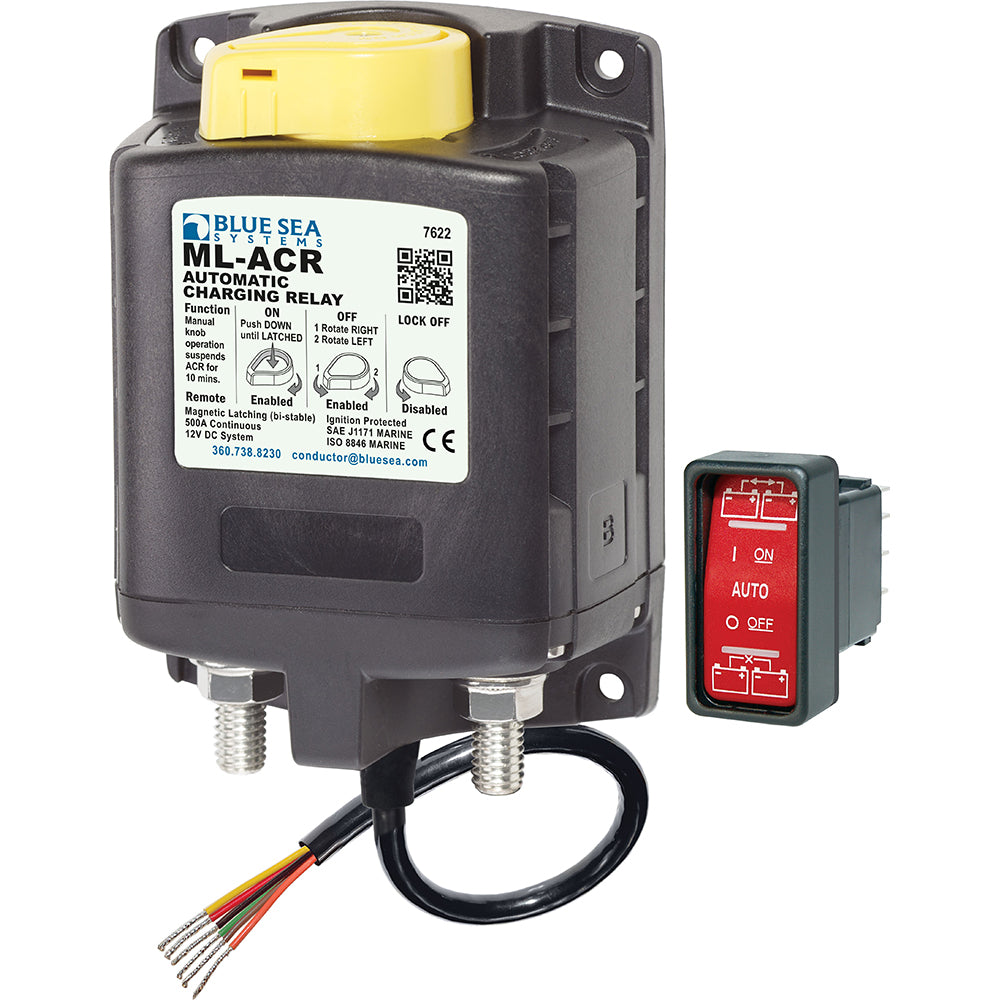

Blue Sea Systems 7622 ML-Series Automatic Charging Relay, 500 A

The Blue Sea Systems 7622 ML-Series automatic charging relay monitors two battery banks and combines or isolates them based on charging conditions. It has a 12 V coil, a 500 A continuous rating, and manual control.

• Includes ML-Series Remote Control Contura Switch, PN 2146
• Manual switch supports control with or without power and has a Locked Off position for servicing
• Magnetic latch design draws less than 10 mA to monitor terminal voltage in the ON or OFF state; it draws moderate current briefly when changing state
• Can be configured for Start Isolation to temporarily isolate house loads from the engine circuit during cranking, or Engine Isolation to isolate two engines while both are running
• Supports high-output alternators up to 500 A and senses charging on two battery banks
• LED output indicates when batteries are combined or isolated, in voltage lockout, or in Start or Engine Isolation
• 3/8-16 tin-plated copper studs with 7/8 in. stud length; silver alloy contacts and label recesses for circuit protection
• Package dimensions: 11 x 7 x 3 in.; shipping weight: 2.10 lb
• Country of origin: Mexico. Harmonization code: 8536.90.80.85
