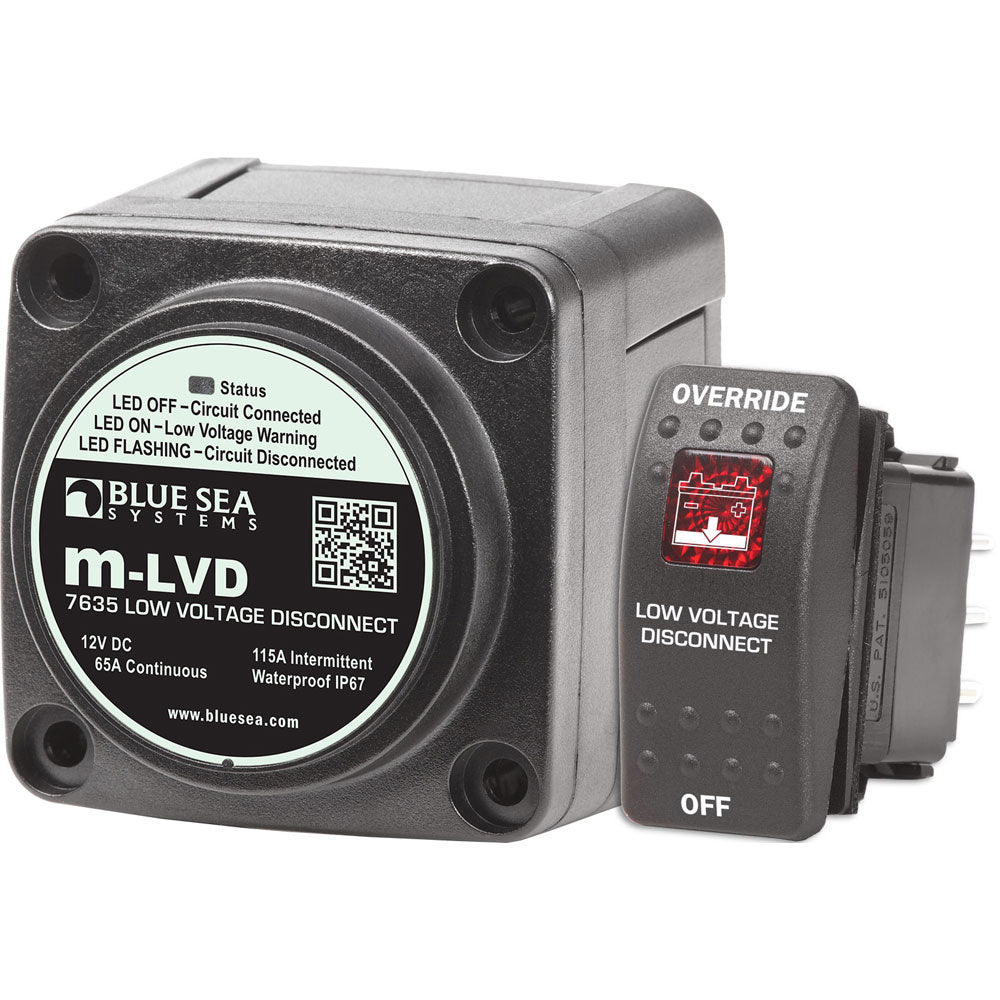

Blue Sea Systems m-LVD Low Voltage Disconnect, 12V DC 65A, IP67

Protect your battery from draining and ensure reliable starting power with the Blue Sea Systems m-LVD Low Voltage Disconnect. Engineered for marine and vehicle environments, this intelligent device senses low battery voltage and automatically disconnects non-essential loads, reserving crucial power for engine starting or preserving overall battery life. Avoid being stranded with a dead battery by integrating this essential safeguard into your electrical system. Proudly designed and manufactured in Mexico, Blue Sea Systems products offer peace of mind on the water or road. Upgrade your battery management with trusted Blue Sea Systems technology.

In the Box:

• Blue Sea Systems m-LVD Low Voltage Disconnect Unit
• m-LVD Remote Control Switch

Key Features & Benefits:

• Automatic Low Voltage Disconnect: Senses declining battery voltage and automatically disconnects non-essential devices to save power for starting or to preserve battery life.
• Adjustable Disconnect Voltage: The remote control switch allows you to set the desired disconnect voltage between 11.3V and 12.1V, offering customizable protection.
• Visual & Audible Warnings: Status lights on both the m-LVD unit and Remote Control Switch provide a clear visual warning of a low voltage state before disconnection. An alarm output is also available for an optional audible warning.
• Remote Control Functions: The included switch provides override capabilities to temporarily delay circuit disconnect for 10 minutes, a temporary OFF state until voltage recovers, and the ability to silence the alarm.
• Smart Reconnection: Automatically reconnects loads once battery voltage recovers, typically above 13.0V for 2 minutes or 13.5V for 30 seconds.
• Robust & Waterproof Design: Rated IP67 for temporary immersion and featuring a rear insulating cover to protect contacts, ensuring long-term durability in harsh conditions.

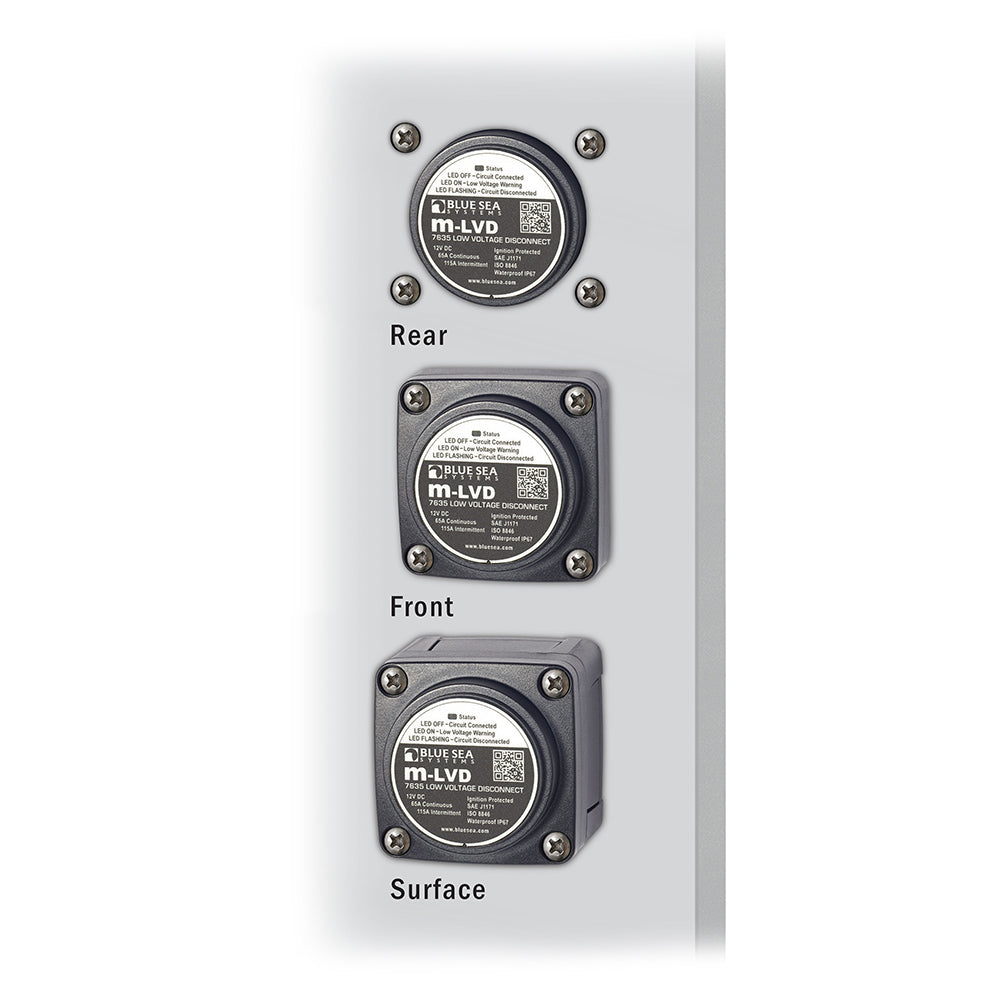

• Versatile Mounting: Case design supports surface, front panel, or rear panel mounting options for flexible installation.
• High Current Capacity: Provides a continuous rating of 65A and an intermittent rating of 115A for 5 minutes, suitable for a range of DC applications.
• Ignition Protected: Certified to SAE J1171 and ISO 8846, making it safe for installation in gasoline-powered boats and vehicles.

Specifications:

• Nominal Voltage: 12V DC
• Continuous Rating: 65A
• Intermittent Rating: 115A (5 Min)
• Maximum Cable Size: 1/0 AWG (50mm²)
• Terminal Stud Material: Tinned Brass
• Terminal Stud Length: 7/16 in (11.11 mm)
• Terminal Stud Size: 1/4" - 20 (M6)
• Weight: 0.77 lb (0.35 kg)

Recommended Pairings: For more complex charging solutions, consider a Blue Sea Systems Automatic Charging Relay (ACR) to manage multiple batteries.
