Brand: Blue Sea Systems

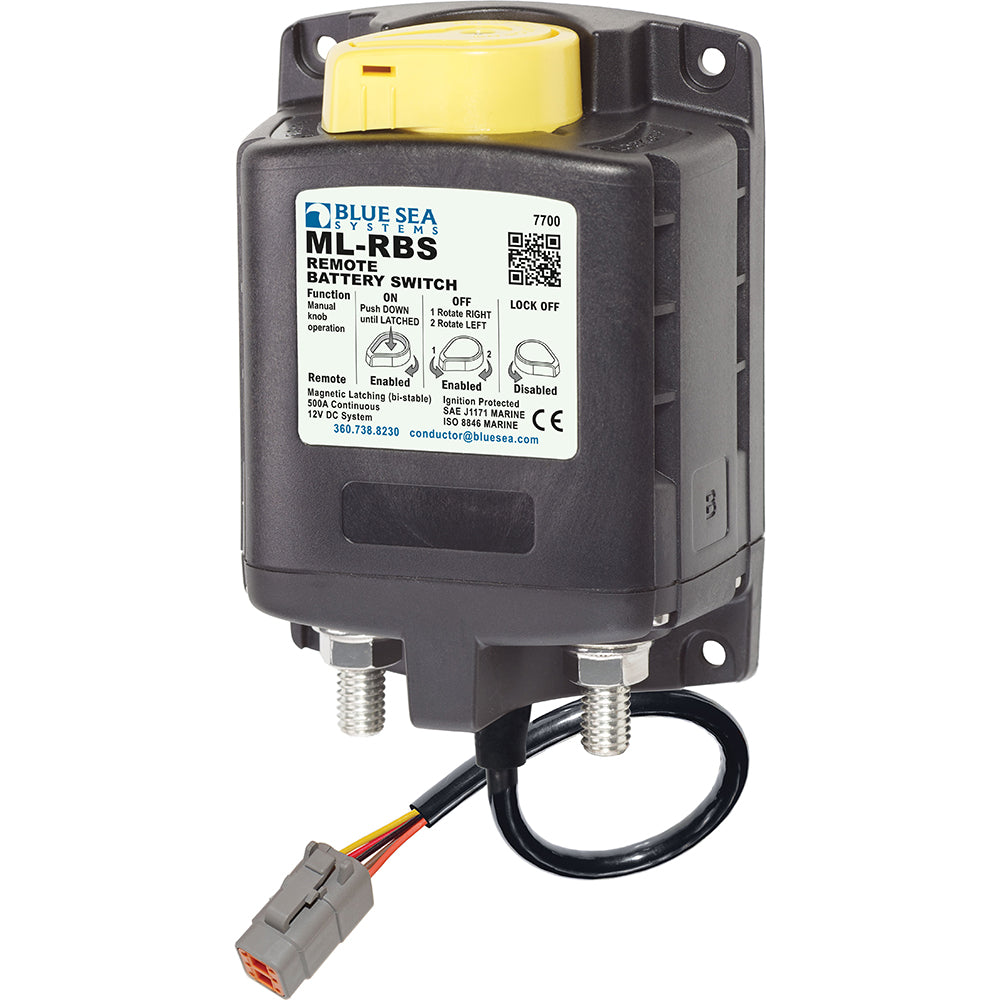

Blue Sea Systems 7700100 ML Solenoid, 12 VDC, 500A, Manual Control, Deutsch DTM Connector
Blue Sea Systems 7700100 ML Solenoid, 12 VDC, 500A, Manual Control, Deutsch DTM Connector
Sold out
About this product
The Blue Sea Systems 7700100 ML Solenoid is a 12 VDC magnetic-latching switch for high-amperage switching under load, with manual or remote control capability.
- Ratings: 500A continuous, 700A intermittent for 5 minutes, and 1,450A DC for 30 seconds during cranking
- Live current switching: 300A at 12 VDC

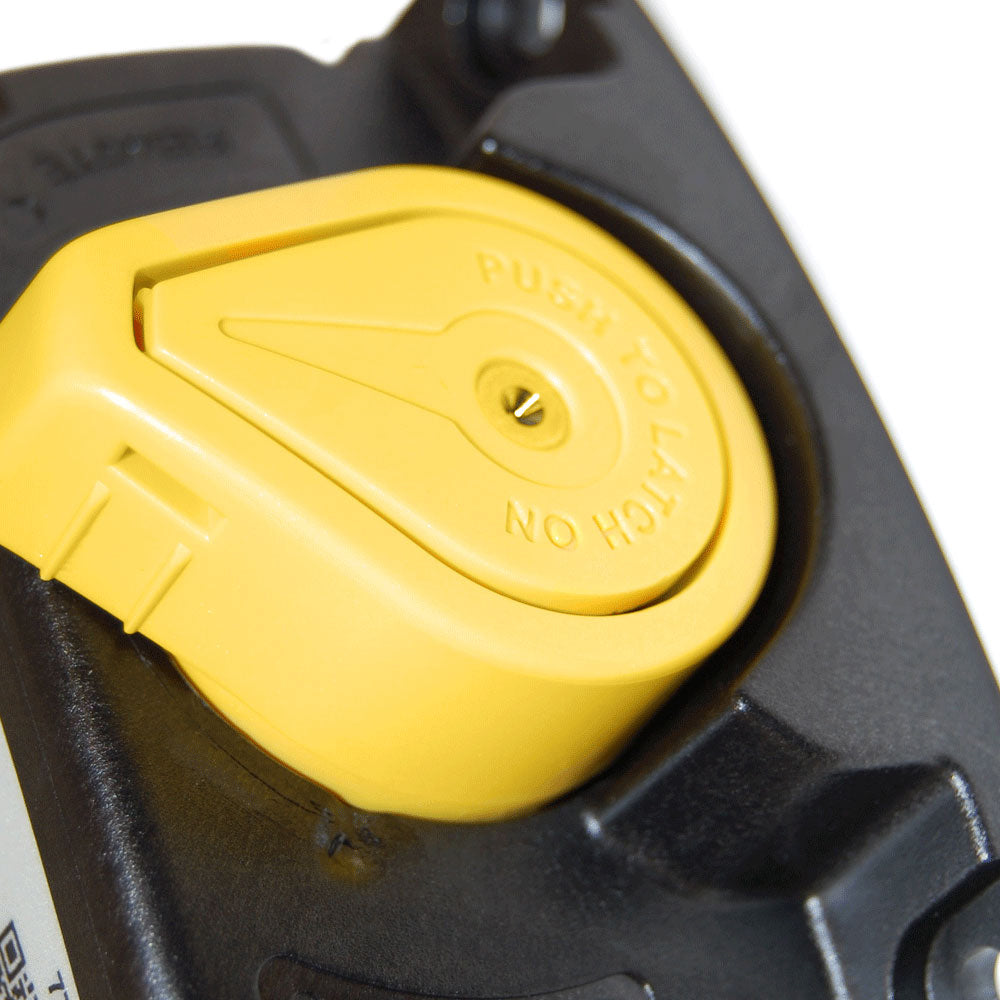

- Control: Bi-stable coil, manual override knob, LOCKED OFF capability for servicing, and Deutsch DTM control-circuit connection
- Terminals: 3/8 in.-16 tin-plated copper studs with 7/8 in. (22.23 mm) stud length and 140 in.-lb. (15.82 Nm) recommended torque
- Mounting: #10
- Remote indication: LED output for switch-state indication; optional LED required
- Cable size to meet ratings: 2x 4/0
- Terminal ring clearance: 1.18 in. (29.97 mm)
- Mechanical endurance: 100,000 cycles
- Weight: 1.75 lb. (0.79 kg)
- Additional features: Label recesses for circuit identification and silver alloy contacts for switching live loads
- Regulatory note: This product contains chemicals including di(2-ethylhexyl)phthalate (DEHP), which California identifies as causing cancer, birth defects, or other reproductive harm. See P65Warnings.ca.gov for more information.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-108833
- Model / MPN
- 7700100
- UPC / GTIN
- 632085770013
- Package dimensions (H × W × L)
- 3" X 7" X 11"
- Package weight
- 2.09 lb
- Country of origin
- MEXICO
