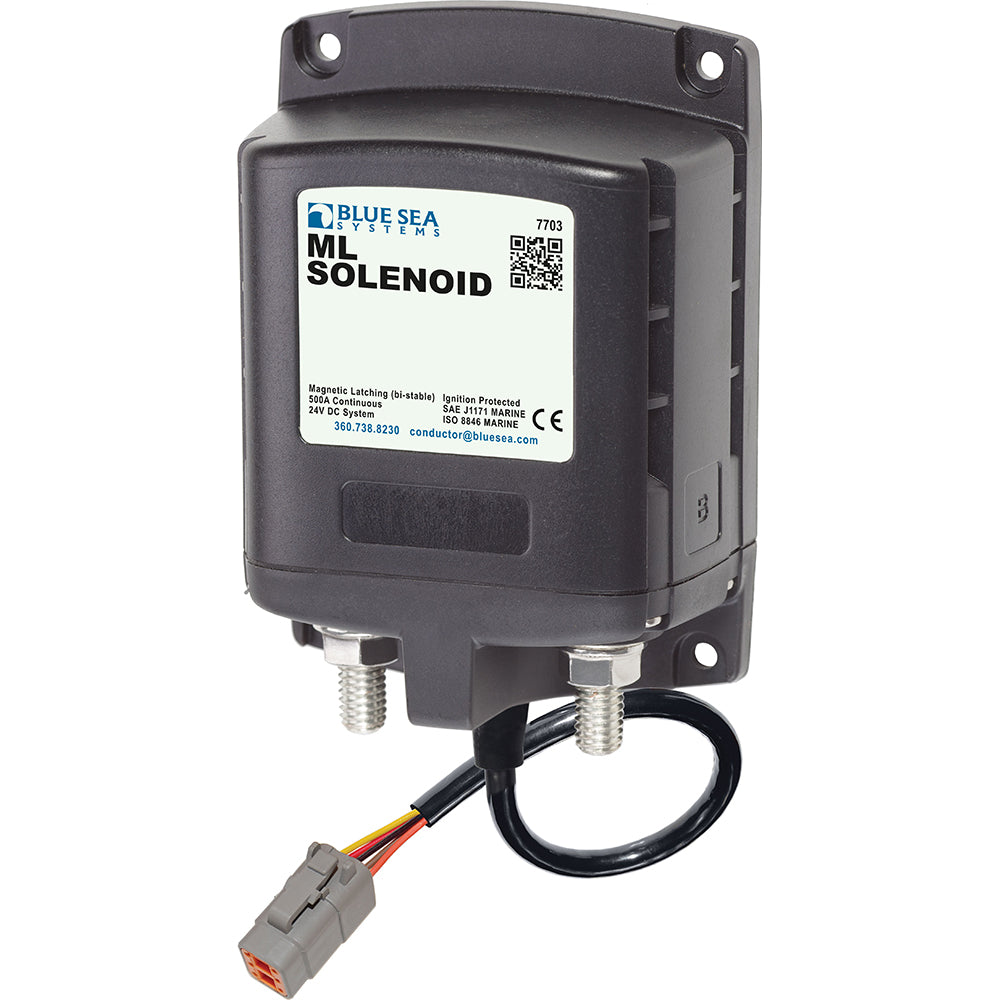

7703100 ML Solenoid 24V 500A with Deutsch Connector
500 Amp magnetic latching (bi-stable) solenoid provides switching under load where manual control is not required.
Features:
- 500 Ampere continuous rating for engine, inverter, house loads, and emergency battery combine
- Magnetic latching draws no current in "ON" or "OFF" state, only draws current when changing state of switch
- Silver alloy contacts provides high reliability for switching live loads
- 3/8" -16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 7/8" (22mm) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Remote Control Contura Switch included in retail package or sold separately if purchased by OEM in bulk
Specifications:
- Control Circuit Connection: Deutsch DTM
- Nominal Voltage: 12VDC
- Manual Control: No
- Coil Function: Bi-Stable
- Mounting: #10
- Amperage Operating Current Continous: 0A
- Terminal Stud Torque: 140 in-lb (15.82 Nm)
- Continuous Rating: 500A
- Intermittent Rating: 700A (5 min)
- Cable Size to Meet Ratings: 2x (4/0)
- Stud Material: Tinned Copper
- Switching Cycles: 100000
- Terminal Ring Diameter Clearance: 1.18" (29.97 mm)
- Terminal Stud Length: 0.875" (22.23 mm)
- Terminal Stud Size: 3/8" - 16 (M10)
- Weight: 1.75lb (0.79 kg)
