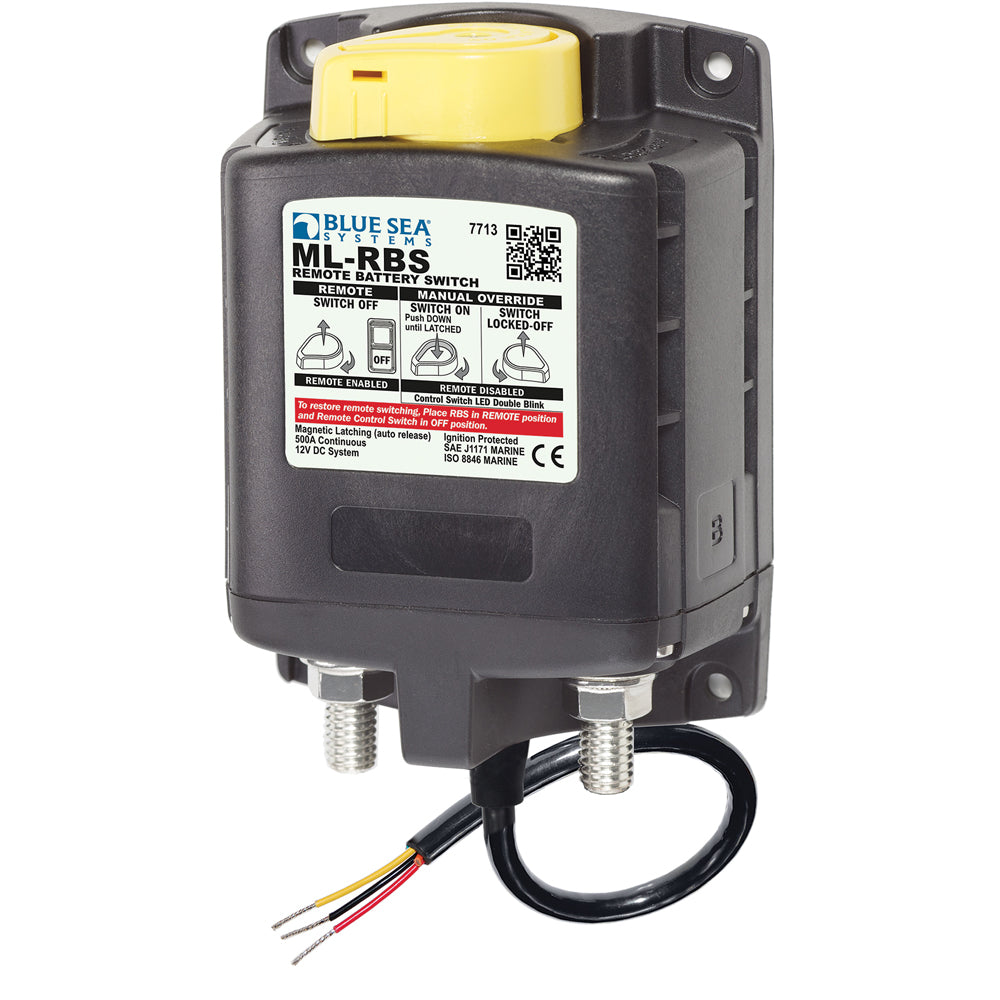

Blue Sea Systems 7713 ML-RBS Remote Battery Switch with Manual Control, 12V DC, 500A

Blue Sea Systems ML-RBS Remote Battery Switch 7713 provides 500A continuous battery switching for 12V DC systems. Its manual control supports operation with or without power and includes a locked-off position for servicing, while the auto-releasing design can be controlled with an SPST or SPDT switch.

• Ratings: 500A continuous, 700A intermittent for 5 minutes, 2,500A cranking for 10 seconds, and 1,100A cranking for 1 minute
• Control: Auto-releasing coil, 10.1 to 16.5V DC control circuit, tinned-wire connection, and 8mA when off or 13mA when on

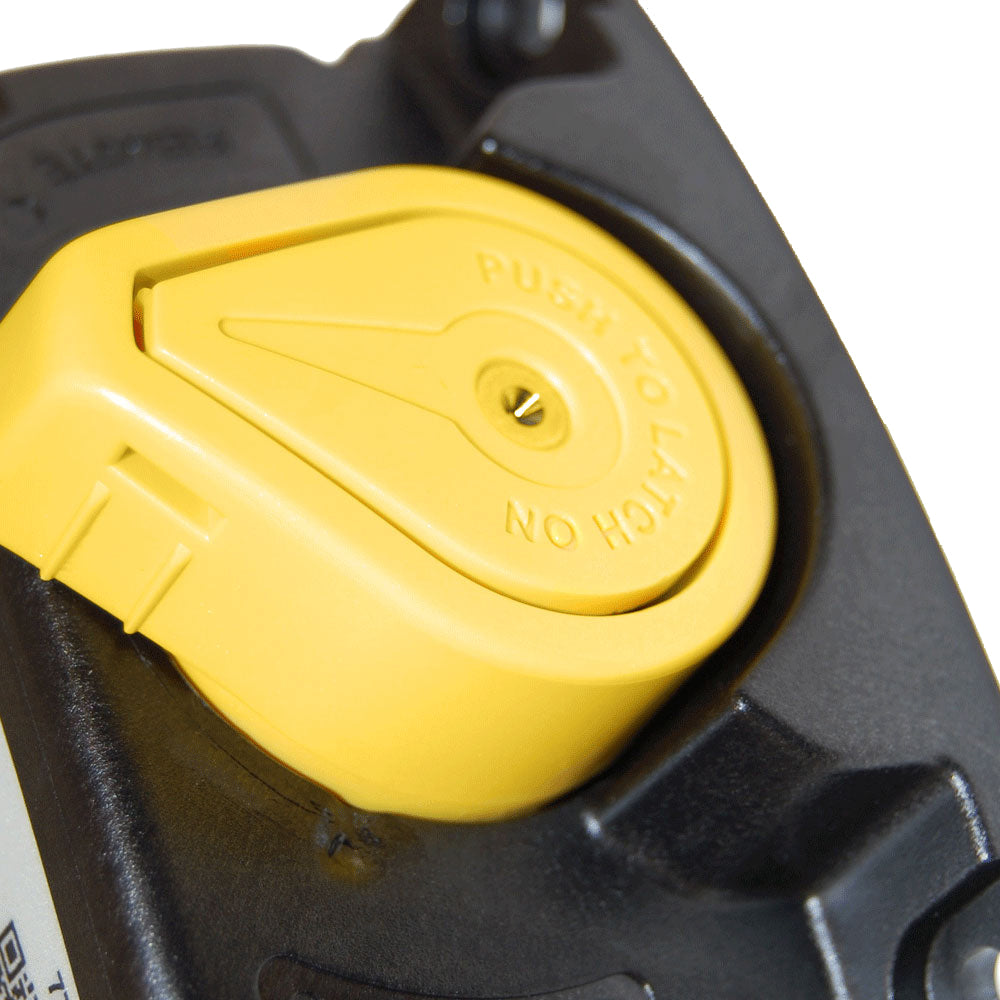

• Manual control: Override knob operates with or without power and provides a locked-off position for servicing
• Terminals: 3/8-16 (M10) tin-plated copper studs with 0.875 in. (22.23 mm) stud length and 140 in.-lb. (15.82 Nm) recommended torque
• Construction and use: Silver alloy contacts, label recesses for circuit identification, master control switch capability, and 300A at 12V DC live-current switching for 10,000 cycles
• Endurance: 100,000 mechanical and switching cycles
• Mounting and size: No. 10 mounting, 1.18 in. (29.97 mm) terminal ring diameter clearance, and 1.75 lb. (0.79 kg) weight
• Operating range: -10 deg C to 50 deg C
• Optional accessory: LED output can remotely indicate switch state; LED is optional
• Regulatory note: This product includes a California Proposition 65 warning for exposure to di(2-ethylhexyl)phthalate (DEHP).
