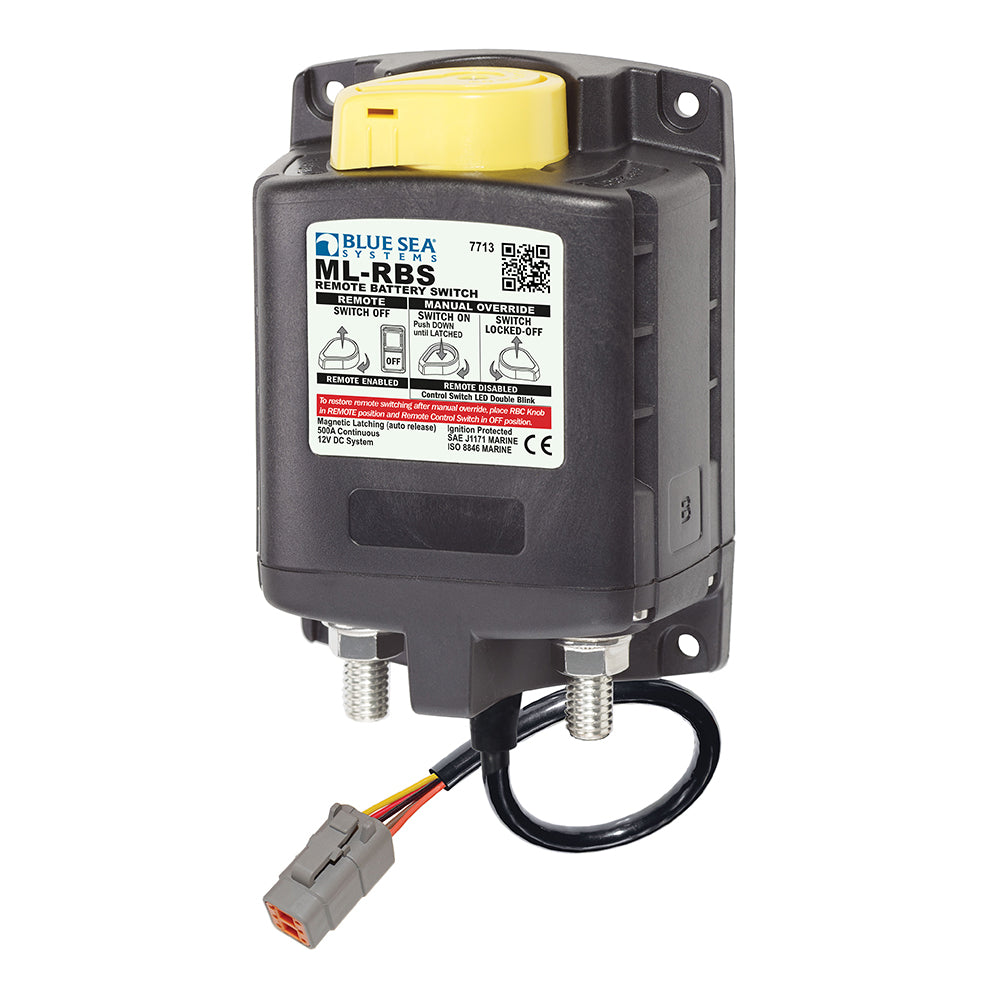

Blue Sea Systems ML-RBS Remote Battery Switch, 12V 500A

Achieve precise and reliable control over your vessel's electrical systems with the Blue Sea Systems ML-RBS Remote Battery Switch. Engineered for demanding marine environments, this 12V, 500 Amp magnetic latching switch provides high-amperage switching both manually and from convenient remote locations. It's an ideal solution for managing large battery banks and multi-helm applications, ensuring enhanced safety and performance for your power management needs. Upgrade your marine electrical system for unparalleled control and durability.

Key Features & Benefits:

• Manual Control Auto-Release & LOCKED OFF Capability: Provides an added level of safety by allowing control with or without power, and offers a crucial LOCKED OFF capability for secure servicing of your electrical system.
• Integrated Deutsch Connector: Ensures secure and reliable connections in harsh marine conditions, protecting against vibration and moisture for consistent performance.
• Optimized for 12V DC Systems: Perfectly suited for a wide range of marine vessels, RVs, and other 12V DC applications.
• Dedicated Wire Harness Connections: Features clearly defined connections (Red: Control +VDC, Black: Ground, Yellow: -VDC LED Output) for straightforward installation and remote status indication (requires optional LED).
• High Amperage Capacity: Boasts a 500 Amp continuous rating, 700 Amp intermittent rating (5 minutes), and a 1450 Amp cranking rating (30 seconds) to handle demanding high-load applications.
• Magnetic Latching Functionality: Minimizes power consumption by drawing current only when changing the switch state, ensuring energy efficiency.
• Tin-Plated Copper Studs (3/8"-16): Provides maximum conductivity and superior corrosion resistance, ensuring long-term durability and optimal electrical performance in marine environments.
• Silver Alloy Contacts: Equipped with silver alloy contacts that offer high reliability for safely switching live loads.
• Ignition Protected: Meets ISO 8846 and SAE J1171 external ignition protection requirements, making it safe for installation in gasoline engine compartments.
• IP66 Rated Enclosure: Offers robust protection against powerful water jets and dust ingress, suitable for exposed mounting locations.
• Reduced Voltage Drop, Weight, & Cost: Designed for installation close to battery banks, which can significantly reduce cable length, leading to lower voltage drop, decreased system weight, and potential cost savings on heavy gauge wiring.

Recommended Pairings:

• For convenient remote operation, pair with a single pole double throw (SPDT) or single pole single throw (SPST) control switch mounted at your dash or nav-station.
• Integrate into marine electrical systems requiring robust, remotely controlled power isolation for battery banks.
