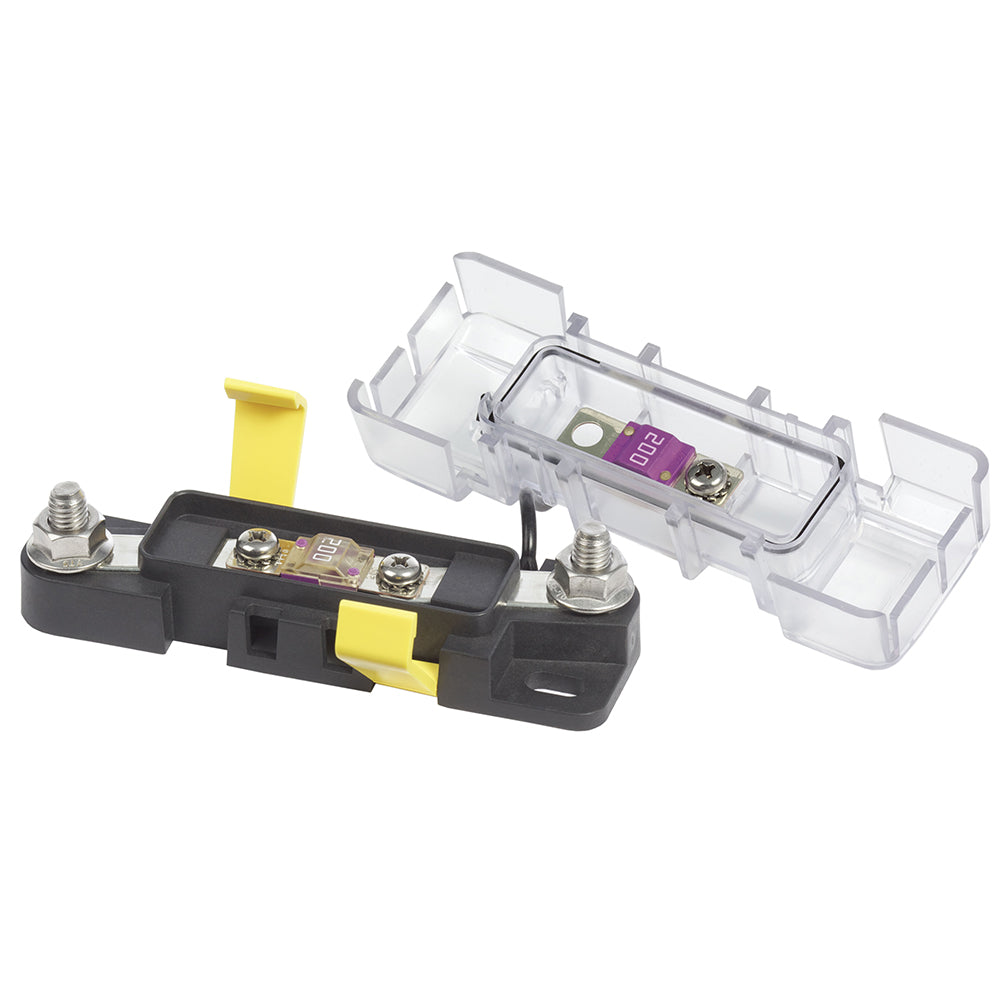

Blue Sea Systems AMI/MIDI Safety Fuse Block, 200A 32V DC - Ignition Protected

Ensure robust electrical protection on your boat with the Blue Sea Systems AMI/MIDI Safety Fuse Block. Designed for high-amperage circuits, this block provides essential safeguarding for critical marine systems like DC mains, inverters, bow thrusters, and windlasses. Its ignition-protected design makes it safe for installation on gasoline or diesel-powered vessels, while the sealed cover ensures durability in harsh marine environments. Invest in reliable marine power management today.

Key Benefits & Specifications:

• Ignition Protected: Ensures safe operation when installed aboard gasoline or diesel powered boats, meeting ISO 8846 and SAE J1171 standards.
• Marine-Grade Sealed Cover: Provides IP66 ingress protection, sealing fuses from water and the harsh marine environment to prevent corrosion and extend component life.
• High-Amperage Capacity: Supports a maximum of 200A with 2/0 cable, ideal for high-current applications.
• Safety Compliant: Insulating cover satisfies stringent ABYC/USCG insulation requirements, preventing accidental contact.
• Flexible Wire Access: Cover breakouts allow for versatile wire routing in any direction, simplifying installation.
• Wide Voltage Compatibility: Rated for a maximum operating voltage of 32V DC, suitable for common marine 12V and 24V systems.
• Versatile Fuse Acceptance: Designed to accept industry-standard MIDI (Littelfuse) or AMI (Bussmann) fuses.
• Convenient Spare Fuse Storage: Features dedicated storage under the cover for a spare fuse, ensuring quick replacements when needed.
• Certifications: CE, IP66, ISO 8846, and SAE J1171 Marine ratings confirm quality and safety for marine applications.

Note: Fuses are sold separately.
