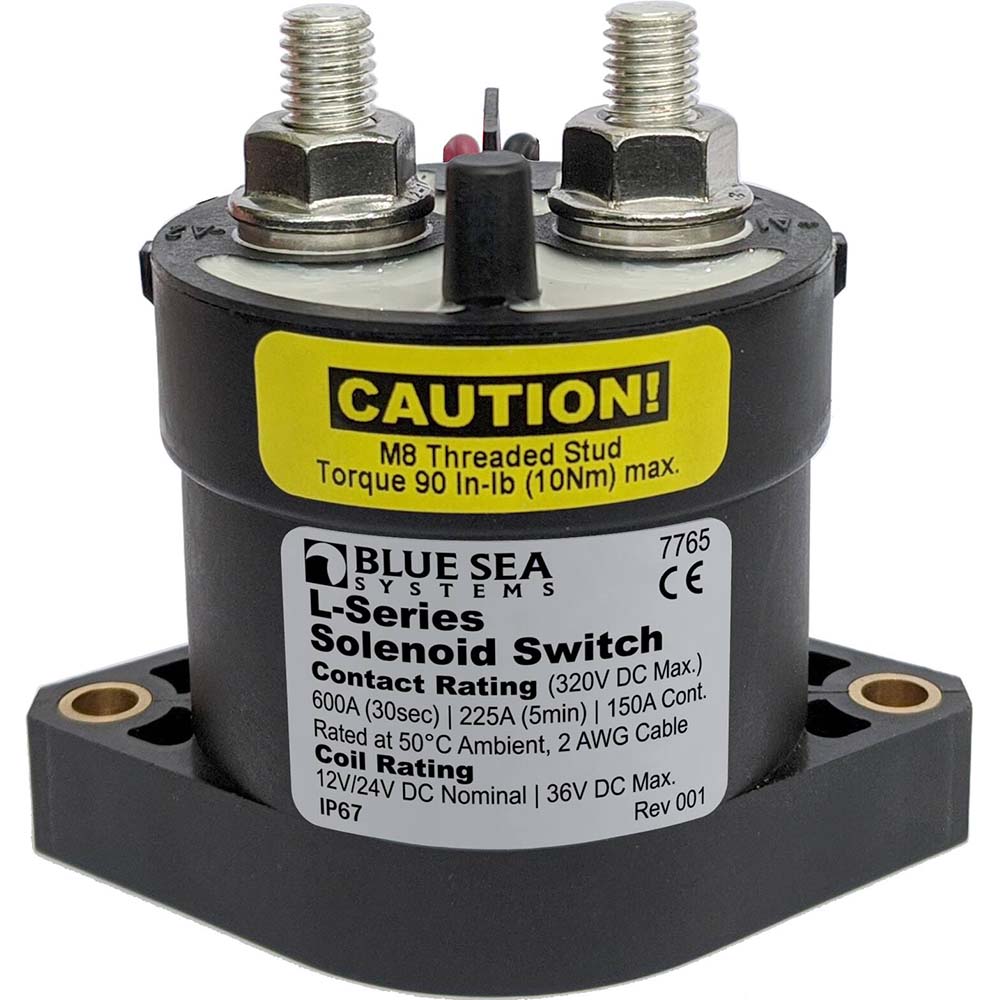

Blue Sea Systems L-Series Solenoid Switch, 150A 12/24V DC, Continuous Duty

Ensure reliable and efficient DC power management on your marine vessel or vehicle with the Blue Sea Systems L-Series Solenoid Switch. Engineered for continuous duty, this robust 150A switch features hermetically sealed contacts, providing exceptional protection against environmental elements. Its innovative coil control circuit minimizes heat generation and amperage draw, ensuring long-term performance. Ideal for a wide range of applications from DC subpanels to critical power loads, this solenoid switch offers the durability and control you need. Upgrade your electrical system with Blue Sea Systems' trusted reliability today.

Key Benefits & Features:

• Continuous Duty Operation: Designed for constant power management in demanding applications.
• Hermetically Sealed Contacts: Provides superior protection against moisture, dust, and corrosive environments, ensuring extended operational life.
• Optimal Power Handling: Rated for 150 Amps continuous, suitable for 12/24V DC systems, with an intermittent rating of 225A (5 min) and cranking rating of 600A (30 sec).
• Efficient Coil Control Circuit: Minimizes heating and reduces amperage draw, enhancing overall system efficiency and longevity.
• Simplified Installation: No external coil suppression is required, streamlining wiring and setup.
• Wide Control Voltage Range: Operates with a control circuit voltage of 9-36V DC (12/24V nominal), activated by a remote ON-OFF switch (sold separately).
• Robust Environmental Protection: IP67 rated, offering complete protection against dust ingress and temporary immersion in water.
• Broad Operating Temperature: Functions reliably across a wide range of temperatures from –40°C to +85°C.
• M8 Terminal Studs: Accepts 5/16" terminals with a torque rating of 90 in-lb (10.17 Nm) max for secure connections.
• 5-Year Warranty: Backed by a 5-year warranty for peace of mind and long-term assurance.

Compatibility & Applications:

This versatile L-Series Solenoid Switch is an excellent choice for managing power to DC subpanels, thrusters, windlasses, inverters, and various other medium-amp DC loads in marine, RV, and off-grid power systems.
