Brand: Blue Sea Systems

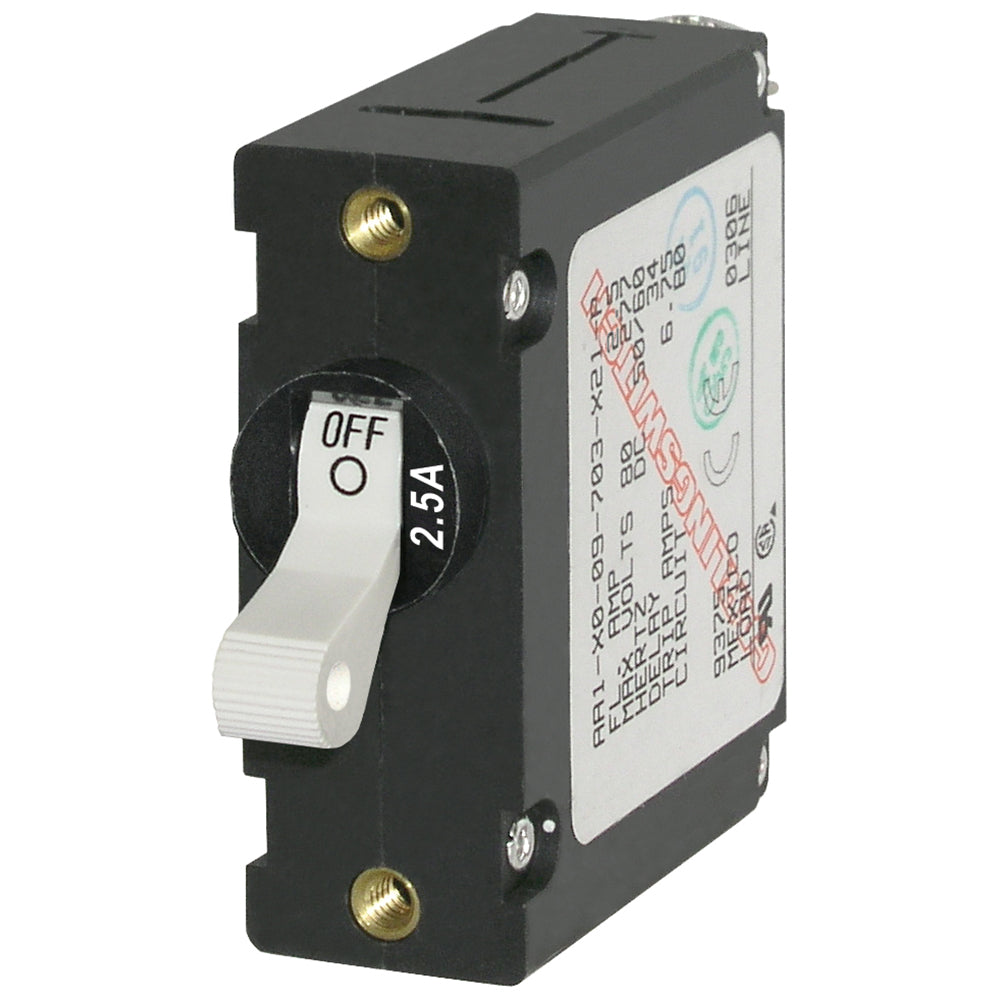

Blue Sea Systems 7197 A-Series White Toggle Circuit Breaker, Single-Pole 2.5A
Blue Sea Systems 7197 A-Series White Toggle Circuit Breaker, Single-Pole 2.5A
10+ available
About this product
Blue Sea Systems 7197 A-Series circuit breaker combines switching and circuit protection in a single white toggle device for electrical panels.
- Rating: 2.5A AC / 2.5A DC
- Poles: 1
- Maximum voltage: 250V AC / 65V DC
- Type: Magnetic hydraulic, trip-free design
- Actuator: Toggle
- Interrupt capacity: 3000A at 120V AC; 1500A at 250V AC [TUV]; 3000A at 250V AC [UL 1077]; 7500A at 65V DC
- Operating temperature: -40 deg C to 85 deg C
- Mounting screw: #6-32 stainless steel; 6 in-lb (0.68 Nm) torque
- Terminal screw: #10-32 stainless steel; 14 in-lb (1.58 Nm) torque
- Switching cycles: 10,000
- Weight: 0.17 lb (0.08 kg)
- Color: White
- Standards: Meets American Boat and Yacht Council (ABYC) standards
- Regulatory note: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-105275
- Model / MPN
- 7197
- UPC / GTIN
- 632085071974
- Package dimensions (H × W × L)
- 1" X 3" X 4"
- Package weight
- 0.17 lb
- Country of origin
- MEXICO
Specifications
- Amperage
- 2.5a
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
