Brand: Blue Sea Systems

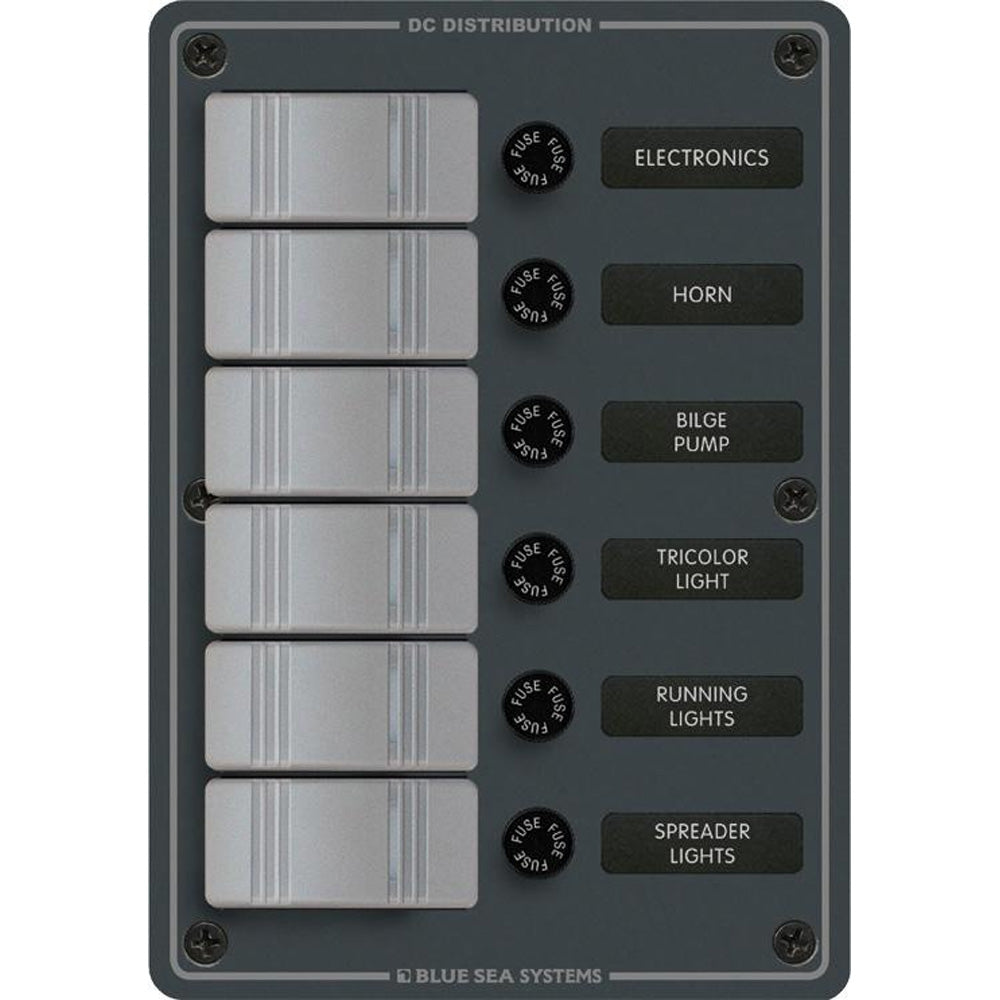

Blue Sea Systems 8053 6-Position Vertical DC Electrical Panel, Slate Grey
Blue Sea Systems 8053 6-Position Vertical DC Electrical Panel, Slate Grey
4 available
About this product
The Blue Sea Systems 8053 is a 6-position vertical DC electrical panel designed for marine environments, including flybridge and open cockpit applications. Each panel is treated with a Mil-Spec chemical process to prevent corrosion and is finished with a durable two-part polyurethane slate grey coating.
Key Features:
- Weather-resistant construction withstands salt spray, rain, hose washdowns, and momentary immersion
- Equipped with six Contura ON-OFF switches with embedded ON-indicating LEDs
- Includes a watertight mounting gasket for secure installation
- Features countersunk mounting holes
- Comes fully wired for quick installation
Specifications:
- Voltage: 12V/24V DC
- Panel Cumulative Rating: 45A
- Switch Rating: 20A at 12V DC or 15A at 24V DC
- Dimensions: 7.5 in. H x 5.25 in. W x 3 in. D
Included Accessories:
- Six 5021 panel-mount AGC/MDL fuse holders
- Six 8230 Contura SPST OFF-ON switches
- One 8030 basic DC panel label set (30 labels)
Note: Waterproof panel labels are not backlit.
Regulatory Notice: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-100312
- Model / MPN
- 8053
- UPC / GTIN
- 632085080532
- Package dimensions (H × W × L)
- 5" X 7" X 12"
- Package weight
- 1.22 lb
- Country of origin
- UNITED STATES
Specifications
- Waterproof
- Resistant
- AC/DC
- DC
- Max Breaker Quantity
- 6
- Voltage
- 12/24v
- Type
- Blue Sea 8053 Slate Grey - 6 Position - Vertical
