Blue Sea Systems AC Main + 11 Position Toggle Circuit Breaker Panel, 120V AC

Blue Sea Systems AC Main + 11 Position Toggle Circuit Breaker Panel, 120V AC

SKUCT-100172

$621.37
$621.37
Sale Sold out
Shipping calculated at checkout.
Shipping rewards at $100 U.S. orders of $100 or more get free standard shipping, plus $10 off Expedited and Overnight.

Low stock

Use the Tug & Tow SKUInclude this SKU when you contact us about fit, availability, or reorders.
Delivery shown at checkoutShipping options, final costs, and delivery estimates appear before payment.
Check fit before orderingReview dimensions, part numbers, model details, and compatibility notes.
Confirm the details before checkoutFit can depend on your boat, RV, trailer, vehicle, or equipment. Contact us before ordering if compatibility is critical.Ask a product question

Product details

Review the details before ordering.

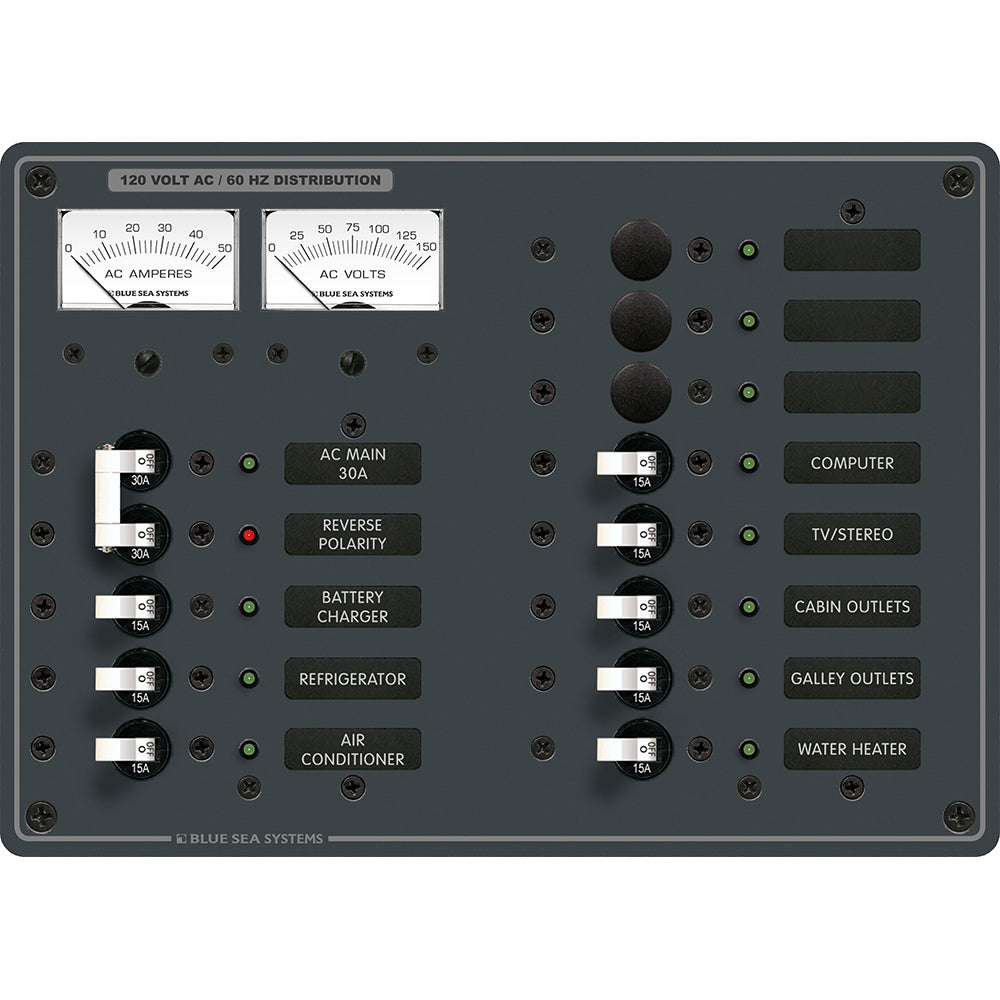

Ensure safe, organized, and reliable AC power distribution with the Blue Sea Systems 8076 AC Main + 11 Position Toggle Circuit Breaker Panel. This pre-wired panel simplifies installation and provides comprehensive protection for multiple onboard AC loads in marine and RV electrical systems. Featuring backlit labels, 'ON' indicating LEDs, and integrated metering, it offers clear visibility and real-time system monitoring. Streamline your AC power system today with Blue Sea Systems' trusted quality.

In the Box:

  • (1) 8031 Basic AC Panel Label Set - 30 Labels
  • (12) 8034 LED - 120V AC Green
  • (1) 8066 LED - 120V AC Red
  • (8) 7210 A-Series White Toggle Circuit Breaker - Single Pole 15A (Branch)
  • (1) 7238 A-Series White Toggle Circuit Breaker - Double Pole 30A (Main)
  • (1) 8244 AC Micro Voltmeter - 0 to 150V AC (Meter)
  • (1) 8246 AC Micro Ammeter - 0 to 50A w/ Coil (Meter)

Key Benefits & Specifications:

  • Nominal Voltage: Rated for 120V AC nominal voltage, ensuring compatibility with standard AC marine and RV electrical systems.
  • Comprehensive Circuitry: Designed with one Main and eleven branch circuit positions, providing robust control and protection for multiple onboard AC loads.
  • Simplified Installation: Features pre-installed, fully pre-wired hot, neutral, and safety ground buses, significantly reducing wiring time.
  • Enhanced Visibility: Circuit label positions are backlit, and 'ON' indicating LEDs are installed for all circuit positions, offering clear status indication in various lighting conditions.
  • Safety Assurance: Includes a Red reverse polarity indicating LED to alert users to dangerous wiring conditions.
  • Integrated Monitoring: Equipped with an AC Micro Voltmeter (0 to 150V AC) and an AC Micro Ammeter (0 to 50A with coil) for real-time monitoring of critical AC system performance.
  • Durable Construction: Built with a robust metal panel, providing long-lasting reliability in challenging marine and mobile environments.
  • Compact Dimensions: Measures 7.5" Height x 10.5" Width, allowing for flexible installation in various spaces.
