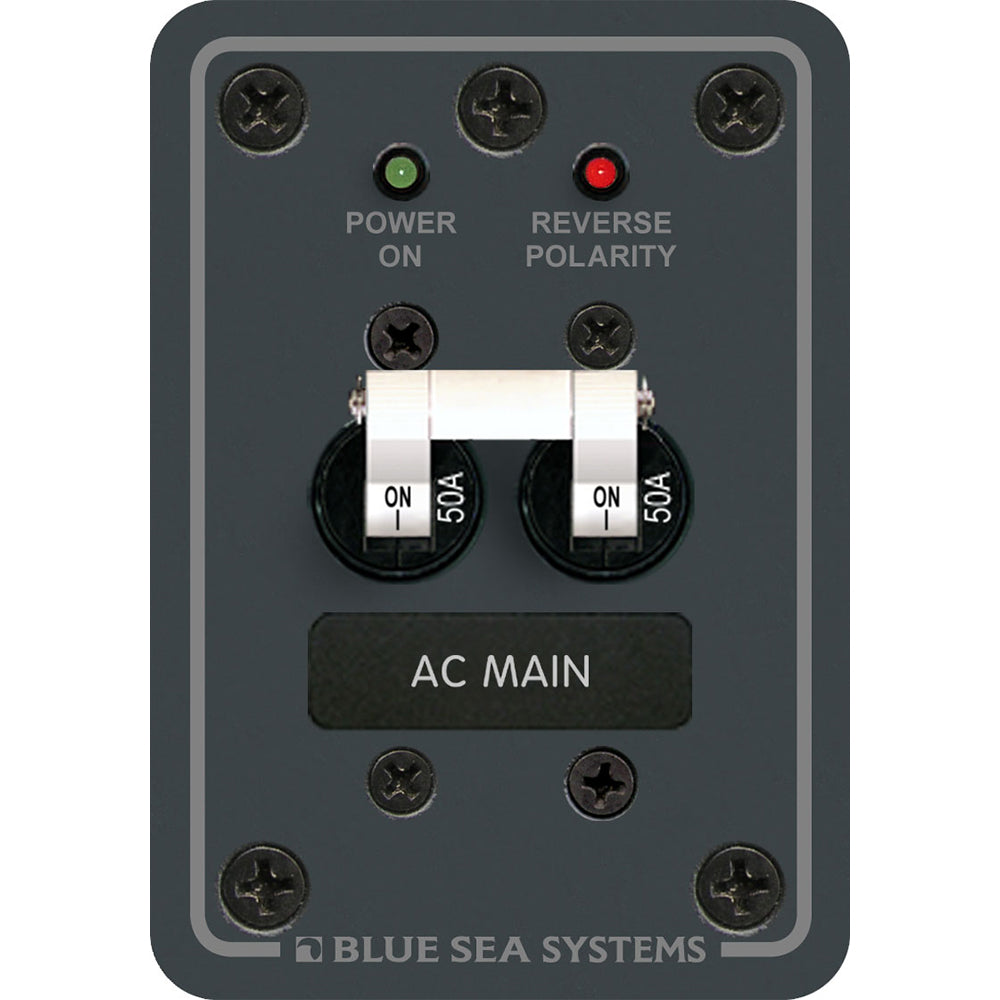

Blue Sea Systems AC Main Circuit Breaker Panel, 120V AC 50A – White Toggle

Safeguard and streamline your vessel's AC electrical system with the Blue Sea Systems 8079 AC Main Circuit Breaker Panel. Engineered for superior protection and convenience, this panel integrates critical switching and robust circuit protection into a compact unit. Its 'trip free' design ensures safety by preventing the breaker from being held ON during fault currents, while a red reverse polarity LED provides an immediate warning of dangerous wiring issues. Trust in Blue Sea Systems' commitment to quality and ensure reliable power distribution on board.

• Blue Sea Systems 8079 AC Main Circuit Breaker Panel
• (1) 8034 LED - 120V AC Green (Power Available Indicator)
• (1) 8066 LED - 120V AC Red (Reverse Polarity Indicator)
• (1) 7242 A-Series White Toggle Circuit Breaker - Double Pole 50A (Main)

• Integrated Protection: Combines switching and circuit protection into a single device, simplifying installation and saving valuable space on your panel.
• Enhanced Safety: Features a 'trip free' design that prevents the breaker from being held in the 'ON' position during fault current conditions, ensuring maximum protection.
• Reverse Polarity Warning: A prominent red LED illuminates to indicate reverse polarity, alerting you to potentially hazardous shore power wiring issues.
• Secure Grounding: Includes a safety ground screw on the panel back for secure and reliable system grounding.
• Robust Construction: Crafted from heavy 1/8" aluminum 5052 alloy with a 2-part polyurethane slate gray finish and Mil-C-5541C undercoating for exceptional corrosion resistance in harsh marine environments.
• High Capacity: Equipped with a 50A double pole main circuit breaker, providing robust protection for your primary AC circuit.
• Broad Compatibility: Rated for a nominal 120V AC, with a maximum voltage rating of 277V AC / 65V DC, suitable for a wide range of marine electrical systems.
• Compact Design: With dimensions of 2.63" Height x 3.75" Width x 2.50" Depth, this panel is ideal for installations where space is at a premium.
