Brand: Blue Sea Systems

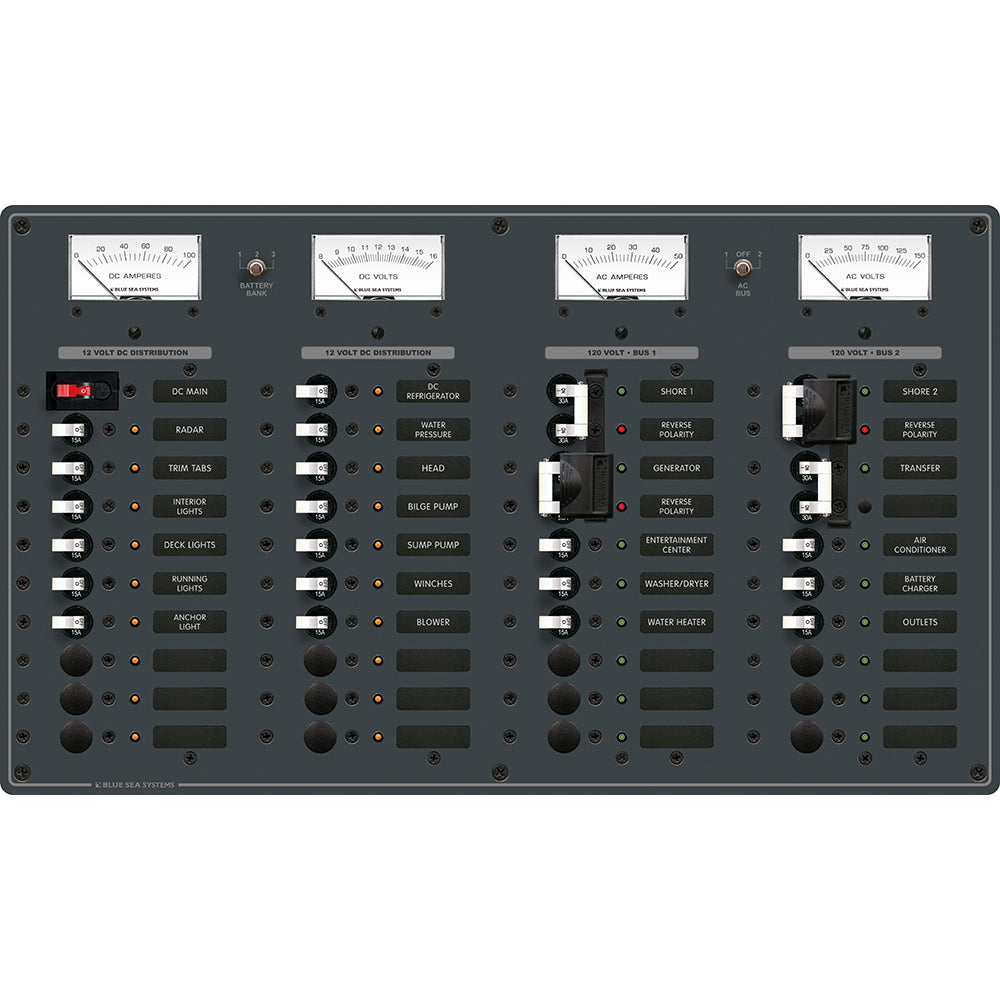

Blue Sea Systems 8086 AC/DC Toggle Circuit Breaker Panel, 120V/12V
Blue Sea Systems 8086 AC/DC Toggle Circuit Breaker Panel, 120V/12V
Sold out
About this product
The Blue Sea Systems 8086 AC/DC Toggle Circuit Breaker Panel provides centralized power management with pre-wired AC and DC buses and white toggle switches. This panel features label backlighting and includes a comprehensive set of 30 common AC and 30 common DC labels for easy circuit identification.
Key Features:
- AC section includes two load groups with a transfer switch and reverse polarity indicators.
- DC section includes a 100A C-Series main circuit breaker.
- Integrated instrumentation: 0-150V AC voltmeter, 0-50A AC ammeter, 8-16V DC voltmeter, and 0-100A DC ammeter.
- Maximum panel capacity: 100A DC and 50A AC.
- Includes pre-installed LEDs and bus bars for immediate installation.
- AC branch circuits: (3) 30A, (1) 50A, and (6) 15A breakers.
- DC branch circuits: (1) 100A and (13) 15A breakers.
Note: This unit is compatible with the optional 4031 AC Isolation Cover. Per ABYC standards, combined AC/DC panels require an AC insulating cover. This product contains chemicals known to the State of California to cause cancer and reproductive harm. Regulatory note: Proposition 65 warning included.
Manuals & videos
- Secure checkout
- 21-day return requests
- Free standard shipping $100+
Product facts
- CT SKU
- CT-100170
- Model / MPN
- 8086
- UPC / GTIN
- 632085080860
- Package dimensions (H × W × L)
- 6" X 15" X 23"
- Package weight
- 12.5 lb
- Country of origin
- UNITED STATES
Specifications
- Max Breaker Quantity
- 12 AC / 19 DC
- AC/DC
- Both
- Voltage
- 120v/12v
Fit-sensitive item: confirm measurements, model numbers, and manufacturer details before ordering. Tug & Tow does not guarantee universal compatibility from a product page alone.
