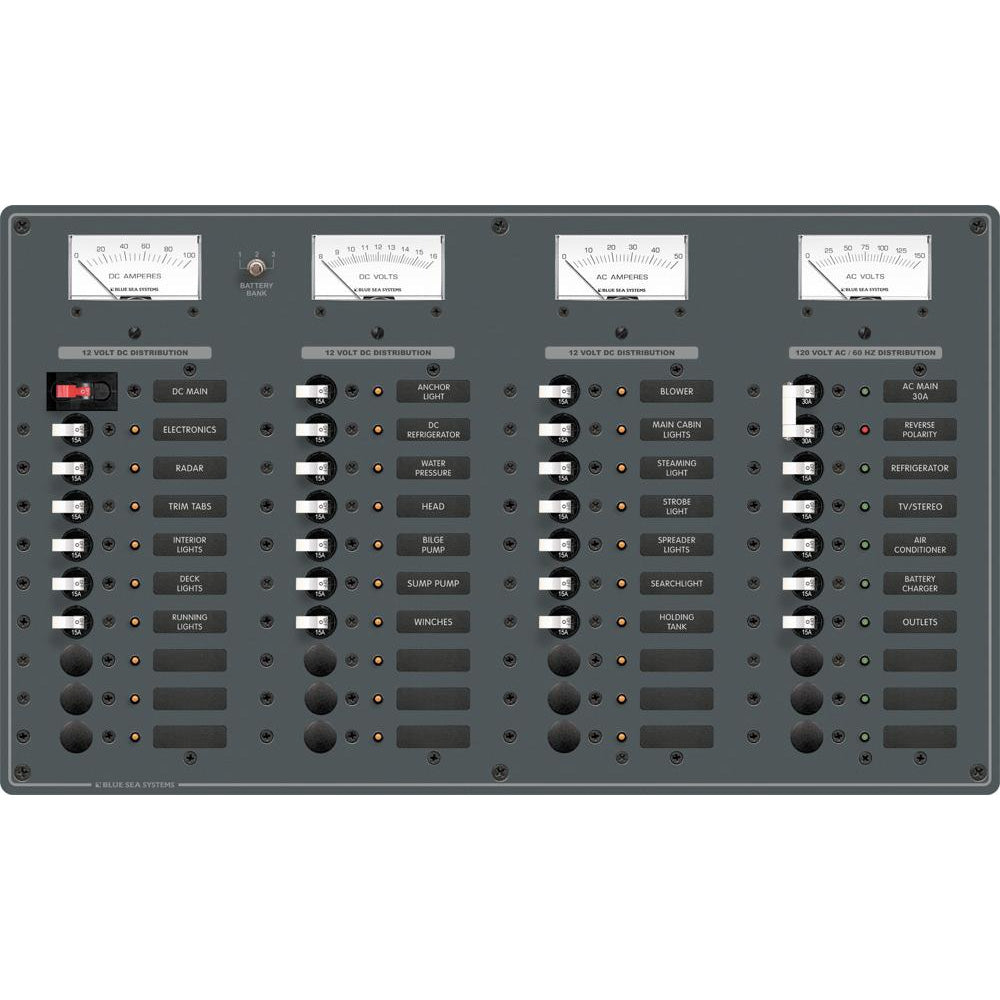

Blue Sea Systems 8095 AC Main +8 / DC Main +29 Breaker Panel, 120V AC/12V DC

Master your vessel's electrical systems with the Blue Sea Systems 8095 AC Main +8 / DC Main +29 Toggle Circuit Breaker Panel. This comprehensive and fully pre-wired power distribution solution provides robust control and monitoring for both AC and DC circuits on your boat, RV, or off-grid setup. Engineered for marine environments, it ensures reliable performance and simplifies installation. Upgrade your electrical management today for enhanced safety and efficiency.

• Blue Sea Systems 8095 Panel
• 5 x A-Series White Toggle Circuit Breaker - Single Pole 15A (AC Branch)
• 1 x A-Series White Toggle Circuit Breaker - Double Pole 30A (AC Main)
• 1 x 9353 AC Voltmeter - 0 to 150V AC (AC Meter)
• 1 x 9630 AC Ammeter - 0 to 50A with Coil (AC Meter)
• 20 x A-Series White Toggle Circuit Breaker - Single Pole 15A (DC Branch)
• 1 x C-Series White Toggle Circuit Breaker - Single Pole 100 Amp (DC Main)
• 1 x 8003 DC Analog Voltmeter - 8 to 16V DC (DC Meter)
• 1 x 8017 DC Analog Ammeter - 0 to 100A with Shunt (DC Meter)
• Set of 30 common AC labels and 30 common DC labels

• Comprehensive Circuit Control: Manages 8 AC positions and 29 DC positions for extensive power distribution and protection.
• Dual Voltage Support: Operates efficiently with both 120V AC and 12V DC nominal voltages, catering to diverse electrical needs.
• High Amperage Capacity: Supports a maximum panel amperage of 50 Amperes AC and 100 Amperes DC, handling significant loads.
• Integrated Monitoring: Features built-in AC and DC voltmeters and ammeters for real-time electrical system status at a glance.
• Pre-Wired for Easy Installation: All AC and DC buses are fully installed and pre-wired, significantly reducing setup time and complexity.
• Enhanced Visibility: Includes pre-installed label backlighting and ON-indicating LEDs for clear identification and status in all lighting conditions.
• Reliable Main Protection: Equipped with a 100 Ampere C-Series circuit breaker for main DC circuit protection and switching.

For ABYC compliance, combined AC/DC panels require an AC insulating cover (sold separately). This panel is owner-upgradeable to 24 Volts DC with an appropriate 18-32 Volt DC Voltmeter (e.g., Blue Sea Systems 8240, sold separately).
