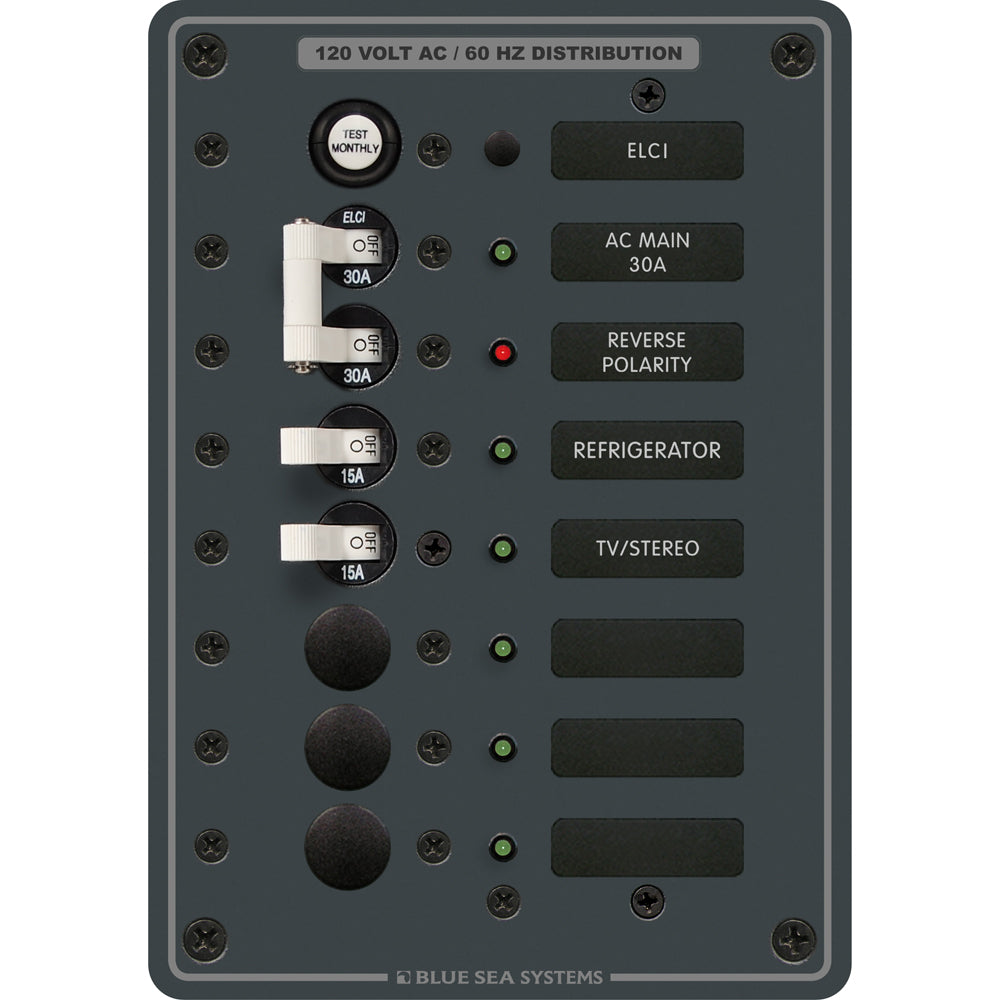

Blue Sea Systems 8101 ELCI Main AC Panel, 5 Position, 120V AC

Ensure comprehensive shore power safety and peace of mind with the Blue Sea Systems 8101 ELCI Main AC Panel. Designed for whole-boat protection, this robust panel integrates essential overcurrent and leakage protection, meeting stringent ABYC E-11 standards for marine electrical systems. Its clear indicators and durable construction make it an indispensable upgrade for any vessel. Protect your boat's electrical system today.

In the Box:

• Blue Sea Systems 8101 ELCI Main AC Panel
• One 30A AC ELCI Main Circuit Breaker (Double Pole, 120V AC)
• Two 15A AC Branch Circuit Breakers (Single Pole, White Toggle)
• Six Green 120V AC 'ON' Indicating LEDs
• One Red 120V AC Reverse Polarity LED
• Large Format AC Label Set (8031)

Key Benefits & Specifications:

• ABYC E-11 Compliant: Provides critical overcurrent and 30mA leakage protection for whole-boat shore power, ensuring enhanced safety on the water.
• Integrated Main Breaker: Features a 30A AC ELCI Main Residual Current Circuit Breaker for robust primary protection.
• Two Branch Positions: Includes two 15A AC branch circuit breakers, with additional space for future expansion to a total of five positions.
• Clear Status Indicators: Equipped with a red 'Reverse Polarity' LED, backlit circuit label positions, and 'ON' indicating LEDs for instant visual diagnostics.
• Durable Construction: Built with nickel-plated brass and phenolic for non-corrosive performance in harsh marine environments.
• Compact Design: Dimensions of 5.25" H x 7.50" W x 3.50" D (133.35mm H x 190.5mm W x 88.9mm D) for versatile installation.
• Optimal Voltage: Operates at 120V AC nominal voltage, suitable for common marine shore power systems.
