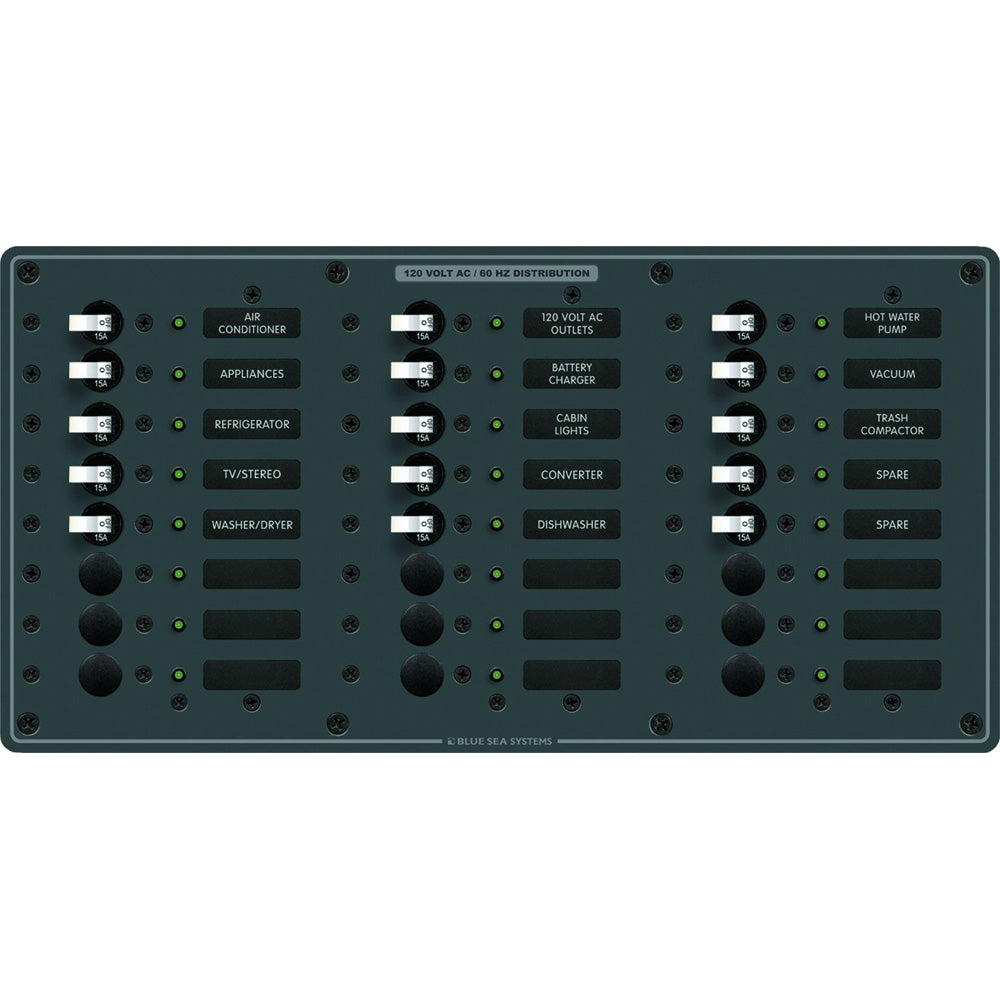

Blue Sea Systems Traditional Metal AC Panel, 24 Position, 100 Amp

Streamline your vessel's electrical system with the Blue Sea Systems Traditional Metal AC Panel. Designed for robust AC power distribution and protection, this 24-position panel offers reliable performance and easy monitoring in demanding marine environments. Ensure safe and efficient power management for your vessel.

In the Box:

• Blue Sea Systems 8265 Traditional Metal AC Panel
• (15) 15A A-Series White Toggle Circuit Breakers
• Basic AC Panel Label Set - 30 Labels
• LED - 120V AC Green
• Detailed installation instructions and cutout template

Key Benefits:

• Ample Circuit Management: Features 24 positions to accommodate a comprehensive range of circuits.
• High Power Capacity: Rated for a maximum of 100 Amperes per bus, safely handling substantial electrical loads.
• Simplified Installation: Comes pre-wired with integrated hot, neutral, and safety ground buses.
• Enhanced Visibility: Backlit circuit label positions and "ON" indicating LEDs ensure clear status indication, even in low light conditions.
• Durable Marine Construction: Built from heavy 1/8" aluminum 5052 alloy with MIL-C5541C immersion undercoating for lifetime corrosion resistance.
• Corrosion Protection: Features a two-part polyurethane slate gray finish designed to withstand harsh marine conditions.
• User-Friendly Labeling: Includes a set of 30 common large format labels for clear circuit identification.

Specifications:

• Positions: 24
• Nominal Voltage: 120V AC
• Maximum Amperage: 100A per bus
• Included Circuit Breakers: 15 x 15A Single Pole
• Material: 1/8" Aluminum 5052 Alloy
• Finish: Two-part polyurethane slate gray
• Dimensions: 14.75" W x 7.50" H x 2.50" D
• Country of Origin: United States
