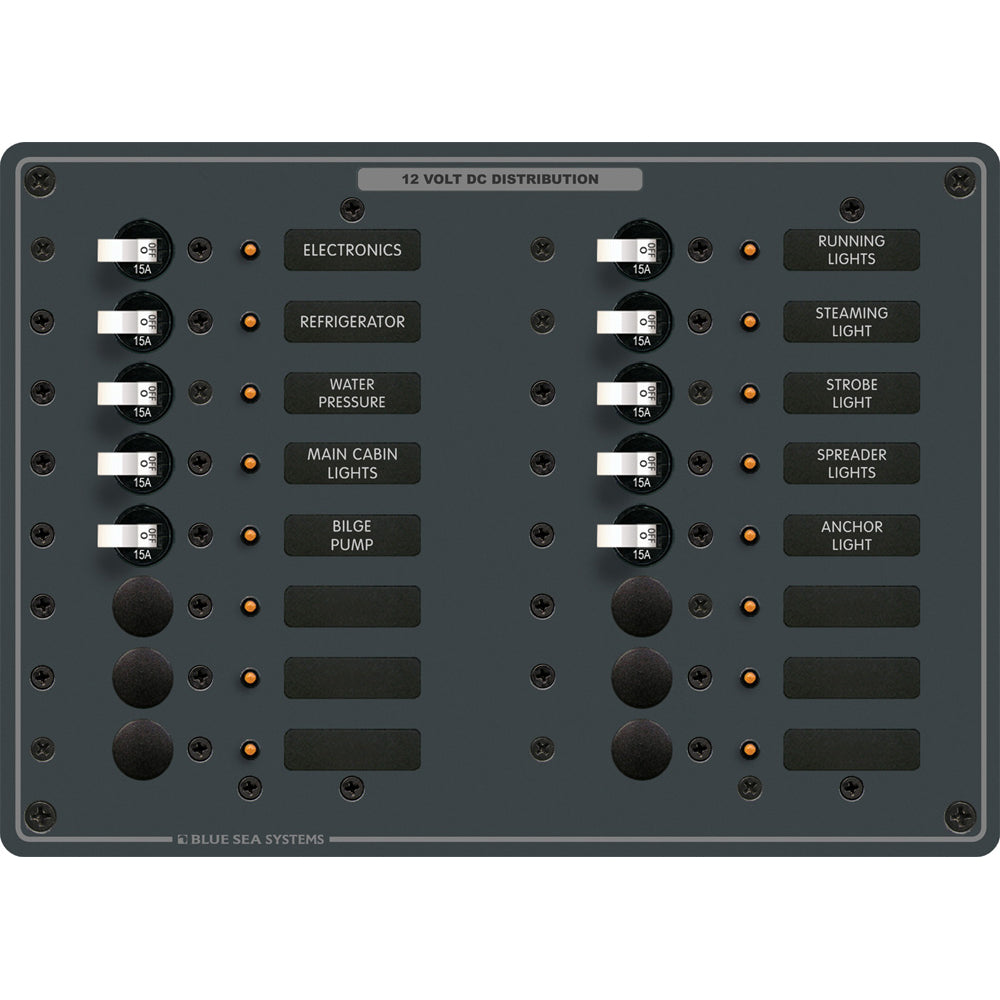

Blue Sea Systems 16-Position DC Branch Circuit Breaker Panel, 12/24V 100A

Command your vessel's electrical systems with the Blue Sea Systems 16-Position DC Branch Circuit Breaker Panel. Engineered for marine environments, this robust panel efficiently distributes current from a high-amperage input to multiple lower-amperage circuits, ensuring reliable power management and protection for up to 16 DC circuits. Constructed from heavy-duty, corrosion-resistant materials, it offers exceptional durability and easy installation. Upgrade your boat's power distribution with confidence.

In the Box:

• Blue Sea Systems 8377 DC Panel
• (10) 15A Single Pole Circuit Breakers
• White Switches
• Set of 30 Common Large Format Panel Labels
• Detailed Installation Instructions and Cutout Template

Key Features & Benefits:

• Comprehensive Circuit Protection: Supports up to 16 circuit breakers to manage and protect numerous DC electrical systems.
• Wide Voltage Compatibility: Rated for 12/24V DC power, making it versatile for most marine electrical setups.
• High Amperage Capacity: Features a maximum operating amperage of 100A per bus for demanding applications.
• Marine-Grade Durability: Constructed from heavy 1/8" aluminum 5052 alloy with a two-part polyurethane slate gray finish for long-lasting performance in harsh conditions.
• Superior Corrosion Resistance: Includes MIL-C-5541C or equivalent immersion undercoating for lifetime protection against corrosion.
• Simplified Installation: Comes fully pre-wired with all positive, negative, and grounding buses installed, and includes tin-plated copper bus bars for high conductivity.
• Clear Status Indicators: "ON" indicating LEDs and backlit label positions ensure easy circuit identification and status monitoring, even in low-light environments.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
